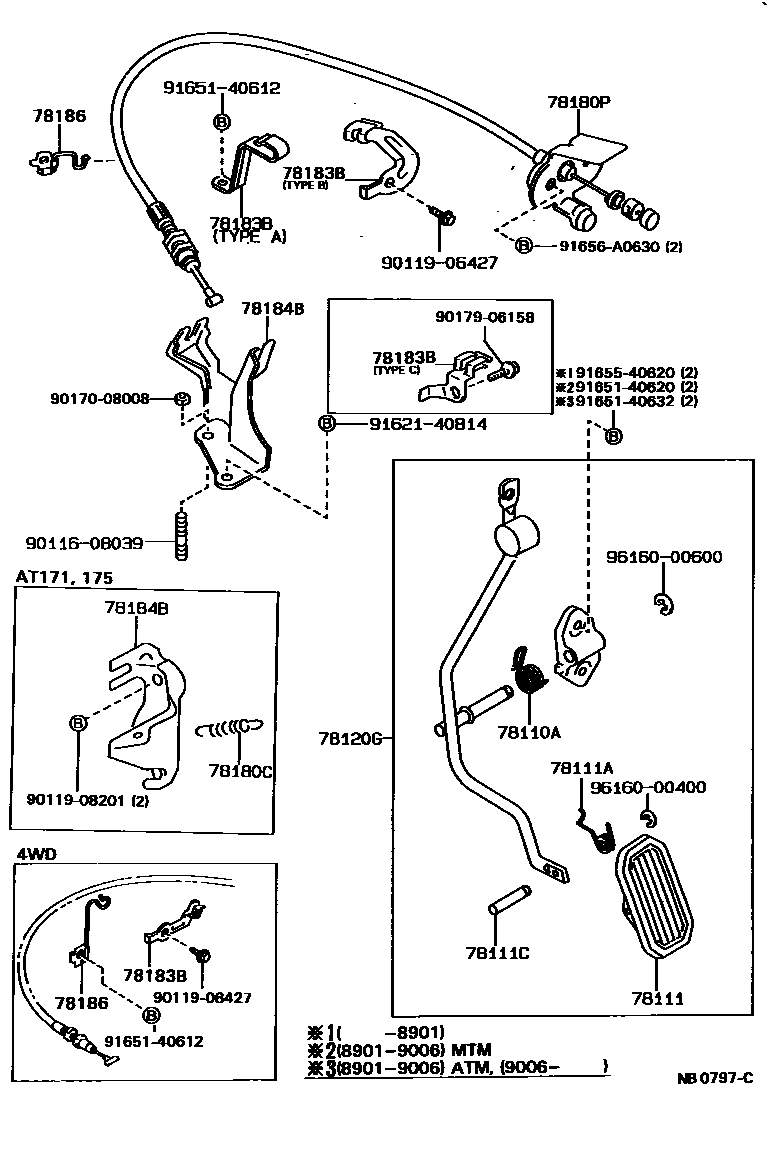

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18048iAT17#,CT17#,ET176,ST170..ATM198805-199211

main90508-18050iAT17#,CT17#,ET176..MTM198811-199211

main90508-18050iST170..5F..(SE,SX)198805-198811

main90508-26054iAT17#,CT17#..MTM198805-199211

78111PEDAL, ACCELERATOR

main78111-20030iAT17#,CT17#,ET176,ST170..MTM198805-199211

main78111-32010iAT17#,CT17#,ET176,ST170..ATM198805-199211

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18048iST170..5F..(SE,SX)198805-198811

main90508-18048iCT17#,ET176,ST170..MTM198811-199211

main90508-18050iST170;AT17#,CT17#,ET176..ATM198805-199211

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAT17#,CT17#,ET176,ST170198805-199211

78120GROD ASSY, ACCELERATOR PEDAL

main78120-20190iCT17#..4FC198805-199211

main78120-20250iST170..4FC..(SE,SX)198805-198811

sub78120-20400

main78120-20300iST170..5F198805-199211

main78120-20310iST170..5F..(SE,SX)198805-198811

main78120-20310iET176,ST170..MTM198811-199211

main78120-20400iAT170,175,ET176,ST170..ATM198811-199211

main78120-20490iAT17#..MTM199005-199211

78180CSPRING, TENSION (FOR ACCELERATOR WIRE)

main90507-10016iAT171..GLIM198805-199208

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-20560iAT171..GLIM198805-199208

main78180-2B030iST170199005-199211

main78180-2B060iST170198805-199005

main78180-2B110iET176198805-198911

main78180-2B111iET176198911-198912

main78180-2B112iET176198912-199211

main78180-2B210iCT17#..5F198805-198912

main78180-2B211iCT17#..5F199001-199211

main78180-2B230iCT17#198805-199211

main78180-2B270iAT170198805-199005

main78180-2B340iAT17#..(DX,S,SE,SG,SGEXT,SV)..(EFI,EFIS)198805-199211

main78180-2B370iST170..SE,SX198805-199211

main78180-2B620iCT17#..5F199001-199211

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-12080iAT171..GLIM198805-199208

main78183-12140iAT170198805-199005

main78183-20100iCT170..5F;AT170,175,CT176198805-198908

sub78183-20101

main78183-20101iAT175198908-199208

main78183-20110iET176198805-198911

main78183-20111iET176198911-199211

main78183-20120iCT17#..5F;AT170,171,ST170198805-199211

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-10070iET176198805-198910

main78184-12220iAT171..GLIM198805-199208

main78184-12230iAT170198805-199005

main78184-12240iAT171,175..S,SE,SG,SGEXT198805-199208

main78184-12260iAT170199005-199211

main78184-20160iST170198805-199005

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12200iET176198911-199211

main78186-12220iAT171..S198805-198808

main78186-12260iAT170199005-199211

main78186-20100iST170..SE,SX198805-199005

main78186-20110iET176198805-198911

main78186-20120iAT171,175..S,SE,SG,SGEXT198808-199208

main78186-32040iST170199005-199211

9011608039

main90116-08039

9011906427

main90119-06427

9011908201

main90119-08201

9017008008

main90170-08008

9017906158

main90179-06158

9162140814

main91621-40814

9165140612

main91651-40612

9165140620

main91651-40620

9165140632

main91651-40632

9165540620

main91655-40620

91656A0630

main91656-A0630

9616000400

main96160-00400

9616000600

main96160-00600

23 parts on this diagram · 4 diagrams in section
