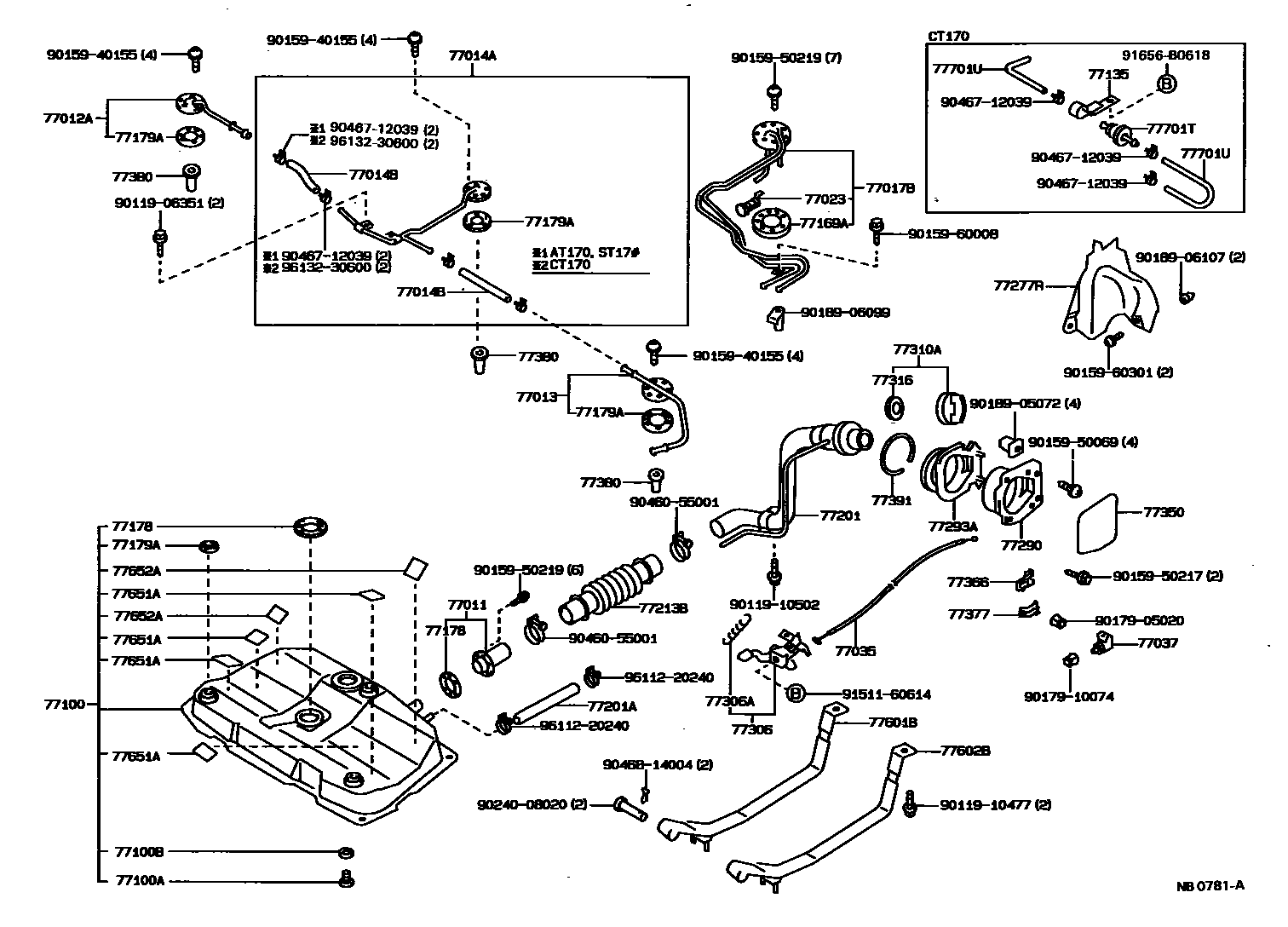

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1 0010 1

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-13020iCT176,ET176198805-199211

sub77011-13040

main77011-20020iAT170,171,CT170,ST170198805-199211

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-12030iCT176,ET176198805-199211

main77012-32020iAT170,171,CT170,ST170198805-199211

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77012-32020iCT170198805-199211

main77013-20060iST170..4FC..SE198805-199211

77014ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.3

main77014-20050iAT171,ST170..5F..(GLIM,SE)198805-199211

main77014-32020iCT170198911-199211

77014BHOSE, FUEL (FOR FUEL TANK BREATHER TUBE)

main95333-06010iAT170,171,CT170,ST170198805-199211

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-20100iAT170198805-198808

main77017-20101iAT170198808-199005

main77017-20110iCT170198805-198808

main77017-20111iCT170198808-199211

main77017-95500iCT176198805-199211

main77017-95501iET176198805-199211

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iAT170198805-199005

main77023-14030iET176198805-199211

main77023-32010iCT17#198805-199211

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-20180iAT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT198805-198904

main77035-20290iAT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT198904-199208

main77035-95505iCT176,ET176..SG;AT170,CT170,ST170..DX,SV,SX198805-199211

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-20040iCT176,ET176..SG;AT17#,CT170,ST170198805-199211

77100TANK ASSY, FUEL

main77001-21900iET176198805-199211

main77001-39215iAT17#,CT170,ST170198805-198808

sub23206-74341

sub23206-74371

sub23206-74460

sub23206-74480

sub77001-39285

sub77001-39295

sub77017-20101

sub77017-20111

sub77017-32041

sub77017-32061

main77001-39265iAT175198808-199208

sub77001-39275

main77001-39285iST170..SGEXT,SX;AT170,171..DX,S,SE,SG,SV198911-199005

sub77001-39425

main77001-39285iAT171..4FC..GLIM198911-199005

sub77001-39425

main77001-39285iAT171..4FC..EFI198808-199208

sub77001-39425

main77001-39285iCT170198808-199211

sub77001-39425

main77001-39285iST170..SGEXT,SX;AT170,171..DX,S,SE,SG,SGEXT,SV198808-199211

sub77001-39425

main77001-39295iAT170,171,ST170198808-199211

sub77001-39285

main77001-95900iCT176198805-199211

77100APLUG(FOR FUEL TANK)

main90341-20004iAT171,ST170..5F..(GLIM,SE)198805-199211

77100BGASKET(FOR FUEL TANK)

main90430-20007iAT171..4FC..GLIM198805-199211

77135BRACKET, CHECK VALVE

main77135-20050iCT176198805-199211

main77135-20060iCT170198805-199211

77169AGASKET, FUEL SUCTION TUBE SET

main77169-12020iCT176,ET176198805-199211

main77169-14010iAT175;AT170,CT170..CBR,DSL198805-199211

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-12010iCT176,ET176198805-198902

main77178-20010iAT170,171,CT17#,ET176,ST170198805-199211

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-16010iCT176,ET176198805-199211

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-20310iAT170,171,CT170,ST170198805-199211

main77201-32110iAT175198808-199208

main77201-95502iCT176,ET176198805-199211

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77259-13030iCT176,ET176198805-199211

main90445-22030iAT170,171,CT170,ST170198805-199211

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-13060iCT176,ET176198805-199211

main77213-32010iAT170,171,CT170,ST170198805-199211

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-20150iAT170,171,CT170,ST170198805-199211

main77277-20170iAT175198808-199208

sub77277-32030

main77277-95500iCT176,ET176198805-199211

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-20090iCT176,ET176..SG;AT17#,CT170,ST170198805-199211

main77290-20100iCT176,ET176..DX,STD198805-199211

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-20031iCT176,ET176..SG;AT17#,CT170,ST170198805-199211

main77293-20041iCT176,ET176..DX,STD198805-199211

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-14010iCT176,ET176..SG;AT170,CT170,ST170..DX,SV,SX198805-199211

77306ASPRING, FUEL LID OPEN LEVER

main90506-09004iCT176,ET176..SG;AT170,CT170,ST170..DX,SV,SX198805-199211

77310ACAP ASSY, FUEL TANK

main77310-12100iAT17#,ET176,ST170198805-199211

main77310-35061iCT17#198805-199211

77316GASKET, FUEL TANK CAP

main77316-12050iAT17#,CT17#,ET176,ST170198805-199211

77350LID ASSY, FUEL FILLER OPENING

main77350-20140iCT176,ET176..SG;AT17#,CT170,ST170198805-199211

main77350-20150iCT176,ET176..DX,STD198805-199211

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-20030iAT17#,CT17#,ET176,ST170198805-199211

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20040iCT176,ET176..SG;AT17#,CT170,ST170198805-199211

77380VALVE ASSY, FUEL CUT OFF

main77380-14020iAT175,CT176,ET176198805-199211

77391RING, FUEL INLET BOX

main77391-16011iAT17#,CT17#,ET176,ST170198805-199211

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-32050iAT170,171,CT170,ST170198805-199211

sub77601-32040

main77601-32060iAT175198808-199208

main77601-95500iCT176,ET176198805-199211

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-32040iAT170,171,CT170,ST170198805-199211

sub77602-32030

main77602-32050iAT175198808-199208

main77602-95500iCT176,ET176198805-199211

77651ACUSHION, FUEL TANK, NO.1

main77651-32050iAT170,171,CT170,ST170198805-199211

main77651-32060iAT175198808-199208

77652ACUSHION, FUEL TANK, NO.2

main77652-16060iCT176,ET176198805-199211

main77652-32030iAT170,171,CT170,ST170198805-199211

main77652-32050iAT175198808-199208

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10069iCT17#198805-199211

sub90917-10082

77701UHOSE, FUEL (FOR CHECK VALVE)

main77249-12050iCT176198805-199005

main95333-06030iCT170198805-199211

sub95338-06030

9011906351

main90119-06351

9011910477

main90119-10477

9011910502

main90119-10502

9015940155

main90159-40155

9015950069

main90159-50069

9015950217

main90159-50217

9015950219

main90159-50219

9015960008

main90159-60008

9015960301

main90159-60301

9017905020

main90179-05020

9017910074

main90179-10074

9018905072

main90189-05072

9018906099

main90189-06099

9018906107

main90189-06107

9024008020

main90240-08020

9046055001

main90460-55001

9046712039

main90467-12039

9046814004

main90468-14004

9151160614

main91511-60614

91656B0618

main91656-B0618

9611220240

main96112-20240

9613230600

main96132-30600

59 parts on this diagram · 9 diagrams in section
