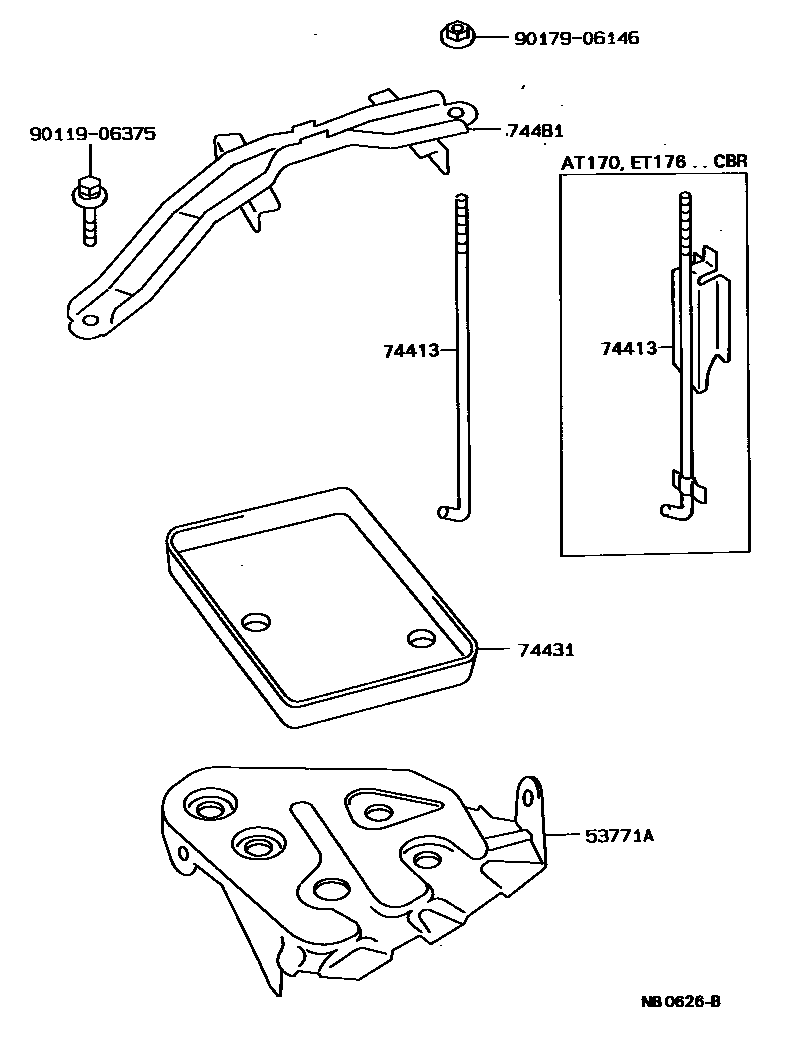

BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53771-20040iAT17#,CT17#,ET176,ST170198805-199211

74413BOLT, BATTERY CLAMP

main74407-20060iAT170,ET176..CBR198805-199211

main74451-14010iCT17#..4FC198805-199211

main74451-30060iCT17#..5F;AT17#,ST170..CI,EFI,EFIS198805-199211

74431TRAY, BATTERY

main74431-14010iAT17#,ET176,ST170..MTM198805-199211

sub74431-14050

main74431-14020iAT171..5F..GLIM198805-199208

main74431-14020iAT171,ST170..5F..(S,SGEXT,SX);AT170,ET176,ST170..MTM..(DX,SE,SG,STD,SV)..(CBR,CI)198805-199211

main74431-14020iAT171,ET176,ST170..ATM..(CBR,EFI)199005-199211

main74431-20010iCT17#..5F198805-199211

sub74431-26010

main74431-20020iCT17#..5F198805-199211

sub74431-35040

main74431-20040iAT17#..4FC..(DX,S,SE,SG,SGEXT,SV)..(EFI,EFIS)198805-199211

main74431-20040iAT170,175..MTM..EFI198808-199211

74481CLAMP, BATTERY HOLD DOWN

main74404-20250iAT17#,ST170..MTM..(CI,EFI,EFIS)198805-199211

main74404-20260iAT171,ST170..5F..(GLIM,SE)198805-199208

main74404-20260iST170..5F..SE..CI;AT171,ST170..5F..(S,SGEXT,SX)198805-199211

main74404-20270iCT17#..5F198805-199211

main74404-20280iCT17#..4FC198805-199211

main74404-20290iAT170,ET176..CBR198805-199211

main74404-20360iAT17#..4FC..(DX,S,SE,SG,SGEXT,SV)..(EFI,EFIS)198805-199211

main74404-20360iAT170,175..MTM..EFI198808-199211

9011906375

main90119-06375

9017906146

main90179-06146

6 parts on this diagram · 1 diagram in section
