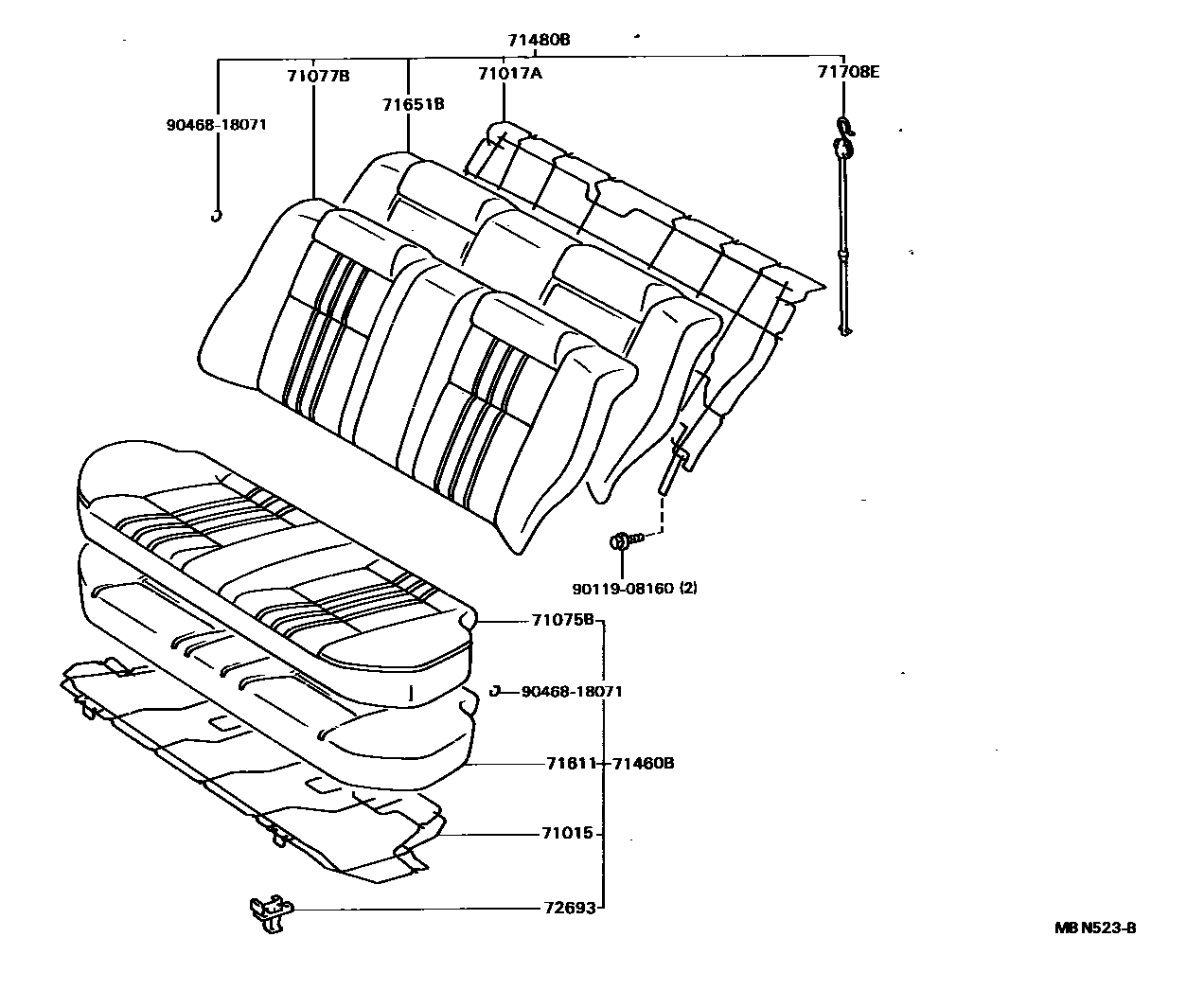

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1

71015FRAME SUB-ASSY, REAR SEAT CUSHION

main71015-20290iAT170,171,CT170,ST170..DX,GLIM,S,SG,SGEXT; AT170,CT170..SE; ST170..SE198905-198908

main71015-20300iAT175198808-199208

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-13070iCT176,ET176198805-199005

main71017-20310iAT170,CT170,ST170..WG198805-199211

main71017-20390iAT171..GLIM; ST170..SE198805-199005

main71017-20391iAT171..EFIS199101-199208

71017AFRAME SUB-ASSY, REAR SEATBACK

main71017-13070iCT176,ET176199005-199211

main71017-20340iAT170,CT170,ST170..SE198905-198908

main71017-20380iAT175;AT170,171,CT170,ST170..DX,S,SG,SGEXT198805-199208

main71017-20410iAT175..SE199106-199208

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-20790-03iAT175..SGEXT198812-199005

main71065-20790-06iAT175..SGEXT198812-199005

main71065-2B180-B0iCT170..SG;AT170,ST170..SGEXT199204-199208

main71065-2B180-E0iCT170..SG;AT170,ST170..SGEXT199204-199208

main71065-95R00-03iCT176,ET176..DX198805-199005

GRAY,TRIM1#

main71065-95R00-06iCT176,ET176..DX198805-199005

SABLE,TRIM4#

main71065-95R01-03iCT176,ET176..SG198805-199005

GRAY,TRIM1#

main71065-95R01-06iCT176,ET176..SG198805-199005

SABLE,TRIM4#

main71065-95R02-03iET176..STD198805-199211

GRAY,TRIM1#

main71075-21180-03iCT176,ET176..DX199005-199211

GRAY,TRIM1#

main71075-21190-03iCT176,ET176..SG199005-199211

GRAY,TRIM1#

main71075-2B120-03iST170..SGEXT198903-199005

main71075-2B120-06iST170..SGEXT198903-199005

main71075-2B140-03iAT170,CT170,ST170..SG,SGEXT198903-199005

main71075-2B140-06iAT170,CT170,ST170..SG,SGEXT198903-199005

main71075-2B200-03iAT170..DX198805-199005

GRAY,TRIM1#

main71075-2B201-03iAT170..DX199005-199208

GRAY,TRIM1#

main71075-2B210-03iAT170..4F..DX198805-199005

main71075-2B220-03iAT170,CT170..SG198805-199005

GRAY,TRIM1#

main71075-2B220-04iAT170,CT170..SG198805-199005

BLUE,TRIM8#

main71075-2B220-06iAT170,CT170..SG198805-199005

SABLE,TRIM4#

main71075-2B221-03iAT170,CT170..SG199005-199208

GRAY,TRIM1#

main71075-2B221-04iAT170,CT170..SG199005-199208

BLUE,TRIM8#

main71075-2B221-06iAT170,CT170..SG199005-199208

SABLE,TRIM4#

main71075-2B230-03iAT170..SG; ST170..SGEXT198805-199005

main71075-2B230-04iAT170..SG; ST170..SGEXT198805-199005

main71075-2B230-06iAT170..SG; ST170..SGEXT198805-199005

main71075-2B231-03iAT170,ST170..SGEXT199005-199208

GRAY,TRIM1#

main71075-2B231-04iCT170..SG199012-199204

main71075-2B231-06iCT170..SG199012-199204

main71075-2B240-03iAT171..S198805-199005

GRAY,TRIM1#

main71075-2B240-04iAT171..S198805-199005

BLUE,TRIM8#

main71075-2B240-06iAT171..S198805-199005

SABLE,TRIM4#

main71075-2B241-03iAT171..EFIS199005-199208

GRAY,TRIM1#

main71075-2B241-04iAT171..EFIS199005-199208

BLUE,TRIM8#

main71075-2B241-06iAT171..EFIS199005-199208

SABLE,TRIM4#

main71075-2B250-03iAT170,CT170..SE; ST170..SE198905-198908

main71075-2B250-04iAT170,CT170..SE; ST170..SE198905-198908

main71075-2B250-06iAT170,CT170..SE; ST170..SE198905-198908

main71075-2B260-03iAT171..GLIM198805-199005

GRAY,TRIM1#

main71075-2B260-06iAT171..GLIM198805-199005

SABLE,TRIM4#

main71075-2B261-03iAT171..EFI199005-199208

GRAY,TRIM1#

main71075-2B270-03iAT170..(4FC,5F)..SG198805-199005

main71075-2B270-04iAT170..(4FC,5F)..SG198805-199005

main71075-2B270-06iAT170..(4FC,5F)..SG198805-199005

main71075-2B271-03iAT170..(4FC,5F)..SGEXT199005-199208

main71075-2B271-04iAT170..(4FC,5F)..SGEXT199005-199208

main71075-2B271-06iAT170..(4FC,5F)..SGEXT199005-199208

main71075-2B370-03iAT175..SGEXT198808-199005

GRAY,TRIM1#

main71075-2B370-04iAT175..SGEXT198808-199005

BLUE,TRIM8#

main71075-2B370-06iAT175..SGEXT198808-199005

SABLE,TRIM4#

main71075-2B371-03iAT175..SGEXT199005-199208

GRAY,TRIM1#

main71075-2B371-04iAT175..SGEXT199005-199208

BLUE,TRIM8#

main71075-2B371-06iAT175..SGEXT199005-199208

SABLE,TRIM4#

main71075-2B410-03iAT175..SG198808-199005

GRAY,TRIM1#

main71075-2B410-04iAT175..SG198808-199005

BLUE,TRIM8#

main71075-2B410-06iAT175..SG198808-199005

SABLE,TRIM4#

main71075-2B411-03iAT175..SG199005-199208

GRAY,TRIM1#

main71075-2B411-04iAT175..SG199005-199208

BLUE,TRIM8#

main71075-2B411-06iAT175..SG199005-199208

SABLE,TRIM4#

main71075-2B530-03iAT170,CT170,ST170..SE199005-199208

GRAY,TRIM1#

main71075-2B530-04iAT170,CT170,ST170..SE199005-199208

BLUE,TRIM8#

main71075-2B530-06iAT170,CT170,ST170..SE199005-199208

SABLE,TRIM4#

main71075-2B550-03iAT175..SE199005-199208

GRAY,TRIM1#

main71075-2B550-04iAT175..SE199005-199208

BLUE,TRIM8#

main71075-2B550-06iAT175..SE199005-199208

SABLE,TRIM4#

main71075-2B650-03iAT170,CT170,ST170..SE198908-199005

GRAY,TRIM1#

main71075-2B650-04iAT170,CT170,ST170..SE198908-199005

BLUE,TRIM8#

main71075-2B650-06iAT170,CT170,ST170..SE198908-199005

SABLE,TRIM4#

main71075-2B651-03iST170..SE199005-199208

main71075-2B651-04iST170..SE199005-199208

main71075-2B651-06iST170..SE199005-199208

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-21170-03iCT176,ET176..DX199005-199211

GRAY,TRIM1#

main71077-21180-03iCT176,ET176..SG199005-199211

GRAY,TRIM1#

main71077-2B810-03iAT171..S198805-199005

GRAY,TRIM1#

main71077-2B810-04iAT171..S198805-199005

BLUE,TRIM8#

main71077-2B810-06iAT171..S198805-199005

SABLE,TRIM4#

main71077-2B811-03iAT171..EFIS199005-199208

GRAY,TRIM1#

main71077-2B811-04iAT171..EFIS199005-199208

BLUE,TRIM8#

main71077-2B811-06iAT171..EFIS199005-199208

SABLE,TRIM4#

main71077-2D230-03iAT170,CT170,ST170..SG,SGEXT198903-199005

main71077-2D230-06iAT170,CT170,ST170..SG,SGEXT198903-199005

main71077-2D240-03iAT170..DX198805-199005

GRAY,TRIM1#

main71077-2D241-03iAT170..DX199005-199208

GRAY,TRIM1#

main71077-2D250-03iAT170..4F..DX198805-199005

main71077-2D260-03iAT170,175,CT170..SG198805-199005

GRAY,TRIM1#

main71077-2D260-04iAT170,175,CT170..SG198805-199005

BLUE,TRIM8#

main71077-2D260-06iAT170,175,CT170..SG198805-199005

SABLE,TRIM4#

main71077-2D261-03iAT170,175,CT170..SG199005-199208

GRAY,TRIM1#

main71077-2D261-04iAT170,175,CT170..SG199005-199208

BLUE,TRIM8#

main71077-2D261-06iAT170,175,CT170..SG199005-199208

SABLE,TRIM4#

main71077-2D270-03iAT170..SG; AT175,ST170..SGEXT198805-199005

main71077-2D270-04iAT170..SG; AT175,ST170..SGEXT198805-199005

main71077-2D270-06iAT170..SG; AT175,ST170..SGEXT198805-199005

main71077-2D271-03iCT170..SG199012-199204

main71077-2D271-04iAT170,175,ST170..SGEXT199005-199208

BLUE,TRIM8#

main71077-2D271-06iCT170..SG199012-199204

main71077-2D290-03iAT170,CT170,ST170..SE198805-198908

main71077-2D290-04iAT170,CT170,ST170..SE198805-198908

main71077-2D290-06iAT170,CT170,ST170..SE198805-198908

main71077-2D320-03iAT170..(4FC,5F)..SG198805-199005

main71077-2D320-04iAT170..(4FC,5F)..SG198805-199005

main71077-2D320-06iAT175..SGEXT198812-199005

main71077-2D321-03iAT170..(4FC,5F)..SGEXT199005-199208

main71077-2D321-04iAT170..(4FC,5F)..SGEXT199005-199208

main71077-2D321-06iAT170..(4FC,5F)..SGEXT199005-199208

main71077-2D340-03iST170..SGEXT198903-199005

main71077-2D340-06iST170..SGEXT198903-199005

main71077-2D650-03iAT170,CT170,ST170..SE198908-199005

GRAY,TRIM1#

main71077-2D650-04iAT170,CT170,ST170..SE198908-199005

BLUE,TRIM8#

main71077-2D650-06iAT170,CT170,ST170..SE198908-199005

SABLE,TRIM4#

main71077-2D651-03iAT175..SE199005-199208

GRAY,TRIM1#

main71077-2D651-04iAT175..SE199005-199208

BLUE,TRIM8#

main71077-2D651-06iAT175..SE199005-199208

SABLE,TRIM4#

main71077-2D860-B0iAT175..SE199106-199208

main71077-2D860-E0iAT175..SE199106-199208

main71077-2D860-J0iAT175..SE199106-199208

main71077-2G110-B0iCT170..SG;AT170,ST170..SGEXT199204-199208

main71077-2G110-E0iCT170..SG;AT170,ST170..SGEXT199204-199208

main71077-95R02-03iCT176,ET176..DX198805-199005

GRAY,TRIM1#

main71077-95R02-06iCT176,ET176..DX198805-199005

SABLE,TRIM4#

main71077-95R03-03iCT176,ET176..SG198805-199005

GRAY,TRIM1#

main71077-95R03-06iCT176,ET176..SG198805-199005

SABLE,TRIM4#

main71077-95R04-03iET176..STD198805-199211

GRAY,TRIM1#

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-21230-03iCT176,ET176..DX199005-199211

***,GRAY,TRIM1#

main71460-21240-03iCT176,ET176..SG199005-199211

***,GRAY,TRIM1#

main71460-2B200-03iAT170..DX198805-199005

***,GRAY,TRIM1#

main71460-2B201-03iAT170..DX199005-199208

***,GRAY,TRIM1#

main71460-2B210-03iAT170..4F..DX198805-199005

main71460-2B220-03iAT170,CT170..SG198805-199005

***,GRAY,TRIM1#

main71460-2B220-04iAT170,CT170..SG198805-199005

***,BLUE,TRIM8#

main71460-2B220-06iAT170,CT170..SG198805-199005

***,SABLE,TRIM4#

main71460-2B221-03iAT170,CT170..SG199005-199208

***,GRAY,TRIM1#

main71460-2B221-04iAT170,CT170..SG199005-199208

***,BLUE,TRIM8#

main71460-2B221-06iAT170,CT170..SG199005-199208

***,SABLE,TRIM4#

main71460-2B230-03iAT170..SG; ST170..SGEXT198805-199005

main71460-2B230-04iAT170..SG; ST170..SGEXT198805-199005

main71460-2B230-06iAT170..SG; ST170..SGEXT198805-199005

main71460-2B231-03iAT170,ST170..SGEXT199005-199208

***,GRAY,TRIM1#

main71460-2B231-04iCT170..SG199012-199204

main71460-2B231-06iCT170..SG199012-199204

main71460-2B240-03iAT171..S198805-199005

***,GRAY,TRIM1#

main71460-2B240-04iAT171..S198805-199005

***,BLUE,TRIM8#

main71460-2B240-06iAT171..S198805-199005

***,SABLE,TRIM4#

main71460-2B241-03iAT171..EFIS199005-199208

***,GRAY,TRIM1#

main71460-2B241-04iAT171..EFIS199005-199208

***,BLUE,TRIM8#

main71460-2B241-06iAT171..EFIS199005-199208

***,SABLE,TRIM4#

main71460-2B250-03iAT170,CT170..SE; ST170..SE198905-198908

main71460-2B250-04iAT170,CT170..SE; ST170..SE198905-198908

main71460-2B250-06iAT170,CT170..SE; ST170..SE198905-198908

main71460-2B260-03iAT171..GLIM198805-199005

***,GRAY,TRIM1#

main71460-2B260-06iAT171..GLIM198805-199005

***,SABLE,TRIM4#

main71460-2B261-03iAT171..EFI199005-199208

***,GRAY,TRIM1#

main71460-2B270-03iAT170..(4FC,5F)..SG198805-199005

main71460-2B270-04iAT170..(4FC,5F)..SG198805-199005

main71460-2B270-06iAT170..(4FC,5F)..SG198805-199005

main71460-2B271-03iAT170..(4FC,5F)..SGEXT199005-199208

main71460-2B271-04iAT170..(4FC,5F)..SGEXT199005-199208

main71460-2B271-06iAT170..(4FC,5F)..SGEXT199005-199208

main71460-2B290-03iST170..SGEXT198903-199005

main71460-2B290-06iST170..SGEXT198903-199005

main71460-2B340-03iAT175..SGEXT198808-199005

***,GRAY,TRIM1#

main71460-2B340-04iAT175..SGEXT198808-199005

***,BLUE,TRIM8#

main71460-2B340-06iAT175..SGEXT198808-199005

***,SABLE,TRIM4#

main71460-2B341-03iAT175..SGEXT199005-199208

***,GRAY,TRIM1#

main71460-2B341-04iAT175..SGEXT199005-199208

***,BLUE,TRIM8#

main71460-2B341-06iAT175..SGEXT199005-199208

***,SABLE,TRIM4#

main71460-2B370-03iAT175..SG198808-199005

***,GRAY,TRIM1#

main71460-2B370-04iAT175..SG198808-199005

***,BLUE,TRIM8#

main71460-2B370-06iAT175..SG198808-199005

***,SABLE,TRIM4#

main71460-2B371-03iAT175..SG199005-199208

***,GRAY,TRIM1#

main71460-2B371-04iAT175..SG199005-199208

***,BLUE,TRIM8#

main71460-2B371-06iAT175..SG199005-199208

***,SABLE,TRIM4#

main71460-2B470-03iAT170,CT170,ST170..SE199005-199208

***,GRAY,TRIM1#

main71460-2B470-04iAT170,CT170,ST170..SE199005-199208

***,BLUE,TRIM8#

main71460-2B470-06iAT170,CT170,ST170..SE199005-199208

***,SABLE,TRIM4#

main71460-2B800-03iAT170,CT170,ST170..SE198908-199005

***,GRAY,TRIM1#

main71460-2B800-04iAT170,CT170,ST170..SE198908-199005

***,BLUE,TRIM8#

main71460-2B800-06iAT170,CT170,ST170..SE198908-199005

***,SABLE,TRIM4#

main71460-2B801-03iST170..SE199005-199208

main71460-2B801-04iST170..SE199005-199208

main71460-2B801-06iST170..SE199005-199208

main71560-20620-03iAT170,CT170,ST170..SG,SGEXT198905-199005

main71560-20620-06iAT170,CT170,ST170..SG,SGEXT198903-199005

main71560-20860-03iAT175..SGEXT198812-199005

main71560-20860-06iAT175..SGEXT198812-199005

main71560-2B040-03iAT175..SE199005-199208

***,GRAY,TRIM1#

main71560-2B040-04iAT175..SE199005-199208

***,BLUE,TRIM8#

main71560-2B040-06iAT175..SE199005-199208

***,SABLE,TRIM4#

main71560-2B340-B0iCT170..SG;AT170,ST170..SGEXT199204-199208

main71560-2B340-E0iCT170..SG;AT170,ST170..SGEXT199204-199208

main71560-95R00-03iCT176,ET176..DX198805-198906

***,GRAY,TRIM1#

main71560-95R00-06iCT176,ET176..DX198805-198906

***,SABLE,TRIM4#

main71560-95R01-03iCT176,ET176..SG198805-198906

***,GRAY,TRIM1#

main71560-95R01-06iCT176,ET176..SG198805-198906

***,SABLE,TRIM4#

main71560-95R02-03iET176..STD198805-198906

***,GRAY,TRIM1#

main71560-95R05-03iET176..STD198906-199211

***,GRAY,TRIM1#

main71560-95R06-03iCT176,ET176..DX198906-199005

***,GRAY,TRIM1#

main71560-95R06-06iCT176,ET176..DX198906-199005

***,SABLE,TRIM4#

main71560-95R07-03iCT176,ET176..SG198906-199005

***,GRAY,TRIM1#

main71560-95R07-06iCT176,ET176..SG198906-199005

***,SABLE,TRIM4#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-21250-03iCT176,ET176..DX199005-199211

***,GRAY,TRIM1#

main71480-21260-03iCT176,ET176..SG199005-199211

***,GRAY,TRIM1#

main71480-2D270-03iAT170,CT170,ST170..SG,SGEXT198905-199005

main71480-2D270-06iAT170,CT170,ST170..SG,SGEXT198903-199005

main71480-2D310-03iST170..SGEXT198903-199005

main71480-2D310-06iST170..SGEXT198903-199005

main71480-2D360-03iAT171..S198805-199005

***,GRAY,TRIM1#

main71480-2D360-04iAT171..S198805-199005

***,BLUE,TRIM8#

main71480-2D360-06iAT171..S198805-199005

***,SABLE,TRIM4#

main71480-2D361-03iAT171..EFIS199005-199208

***,GRAY,TRIM1#

main71480-2D361-04iAT171..EFIS199005-199208

***,BLUE,TRIM8#

main71480-2D361-06iAT171..EFIS199005-199208

***,SABLE,TRIM4#

main71480-2D370-03iAT170..DX198805-199005

***,GRAY,TRIM1#

main71480-2D371-03iAT170..DX199005-199208

***,GRAY,TRIM1#

main71480-2D380-03iAT170..4F..DX198805-199005

main71480-2D390-03iAT170,175,CT170..SG198805-199005

***,GRAY,TRIM1#

main71480-2D390-04iAT170,175,CT170..SG198805-199005

***,BLUE,TRIM8#

main71480-2D390-06iAT170,175,CT170..SG198805-199005

***,SABLE,TRIM4#

main71480-2D391-03iAT170,175,CT170..SG199005-199208

***,GRAY,TRIM1#

main71480-2D391-04iAT170,175,CT170..SG199005-199208

***,BLUE,TRIM8#

main71480-2D391-06iAT170,175,CT170..SG199005-199208

***,SABLE,TRIM4#

main71480-2D400-03iAT170..SG; AT175,ST170..SGEXT198805-199005

main71480-2D400-04iAT170..SG; AT175,ST170..SGEXT198805-199005

main71480-2D400-06iAT170..SG; AT175,ST170..SGEXT198805-199005

main71480-2D401-03iCT170..SG199012-199204

main71480-2D401-04iCT170..SG199012-199204

main71480-2D401-06iAT170,175,ST170..SGEXT199005-199208

***,SABLE,TRIM4#

main71480-2D420-03iAT170,CT170,ST170..SE198805-198905

***,GRAY,TRIM1#

main71480-2D420-04iAT170,CT170,ST170..SE198805-198905

***,BLUE,TRIM8#

main71480-2D420-06iAT170,CT170,ST170..SE198805-198905

***,SABLE,TRIM4#

main71480-2D450-03iAT175..SGEXT198812-199005

main71480-2D450-04iAT170..(4FC,5F)..SG198805-199005

main71480-2D450-06iAT175..SGEXT198812-199005

main71480-2D451-03iAT170..(4FC,5F)..SGEXT199005-199208

main71480-2D451-04iAT170..(4FC,5F)..SGEXT199005-199208

main71480-2D451-06iAT170..(4FC,5F)..SGEXT199005-199208

main71480-2G110-03iAT170,CT170,ST170..SE198908-199005

***,GRAY,TRIM1#

main71480-2G110-04iAT170,CT170,ST170..SE198908-199005

***,BLUE,TRIM8#

main71480-2G110-06iAT170,CT170,ST170..SE198908-199005

***,SABLE,TRIM4#

main71480-2G111-03iAT175..SE199005-199208

***,GRAY,TRIM1#

main71480-2G111-04iAT175..SE199005-199208

***,BLUE,TRIM8#

main71480-2G111-06iAT175..SE199005-199208

***,SABLE,TRIM4#

main71480-2G300-B0iAT175..SE199106-199208

main71480-2G300-E0iAT175..SE199106-199208

main71480-2G300-J0iAT175..SE199106-199208

main71480-2G480-B0iCT170..SG;AT170,ST170..SGEXT199204-199208

main71480-2G480-E0iCT170..SG;AT170,ST170..SGEXT199204-199208

main71480-95R02-03iCT176,ET176..DX198805-199005

***,GRAY,TRIM1#

main71480-95R02-06iCT176,ET176..DX198805-199005

***,SABLE,TRIM4#

main71480-95R03-03iCT176,ET176..SG198805-199005

***,GRAY,TRIM1#

main71480-95R03-06iCT176,ET176..SG198805-199005

***,SABLE,TRIM4#

main71480-95R04-03iET176..STD198805-199211

***,GRAY,TRIM1#

71611PAD, REAR SEAT CUSHION

main71611-20420iAT170,171,CT170,ST170..DX,GLIM,S,SG,SGEXT198805-199101

main71611-20470iAT170,CT170..SE; ST170..SE198905-198908

main71611-20471iAT170,CT170,ST170..SE199005-199208

main71611-20480iAT175..SG,SGEXT198808-199208

main71611-20530iAT175..SE199005-199208

main71611-20550iAT170,171,CT170,ST170..DX,GLIM,S,SG,SGEXT199101-199208

main71611-95507iCT176,ET176198805-199211

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-20570iAT170,CT170,ST170..SE198905-198908

main71651-20571iAT175..SE199005-199208

main71651-20600iAT170,175,CT170,ST170..DX,SG,SGEXT198805-199208

main71651-20610iAT171..S198805-199208

main71651-20670iAT175..SE199106-199208

main71651-95507iCT176,ET176198805-199211

71708ESTRAP SUB-ASSY, REAR SEAT COVER

main71708-30020×4iAT171,175..S,SE199005-199208

72693HOOK, REAR SEAT CUSHION LOCK

main72693-20010×2iAT17#,CT170,ST170..SED198805-198905

9011908160

main90119-08160

9046818071

main90468-18071

13 parts on this diagram · 5 diagrams in section
