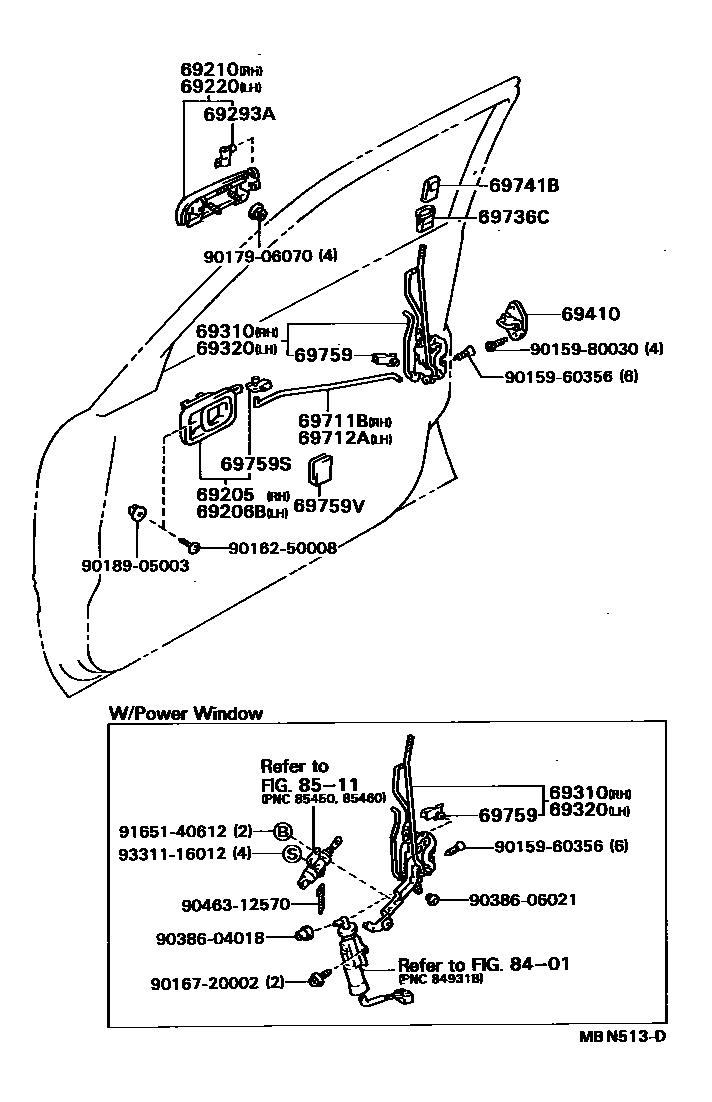

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-20040-03iAT17#,CT17#,ET176,ST170198805-199211

GRAY,TRIM1#

sub69205-20040

main69205-20040-04iAT17#,CT170,ST170..S,SE,SG,SGEXT198805-199005

BLUE,TRIM8#

sub69205-20040

main69205-20040-06iCT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX198805-199211

SABLE,TRIM4#

sub69205-20040

main69205-20040-14iAT17#,CT170,ST170..S,SE,SG,SGEXT199005-199208

DARK BLUE,TRIM8#

sub69205-20040

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-20040-03iAT17#,CT17#,ET176,ST170198805-199211

GRAY,TRIM1#

sub69206-20040

main69206-20040-04iAT17#,CT170,ST170..S,SE,SG,SGEXT198805-199005

BLUE,TRIM8#

sub69206-20040

main69206-20040-06iAT17#,CT170,ST170..S,SE,SG,SGEXT,SX198805-199211

SABLE,TRIM4#

sub69206-20040

main69206-20040-14iAT17#,CT170,ST170..S,SE,SG,SGEXT199005-199208

DARK BLUE,TRIM8#

sub69206-20040

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-20190iAT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SX198805-199211

main69210-20200iAT170,CT17#,ET176..DX,STD,SV198805-199211

main69210-20250iCT170..SG199012-199208

main69210-20250iAT17#,CT170,ST170..GLIM,S,SE,SGEXT,SX199005-199211

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-20190iAT170,175,CT17#,ET176..SG198805-199211

main69220-20200iAT170,CT17#,ET176..DX,STD,SV198805-199211

main69220-20250iCT170..SG199012-199208

main69220-20250iAT17#,CT170,ST170..GLIM,S,SE,SGEXT,SX199005-199211

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iAT17#,CT17#,ET176,ST170198805-199211

main69293-12040iAT17#,CT17#,ET176,ST170198805-199211

69310LOCK ASSY, FRONT DOOR, RH

main69030-20391iAT171,ST170..S,SX199005-199211

main69030-20391iCT170..SG199012-199208

main69030-20391iAT17#,CT170,ST170..GLIM,SE,SGEXT199005-199208

main69310-20540iST170..SGEXT..CI;AT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX198805-199008

sub69310-20541

main69310-20541iAT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX199008-199211

main69310-20550iAT171..S198805-198809

main69310-20551iAT170..(4FC,5F)..SG198809-199005

69320LOCK ASSY, FRONT DOOR, LH

main69040-20390iAT170,175,ST170..SGEXT199005-199208

main69040-20390iAT171,ST170..S,SX199005-199211

main69040-20400iAT17#,CT170,ST170..GLIM,SE199005-199208

main69040-20400iAT170..4F..SGEXT;CT170,ST170..SG,SGEXT199012-199208

main69040-20400iAT170..4F..SGEXT;CT170,ST170..SG,SGEXT199012-199208

main69040-20400iAT170,ST170..(4FC,5F)..SGEXT199010

main69040-20400iAT170..(4FC,5F)..SGEXT199005-199012

main69320-20530iST170..SGEXT..CI;AT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX198805-199008

sub69320-20531

main69320-20531iAT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX199008-199211

main69320-20540iST170..SE;AT17#,CT170..GLIM,SE,SGEXT198805-198809

main69320-20541iAT171..S198809-199005

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20080iAT17#,CT17#,ET176,ST170198805-199211

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-20130iAT17#,CT17#,ET176,ST170198805-199211

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-20130iAT17#,CT17#,ET176,ST170198805-199211

69736CGUIDE, FRONT DOOR LOCKING LINK

main69736-12030iCT176,ET176..SG;AT17#,CT170,ST170198805-199211

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-90K00-03iAT17#,CT17#,ET176,ST170198805-199005

SHADOW GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-34iAT17#,CT170,ST170..S,SE,SG,SGEXT198805-198809

BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-36iAT17#,CT170,ST170..S,SE,SG,SGEXT,SX198805-199211

SABLE,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-43iAT17#,CT17#,ET176,ST170199005-199211

GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-54iAT17#,CT170,ST170..S,SE,SG,SGEXT199005-199208

DARK BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-J0iAT17#,CT170,ST170..S,SE,SG,SGEXT198809-199005

DARK BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24080iAT17#,CT17#,ET176,ST170199005-199211

YELLOW

main69759-24080iAT17#,CT17#,ET176,ST170198805-199005

main69759-24090iAT17#,CT17#,ET176,ST170198805-199005

main69759-24090iAT17#,CT17#,ET176,ST170199005-199211

BROWN

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050iAT17#,CT17#,ET176,ST170198805-199211

main69759-24070iAT17#,CT17#,ET176,ST170198805-199211

69759VSILENCER, FRONT DOOR LOCK LINK

main69759-12011iCT176,ET176..SG;AT17#,CT170,ST170198805-199211

8401

8511

9015960356

main90159-60356

9015980030

main90159-80030

9016250008

main90162-50008

9016720002

main90167-20002

9017906070

main90179-06070

9018905003

main90189-05003

9038604018

main90386-04018

9038606021

main90386-06021

9046312570

main90463-12570

9165140612

main91651-40612

9331116012

main93311-16012

28 parts on this diagram · 2 diagrams in section
