DECK BOARD & DECK TRIM COVER

64323BCLAMP, TONNEAU COVER

main64323-20080-B0iST170..SX199111-199211

GRAY,TRIM1#

main64323-20080-E0iST170..SX199111-199211

SABLE,TRIM4#

main64323-32010-06iAT170,ST170..WG198805-199111

SABLE,TRIM4#

main64323-32010-13iST170..SX198805-199111

GRAY,TRIM1#

64333BCOVER, PACKAGE TRAY TRIM SIDE, RH

main64333-95502-03iAT170,CT170,ST170..WG198805-199211

GRAY,TRIM1#

main64333-95502-06iST170..SX;AT170..SV..CBR198805-199211

SABLE,TRIM4#

64349BCOVER, PACKAGE TRAY TRIM SIDE, LH

main64349-95500-03iAT170,CT170,ST170..WG198805-199211

GRAY,TRIM1#

main64349-95500-06iST170..SX;AT170..SV..CBR198805-199211

SABLE,TRIM4#

64702BSTOPPER, WASHER TANK COVER

main64981-16021iAT170,CT170,ST170..WG198805-199211

64702CKNOB, WASHER TANK COVER

main64982-16020-30iAT170,CT170,ST170..WG198805-199211

SHADOW GRAY,TRIM1#

sub64982-16020

main64982-16020-40iST170..SX;AT170..SV..CBR198805-199211

SABLE,TRIM4#

sub64982-16020

64707BCOVER SUB-ASSY, QUARTER TRIM JACK

main64707-95500-03iCT176,ET176198805-199211

GRAY,TRIM1#

sub64707-95500

main64707-95500-06iCT176,ET176..DX,SG198805-199005

SABLE,TRIM4#

sub64707-95500

main64707-95501-03iAT170,CT170,ST170..WG198805-199211

GRAY,TRIM1#

sub64707-95501

main64707-95501-06iST170..SX;AT170..SV..CBR198805-199211

SABLE,TRIM4#

sub64707-95501

64707CKNOB, JACK COVER

main64982-16020-30iAT170,CT17#,ET176,ST170..VAN,WG198805-199211

SHADOW GRAY,TRIM1#

sub64982-16020

main64982-16020-40iST170..SX198805-199211

SABLE,TRIM4#

sub64982-16020

64707GSTOPPER, JACK COVER

main64981-16021iAT170,CT17#,ET176,ST170..VAN,WG198805-199211

64709JCOVER SUB-ASSY, DECK TRIM POCKET

main64709-95500-03iAT170,CT170,ST170..WG198805-199211

GRAY,TRIM1#

sub64709-95500

main64709-95500-06iST170..SX;AT170..SV..CBR198805-199211

SABLE,TRIM4#

sub64709-95500

64714BPLUG, HOLE(FOR DECK TRIM SIDE COVER)

main90950-01503-03iAT170,CT176,ET176,ST170..VAN,WG198805-199211

SHADOW GRAY,TRIM1#

sub90950-01503

main90950-01503-26iST170..SX..EFI198805-199211

SABLE,TRIM4#

sub90950-01503

64714ECLIP(FOR DECK TRIM SIDE COVER)

main90467-07043-03iCT176,ET176198805-199211

sub90467-07043

main90467-07043-46iCT176,ET176..DX,SG198808-199005

sub90467-07043

main90467-09086-03iCT176,ET176198805-199211

main90467-09086-03iCT176,ET176198805-199211

GRAY,TRIM1#

main90467-09086-06iST170..SX;AT170..SV..CBR198805-199211

SABLE,TRIM4#

main90467-09086-06iCT176,ET176..DX,SG198805-199005

64730CBOARD, DECK TRIM SIDE, RH

main64731-95500-03iCT176,ET176198805-199211

GRAY,TRIM1#

main64731-95500-06iCT176,ET176..DX,SG198805-199005

SABLE,TRIM4#

main64731-95501-03iST170..SX199005-199211

main64731-95501-06iST170..SX199005-199211

main64731-95502-03iAT170,CT170,ST170..WG198805-199211

main64731-95502-06iST170..SX;AT170..SV..CBR198805-199211

main64731-95503-03iAT170,CT170,ST170..WG198805-199211

GRAY,TRIM1#

main64731-95503-06iST170..SX;AT170..SV..CBR198805-199211

SABLE,TRIM4#

64740BBOARD, DECK TRIM SIDE, LH

main64732-95500-03iCT176,ET176198805-199211

GRAY,TRIM1#

main64732-95500-06iCT176,ET176..DX,SG198805-199005

SABLE,TRIM4#

main64732-95501-03iST170..SX199005-199211

main64732-95501-06iST170..SX199005-199211

main64732-95502-03iAT170,CT170,ST170..WG198805-199211

main64732-95502-06iST170..SX;AT170..SV..CBR198805-199211

main64732-95503-03iAT170,CT170,ST170..WG198805-199211

GRAY,TRIM1#

main64732-95503-06iST170..SX;AT170..SV..CBR198805-199211

SABLE,TRIM4#

64770DCOVER ASSY, SPARE WHEEL

main64771-95R00iAT170,CT170,ST170..WG198805-199211

64777ACLAMP, SPARE WHEEL COVER

main64777-32030iAT170,CT170,ST170..WG198805-199211

64901ARETRACTOR SUB-ASSY, TONNEAU COVER

main64901-95500-03iST170..SX..CI;AT170,CT170..SV198805-199211

GRAY,TRIM1#

sub64901-95500

main64901-95500-06iST170..SX198805-199211

SABLE,TRIM4#

sub64901-95500

64931BHANGER, TONNEAU COVER, RH

main64931-32010-06iST170..SX198805-199211

SABLE,TRIM4#

sub64931-32010

main64931-32010-13iST170..SX198805-199211

GRAY,TRIM1#

sub64931-32010

64932BHANGER, TONNEAU COVER, LH

main64931-32010-06iAT170,ST170..WG198805-199211

SABLE,TRIM4#

sub64931-32010

main64931-32010-13iST170..SX..CI;AT170,CT170..SV198805-199211

GRAY,TRIM1#

sub64931-32010

64933ABRACKET, TONNEAU COVER HOLDER, RH

main64933-95500iAT170,CT170,ST170..WG198805-199211

64934ABRACKET, TONNEAU COVER HOLDER, LH

main64934-95500iAT170,CT170,ST170..WG198805-199211

64935AHOLDER, TONNEAU COVER

main64935-95500-03iAT170,CT170,ST170..WG198805-199211

GRAY,TRIM1#

sub64935-95500

main64935-95500-06iST170..SX;AT170..SV..CBR198805-199211

SABLE,TRIM4#

sub64935-95500

67921CRETAINER, DECK TRIM SIDE BOARD

main67921-95501iCT176,ET176198805-199211

7102

9015960203

main90159-60203

9016840058

main90168-40058

9046805047

main90468-05047

9326955012

main93269-55012

9356014012

main93560-14012

9356614512

main93566-14512

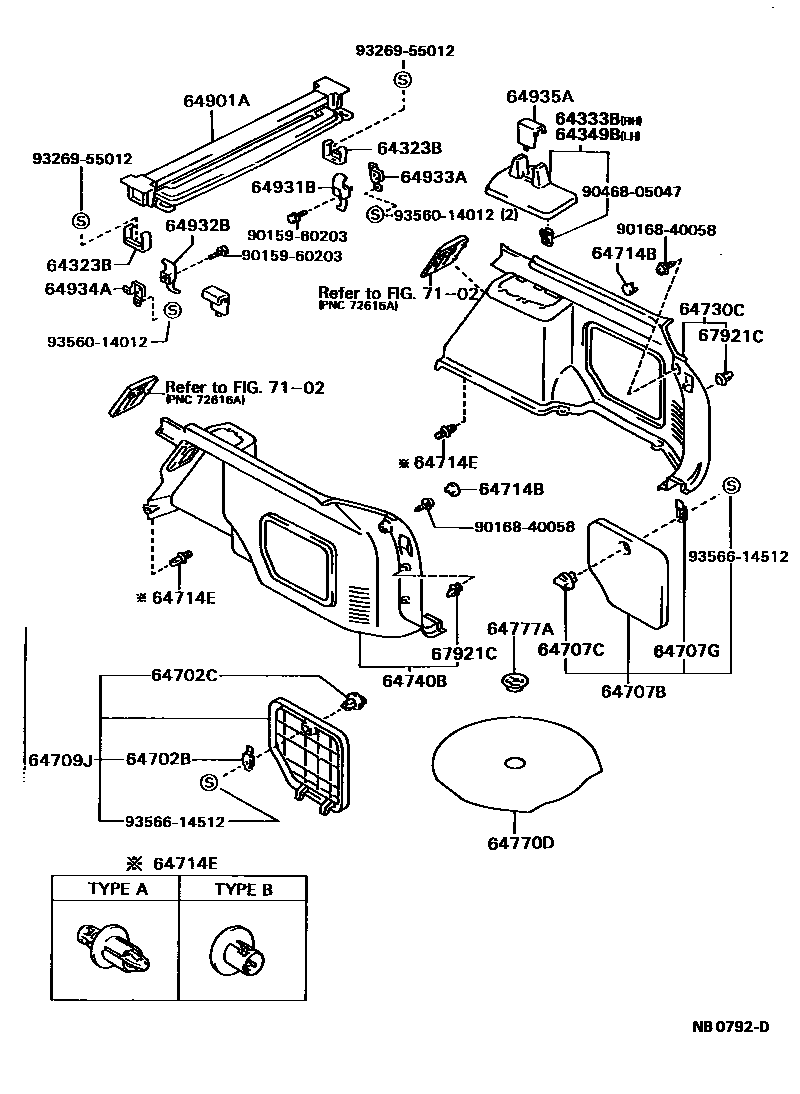

29 parts on this diagram · 1 diagram in section
