PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

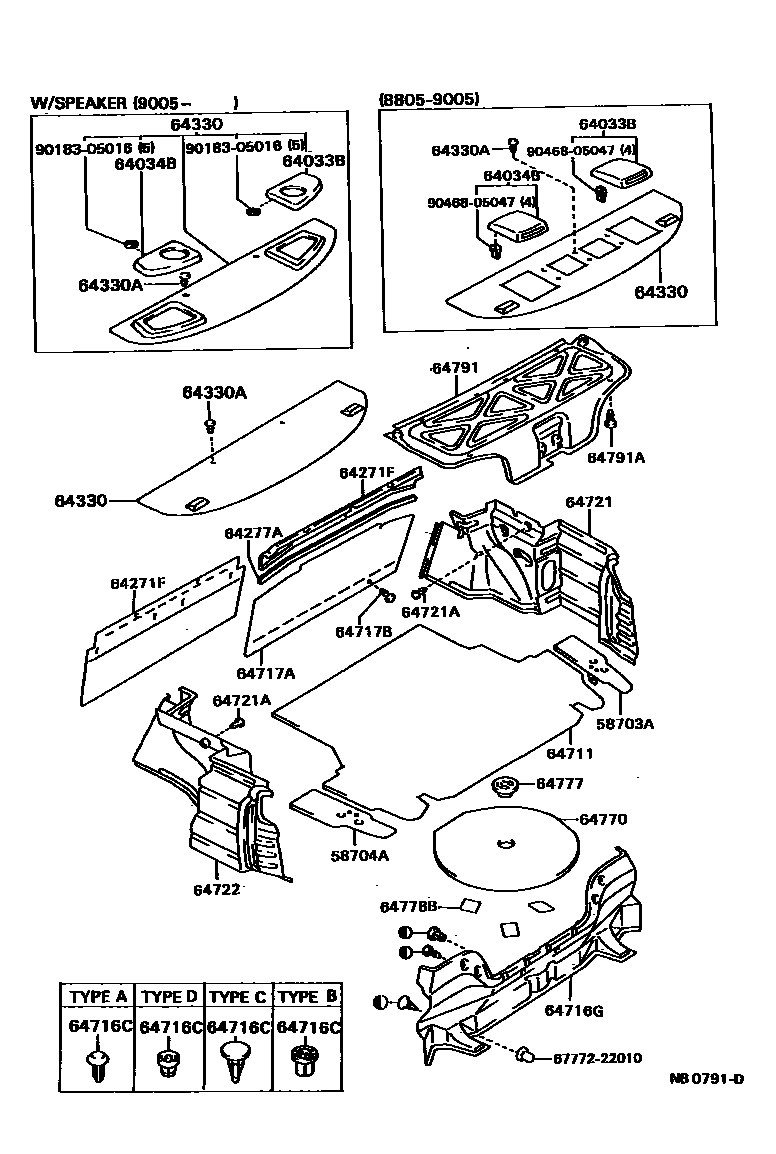

Parts diagram
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
main58703-20130i198808-199208
main58703-20140i198805-199208
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
main58704-20130i198808-199208
main58704-20140i198805-199208
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
main64033-20120-03i198805-199005
main64033-20120-03i198805-199005
GRAY,TRIM1#
main64033-20120-04i198805-199005
BLUE,TRIM8#
main64033-20120-04i198805-199005
main64033-20120-06i198805-199005
main64033-20120-06i198805-199005
SABLE,TRIM4#
main64033-20250-03i199005-199208
main64033-20250-03i199005-199208
GRAY,TRIM1#
main64033-20250-04i199005-199208
main64033-20250-04i199005-199208
BLUE,TRIM8#
main64033-20250-06i199005-199208
main64033-20250-06i199005-199208
SABLE,TRIM4#
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
main64033-20120-03i198805-199005
GRAY,TRIM1#
main64033-20120-03i198805-199005
main64033-20120-04i198805-199005
main64033-20120-04i198805-199005
BLUE,TRIM8#
main64033-20120-06i198805-199005
SABLE,TRIM4#
main64033-20120-06i198805-199005
main64034-20220-03i199005-199208
main64034-20220-03i199005-199208
GRAY,TRIM1#
main64034-20220-04i199005-199208
main64034-20220-04i199005-199208
BLUE,TRIM8#
main64034-20220-06i199005-199208
main64034-20220-06i199005-199208
SABLE,TRIM4#
64271FTRIM, ROOM PARTITION
main64271-20160-B0i198805-199005
GRAY,GRAY,TRIM1#
main64271-20160-B0i199005-199208
GRAY,TRIM1#,4#,8#
main64271-20160-B0i199005-199208
GRAY,TRIM1#
main64271-20170-03i198805-199208
GRAY,TRIM1#
main64271-20170-03i198805-199005
main64271-20170-03i198805-199208
main64271-20170-04i198805-199005
main64271-20170-04i198805-199005
main64271-20170-06i198805-199208
SABLE,TRIM4#
main64271-20170-06i198805-199005
main64271-20170-06i198805-199208
main64271-20170-14i199005-199208
main64271-20170-14i199005-199208
DARK BLUE,TRIM8#
64277AMOULDING, ROOM PARTITION TRIM
main64277-20020-03i198805-199208
GRAY,TRIM1#
main64277-20020-03i198805-199005
main64277-20020-03i198805-199208
main64277-20020-04i198805-199005
main64277-20020-04i198805-199005
main64277-20020-06i198805-199208
SABLE,TRIM4#
main64277-20020-06i198805-199005
main64277-20020-06i198805-199208
main64277-20020-14i199005-199208
DARK BLUE,TRIM8#
main64277-20020-14i199005-199208
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-20610-03i198805-199208
GRAY,TRIM1#
sub64330-20610
main64330-20610-04i198805-199005
BLUE,TRIM8#
sub64330-20610
main64330-20610-06i198805-199208
SABLE,TRIM4#
sub64330-20610
main64330-20610-14i199005-199208
BLUE,TRIM8#
sub64330-20610
main64330-20640-03i198805-199005
sub64330-20640
main64330-20640-03i198805-199005
GRAY,TRIM1#
sub64330-20640
main64330-20640-04i198805-199005
sub64330-20640
main64330-20640-04i198805-199005
BLUE,TRIM8#
sub64330-20640
main64330-20640-06i198805-199005
sub64330-20640
main64330-20640-06i198805-199005
SABLE,TRIM4#
sub64330-20640
main64330-20650-03i198805-199005
sub64330-20650
main64330-20650-03i198805-199005
sub64330-20650
main64330-20650-03i199005-199208
sub64330-20650
main64330-20650-03i198812-199005
sub64330-20650
main64330-20650-03i198805-199208
GRAY,TRIM1#
sub64330-20650
main64330-20650-04i198805-199005
BLUE,TRIM8#
sub64330-20650
main64330-20650-04i198805-199005
sub64330-20650
main64330-20650-06i198805-199005
sub64330-20650
main64330-20650-06i198805-199005
sub64330-20650
main64330-20650-06i198812-199005
sub64330-20650
main64330-20650-06i198805-199208
SABLE,TRIM4#
sub64330-20650
main64330-20650-06i199005-199208
sub64330-20650
main64330-20650-14i199005-199208
BLUE,TRIM8#
sub64330-20650
main64330-20650-14i199005-199208
sub64330-20650
main64330-2B360-03i199005-199208
main64330-2B360-04i199005-199208
main64330-2B360-06i199005-199208
main64330-2B430-03i199005-199208
main64330-2B430-03i199005-199208
GRAY,TRIM1#
main64330-2B430-03i199106-199208
main64330-2B430-04i199005-199208
main64330-2B430-04i199005-199208
BLUE,TRIM8#
main64330-2B430-04i199106-199208
main64330-2B430-06i199005-199208
SABLE,TRIM4#
main64330-2B430-06i199005-199208
main64330-2B430-06i199106-199208
main64330-2B440-03i199005-199208
main64330-2B440-03i199106-199208
main64330-2B440-04i199005-199208
main64330-2B440-04i199106-199208
main64330-2B440-06i199005-199208
main64330-2B440-06i199106-199208
main64330-2B450-03i199005-199208
main64330-2B450-03i199005-199208
GRAY,TRIM1#
main64330-2B450-03i199106-199208
main64330-2B450-04i199005-199208
main64330-2B450-04i199005-199208
BLUE,TRIM8#
main64330-2B450-04i199106-199208
main64330-2B450-06i199005-199208
main64330-2B450-06i199106-199208
main64330-2B450-06i199005-199208
SABLE,TRIM4#
main64330-2B460-03i199005-199208
main64330-2B460-03i199106-199208
main64330-2B460-04i199106-199208
main64330-2B460-04i199005-199208
main64330-2B460-06i199005-199208
main64330-2B460-06i199106-199208
main64330-2B470-03i199012-199208
main64330-2B470-03i199012-199108
main64330-2B470-03i199012-199108
main64330-2B470-03i199005-199208
main64330-2B470-03i199005-199208
main64330-2B470-03i199108-199208
main64330-2B470-03i199108-199208
main64330-2B470-04i199005-199208
main64330-2B470-04i199005-199208
main64330-2B470-04i199012-199208
main64330-2B470-04i199012-199108
main64330-2B470-04i199012-199108
main64330-2B470-04i199108-199208
main64330-2B470-04i199108-199204
main64330-2B470-06i199005-199208
main64330-2B470-06i199012-199108
main64330-2B470-06i199108-199208
main64330-2B470-06i199012-199108
main64330-2B470-06i199108-199208
main64330-2B470-06i199005-199208
main64330-2B470-06i199012-199208
main64330-2B480-03i199005-199208
sub64330-2B480
main64330-2B480-03i199005-199208
sub64330-2B480
main64330-2B480-04i199005-199208
sub64330-2B480
main64330-2B480-04i199005-199208
sub64330-2B480
main64330-2B480-06i199005-199208
sub64330-2B480
main64330-2B480-06i199005-199208
sub64330-2B480
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
main90467-08046-03i198805-199009
GRAY,TRIM1#
sub90467-08046
sub90467-08037
main90467-08046-24i198805-198807
DARK BLUE,TRIM8#
sub90467-08046
sub90467-08037
main90467-08046-26i198805-199208
SABLE,TRIM4#
sub90467-08046
sub90467-08037
main90467-08046-34i199005-199208
DARK BLUE,TRIM8#
sub90467-08046
sub90467-08037
main90467-08046-B1i199009-199208
SHADOW GRAY,TRIM1#
sub90467-08046
sub90467-08037
64711MAT, LUGGAGE COMPARTMENT FLOOR
main64711-20490-03i198805-199208
GRAY,TRIM1#
main64711-20500-03i198805-199208
GRAY,TRIM1#,4#,8#
main64711-20520-03i199005-199208
GRAY,TRIM1#
main64711-20520-03i198805-199005
main64711-20520-03i199005-199208
GRAY,TRIM1#,4#,8#
main64711-20520-03i198805-199005
GRAY,TRIM1#,4#
main64711-20520-03i198805-199208
main64711-20530-03i198903-199005
main64711-20530-03i198805-199005
GRAY,TRIM1#,4#,8#
main64711-20550-03i198808-199005
GRAY,TRIM1#,4#,8#
main64711-20600-03i198812-199005
main64711-20660-03i199005-199208
GRAY,TRIM1#
main64711-20750-03i199005-199208
GRAY,TRIM1#,4#,8#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
main90467-05027i198805-199005
main90467-05027i198903-199005
main90467-05027i198805-199208
main90467-05027i199012-199208
main90467-06083-03i198805-199005
main90467-06083-03i199005-199204
main90467-06083-03i198805-199204
main90467-06083-03i199012-199204
main90467-06083-03i198805-199005
main90467-06083-03i198903-199005
main90467-06158-B0i199204-199208
main90467-06158-B0i199204-199208
main90467-06158-B0i199204-199208
main90467-09032-13i199204-199208
sub90467-09032
main90467-09032-13i198805-199005
sub90467-09032
main90467-09032-13i198805-199208
sub90467-09032
main90467-09032-13i198805-199005
sub90467-09032
main90467-09032-13i198903-199005
sub90467-09032
main90467-09032-13i199012-199204
sub90467-09032
main90467-09032-13i199005-199208
sub90467-09032
main90467-09032-23i198903-199005
sub90467-09032
main90467-09032-23i198805-199005
sub90467-09032
main90467-09032-23i198805-199005
sub90467-09032
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
main64716-20290-03i198805-199005
GRAY,TRIM1#,4#
main64716-20290-03i198805-199208
GRAY,TRIM1#,4#,8#
main64716-20290-03i198805-199005
main64716-20290-03i198903-199005
main64716-20290-03i199012-199204
main64716-20290-03i199005-199208
GRAY,TRIM1#
main64716-20290-03i199204-199208
main64716-20420-03i199005-199208
GRAY,TRIM1#,4#,8#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
main64717-20170-03i198805-199208
GRAY,TRIM1#,4#,8#
main64717-20220-03i198808-199208
GRAY,TRIM1#,4#,8#
main64717-20230-03i198805-199208
GRAY,TRIM1#,4#,8#
main64717-20230-03i199204-199208
main64717-20230-03i198903-199005
main64717-20230-03i199012-199204
main64717-20270-03i199005-199208
GRAY,TRIM1#,4#,8#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
main90467-06016-58i198812-199208
GRAY,TRIM1#,4#,8#
sub90467-06016
sub90467-07049
main90467-06016-58i198808-199005
GRAY,TRIM8#
sub90467-06016
sub90467-07049
main90467-09066-B0i198805-199005
GRAY,GRAY,TRIM1#,4#,8#
sub90467-09066
main90467-09066-B0i199005-199208
GRAY,TRIM1#,4#,8#
sub90467-09066
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
main64721-20210-03i198805-199208
GRAY,TRIM1#,4#,8#
main64721-20220-03i198805-199005
main64721-20220-03i198805-199005
GRAY,TRIM1#,4#
main64721-20220-03i198805-199208
main64721-20220-03i199005-199208
GRAY,TRIM1#
main64721-20220-03i199005-199208
GRAY,TRIM1#,4#,8#
main64721-20230-03i198808-199208
GRAY,TRIM1#,4#,8#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
main90467-07042-03i198805-198807
GRAY,TRIM1#,4#,8#
sub90467-07042
sub90467-06175
main90467-07042-03i198805-198807
GRAY,TRIM1#,4#
sub90467-07042
sub90467-06175
main90467-07042-03i198805-198807
GRAY,TRIM1#,8#
sub90467-07042
sub90467-06175
main90467-07042-B0i198807-199005
LIGHT GRAY,TRIM1#,4#
sub90467-07042
sub90467-06175
main90467-07042-B0i198807-199208
LIGHT GRAY,TRIM1#,4#,8#
sub90467-07042
sub90467-06175
main90467-07042-B0i199005-199208
LIGHT GRAY,TRIM1#
sub90467-07042
sub90467-06175
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
main64722-20180-03i198805-199208
GRAY,TRIM1#,4#,8#
main64722-20190-03i199005-199208
GRAY,TRIM1#
main64722-20190-03i198805-199005
GRAY,TRIM1#,4#
main64722-20190-03i198805-199005
main64722-20190-03i198805-199208
main64722-20190-03i199005-199208
GRAY,TRIM1#,4#,8#
main64722-20200-03i198808-199208
GRAY,TRIM1#,4#,8#
64770COVER ASSY, SPARE WHEEL
main64770-32050i198808-199208
main64770-32060i199005-199208
main64771-32040i198805-199208
64777CLAMP, SPARE WHEEL COVER
main64777-32030i198805-199208
64778BPROTECTOR, SPARE WHEEL
main64778-14020i198805-199208
main64778-20040i198805-199208
sub64778-32020
64791COVER, BACK DOOR TRIM
main64791-20040-03i198805-199005
main64791-20040-03i198805-199005
main64791-20040-03i198805-199208
main64791-20040-03i199005-199208
main64791-20040-03i199005-199208
64791ACLIP(FOR BACK DOOR TRIM)
main90467-05027i198805-199208
main90467-05027i198805-199005
main90467-05027i198805-199208
6777222010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-22010
9018305016
main90183-05016
9046805047
main90468-05047

24 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
