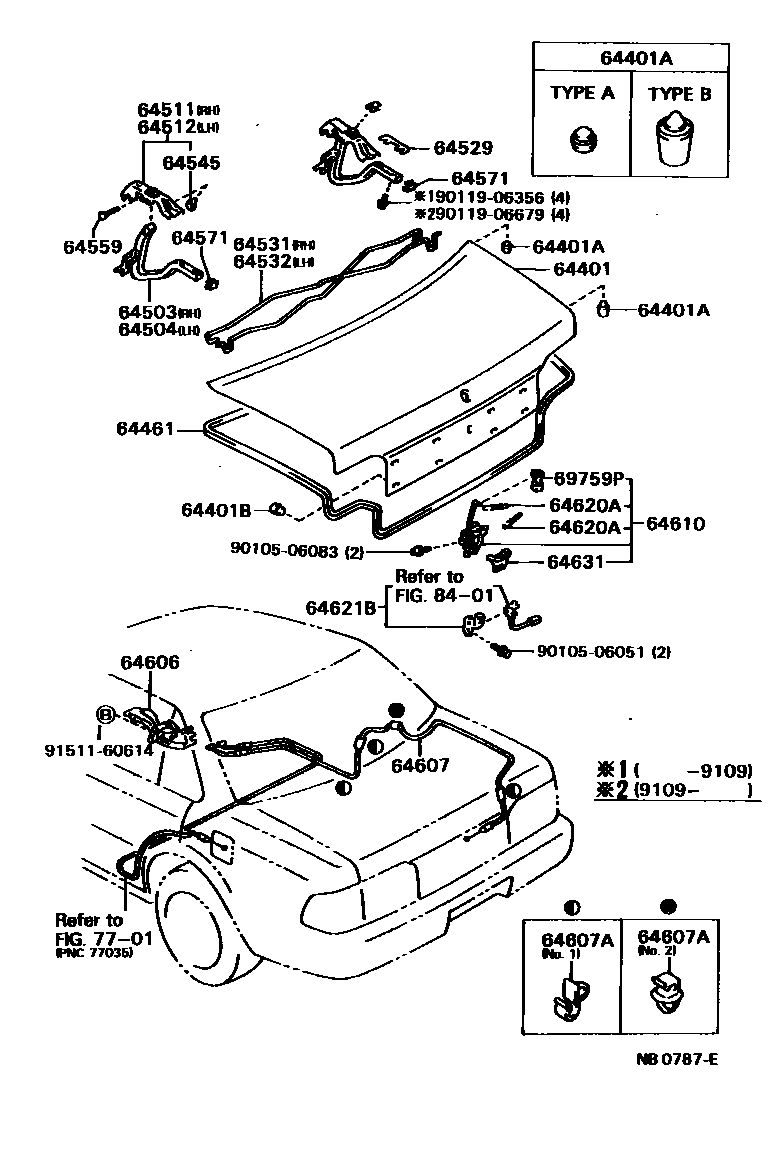

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-2B430iAT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT198805-199005

sub64401-2B431

main64401-2B431iAT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT199005-199208

main64401-2B440iAT171..GLIM198805-199005

sub64401-2B441

main64401-2B441iAT170..DX199005-199208

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06076iAT17#,CT170,ST170..SED198805-199208

sub90541-06056

main90541-09043iAT17#,CT170,ST170..SED198805-199208

64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90950-01036iAT17#,CT170,ST170..SED198806-199208

main90950-01056iAT17#,CT170,ST170..SED198805-198806

sub90950-01826

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-20300iAT17#,CT170,ST170..SED198805-199208

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-20050iAT17#,CT170,ST170..SED198805-199208

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-20050iAT17#,CT170,ST170..SED198805-199208

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-20150iAT17#,CT170,ST170..SED198805-199208

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-20150iAT17#,CT170,ST170..SED198805-199208

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-14010iAT17#,CT170,ST170..SED198805-199208

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-20230iAT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT198805-199208

main64531-20240iAT170..DX198805-199208

main64531-20250iST170..SE198805-199208

main64531-20350iAT171..GLIM198912-199208

main64531-20360iAT171..GLIM198912-199208

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-20230iAT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT198805-199208

main64532-20240iAT170..DX198805-199208

main64532-20250iAT171..GLIM198805-199208

main64532-20350iAT171..GLIM198912-199208

main64532-20360iAT171..EFI198912-199208

64545CUSHION, LUGGAGE DOOR HINGE

main90541-07016iAT17#,CT170,ST170..SED198805-199208

64559PIN, LUGGAGE DOOR HINGE

main64559-32010iAT17#,CT170,ST170..SED198805-199208

64571COVER, LUGGAGE COMPARTMENT DOOR HINGE

main64571-30020iAT17#,CT170,ST170..SED198805-199208

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-20080iAT170,171,CT170,ST170..GLIM,S,SE,SG,SGEXT198805-199208

sub64606-20081

main64606-20140iAT175198808-199208

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-20500iAT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT198805-199208

sub64607-20720

main64607-20720iAT175199001-199208

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010iAT171,175..GLIM,SG,SGEXT198805-199208

main69749-12010iAT170,171,CT170,ST170..GLIM,S,SE,SG,SGEXT198805-199005

main90467-09031iAT170,171,CT170,ST170..GLIM,S,SE,SG,SGEXT198805-199005

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20120iAT170..DX198805-199208

main64610-20180iAT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT198805-199208

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-05001iAT170..DX198805-199208

main90506-05002iAT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT198805-199208

WHITE

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64620-20050iAT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT198805-199005

sub64621-12060

sub84231-20110

sub93315-15010

main64620-20110iAT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT199005-199208

sub64621-12060

sub84231-20240

sub93315-15010

main64621-12060iAT170..DX198805-199208

sub64621-12070

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-20010iAT17#,CT170,ST170..SED198805-199208

69759PSNAP, DOOR LOCK CONTROL LINK

main69759-20040iAT170..DX198805-199208

main69759-20100iAT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT199005-199208

7701

8401

9010506051

main90105-06051

9010506083

main90105-06083

9011906356

main90119-06356

9011906679

main90119-06679

9151160614

main91511-60614

29 parts on this diagram · 1 diagram in section
