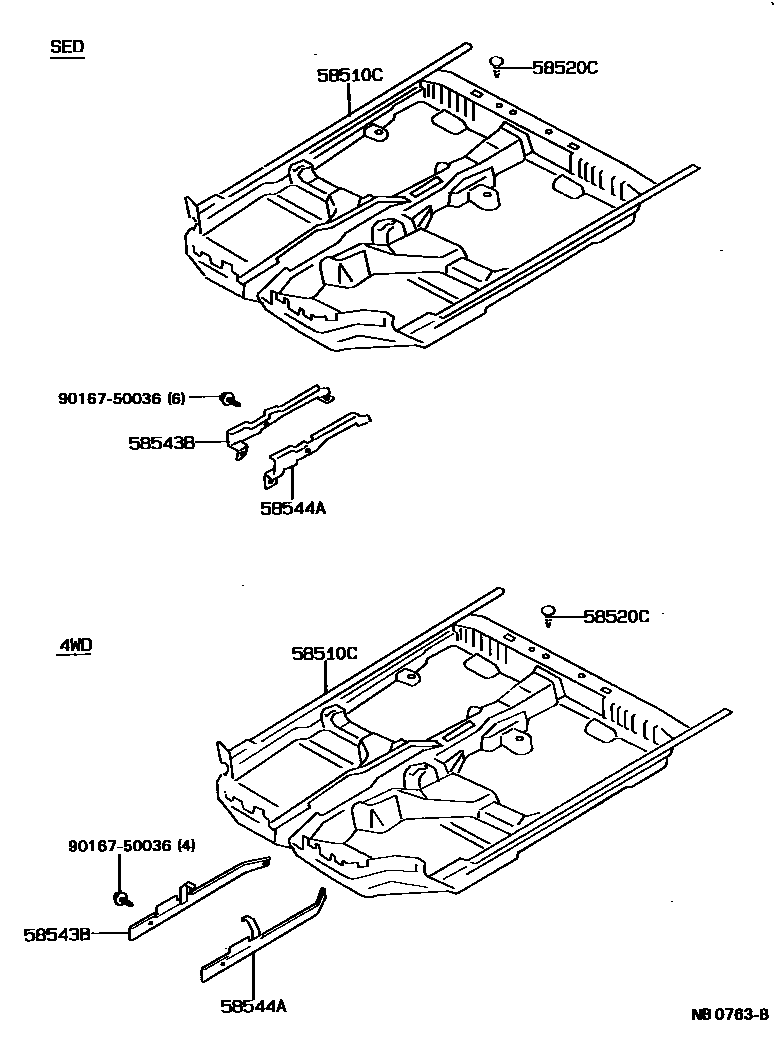

MAT & CARPET

0001 1 0002 1

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-2B410-03iAT171..GLIM; ST170..SE198805-199208

main58510-2B410-04iST170..SE198805-199005

main58510-2B410-06iAT171..GLIM198805-199005

main58510-2B410-14iST170..SE199005-199208

main58510-2B420-03iAT171..GLIM; ST170..SE198805-199208

main58510-2B420-04iST170..SE198805-199005

main58510-2B420-06iST170..SE198805-199208

main58510-2B420-14iST170..SE199005-199208

main58510-2B430-03iAT170,171,CT170,ST170..DX,S,SE,SG,SGEXT198805-199208

GRAY,TRIM1#

main58510-2B430-04iAT170,171,CT170,ST170..S,SE,SG,SGEXT198805-199005

BLUE,TRIM8#

main58510-2B430-06iAT170,171,CT170,ST170..S,SE,SG,SGEXT198805-199208

SABLE,TRIM4#

main58510-2B430-14iAT170,171,CT170,ST170..S,SE,SG,SGEXT199005-199208

DARK BLUE,TRIM8#

main58510-2B490-03iAT170,171,CT170,ST170..DX,S,SE,SG,SGEXT198805-199208

main58510-2B490-04iAT170,171,CT170,ST170..S,SE,SG,SGEXT198805-199005

main58510-2B490-06iAT170,171,CT170,ST170..S,SE,SG,SGEXT198805-199208

main58510-2B490-14iAT170,171,CT170,ST170..S,SE,SG,SGEXT199005-199208

main58510-2B630-03iAT175198808-199208

GRAY,TRIM1#

main58510-2B630-04iAT175198808-199005

BLUE,TRIM8#

main58510-2B630-06iAT175198808-199208

SABLE,TRIM4#

main58510-2B630-14iAT175199005-199208

DARK BLUE,TRIM8#

main58510-2B640-03iAT175198808-199208

main58510-2B640-04iAT175198808-199005

main58510-2B640-06iAT175198808-199208

main58510-2B640-14iAT175199005-199208

main58510-95507-03iCT176,ET176..DX,SG198805-199211

main58510-95507-06iCT176,ET176..DX,SG198805-199005

main58510-95508-03iCT176,ET176..DX,SG198805-199211

GRAY,TRIM1#

main58510-95508-06iCT176,ET176..DX,SG198805-199005

SABLE,TRIM4#

main58510-95R00-03iAT170,CT170,ST170..WG198805-199211

GRAY,TRIM1#

main58510-95R00-06iST170..SX;AT170..SV..CBR198805-199211

SABLE,TRIM4#

main58510-95R01-03iAT170,CT170,ST170..WG198805-199211

main58510-95R01-06iST170..SX;AT170..SV..CBR198805-199211

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05021-13×3iCT176,ET176198805-199211

GRAY,TRIM1#

main90467-05021-16×3iCT176,ET176..DX,SG198805-199005

SABLE,TRIM4#

main90467-06016-33×2iAT17#,CT170,ST170..SED198805-199208

GRAY,TRIM1#

main90467-06016-40×2iAT17#,CT170,ST170..S,SE,SG,SGEXT198805-199005

DARK BLUE,TRIM8#

main90467-06016-48×2iAT17#,CT170,ST170..S,SE,SG,SGEXT199005-199208

BLUE,TRIM8#

main90467-06016-57×2iAT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT198805-199005

SABLE,TRIM4#

main90467-06016-58×2iAT170,CT170,ST170..SG,SGEXT199005-199208

GRAY,TRIM1#,4#,8#

58543BBRACKET, FLOOR CARPET, RH

main58543-20010iAT170,171,CT17#,ET176,ST170198805-199211

main58543-20020iAT175198808-199208

58544ABRACKET, FLOOR CARPET, LH

main58544-20010iAT170,171,CT17#,ET176,ST170198805-199211

main58544-20020iAT175198808-199208

9016750036

main90167-50036

5 parts on this diagram · 2 diagrams in section
