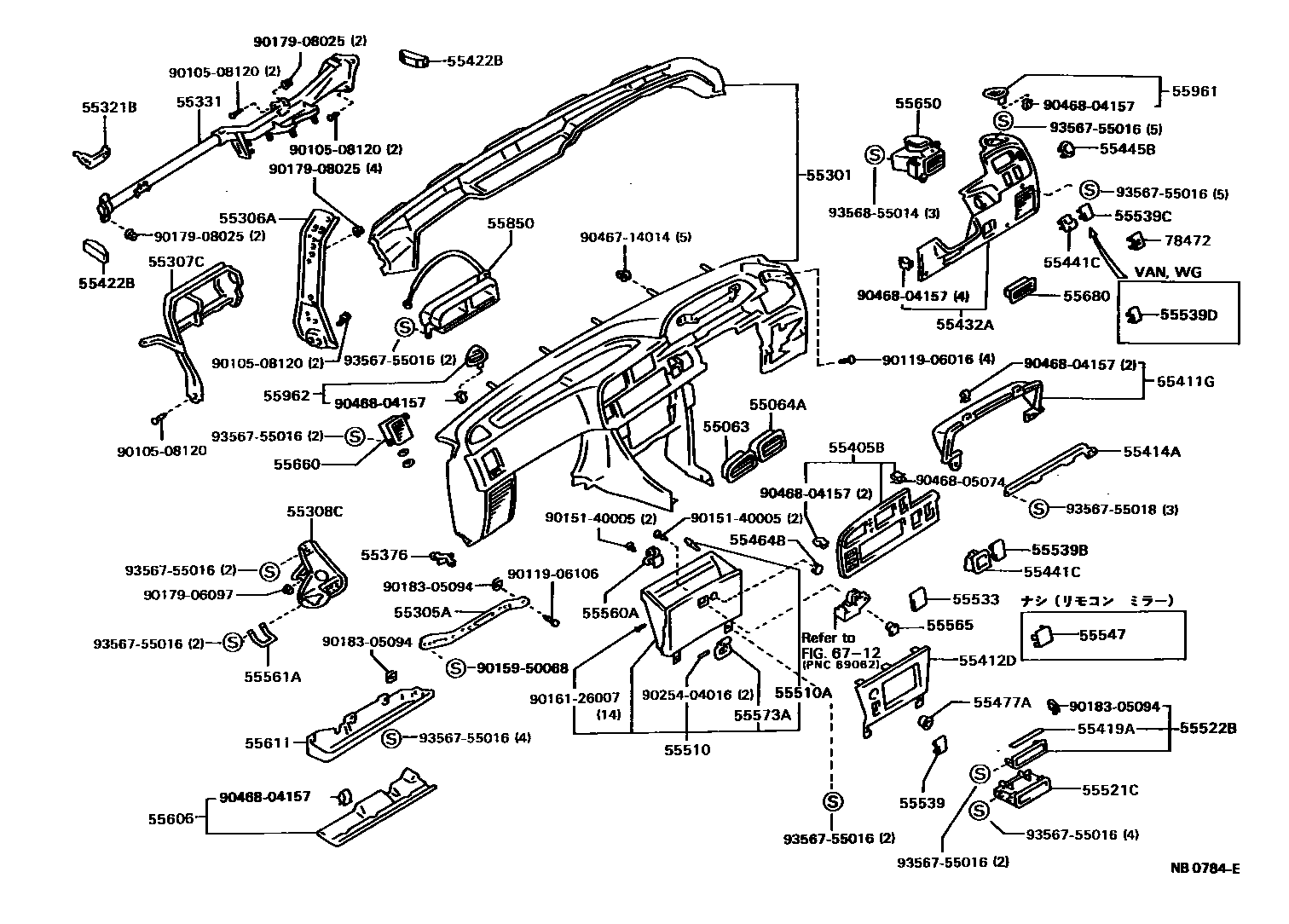

INSTRUMENT PANEL & GLOVE COMPARTMENT

55063REGISTER SUB-ASSY, INSTRUMENT, NO.3

main55063-20030iAT17#,CT17#,ET176,ST170198805-199211

55064AREGISTER SUB-ASSY, INSTRUMENT, NO.4

main55064-20030iAT17#,CT17#,ET176,ST170198805-199211

55301PANEL SUB-ASSY, INSTRUMENT

main55300-20020-03iAT17#,CT17#,ET176,ST170198805-199211

GRAY,TRIM1#

main55300-20020-04iAT17#,CT170,ST170..S,SE,SG,SGEXT198805-199005

BLUE,TRIM8#

main55300-20020-06iAT17#,CT170,ST170..S,SE,SG,SGEXT,SX199005-199211

SABLE,TRIM4#

main55300-20020-14iAT17#,CT170,ST170..S,SE,SG,SGEXT199005-199208

BLUE,TRIM8#

55305AREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, RH

main55305-20170iAT17#,CT17#,ET176,ST170198805-199211

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55351-20150iAT17#,CT17#,ET176,ST170198805-199211

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-20150iAT17#,CT17#,ET176,ST170198805-199211

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-20150iAT17#,CT17#,ET176,ST170198805-199211

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55321-20090iAT17#,CT17#,ET176,ST170198805-199211

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-20090iAT17#,CT17#,ET176,ST170198805-199211

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-20060iAT17#,CT17#,ET176,ST170198805-199211

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-20080iET176..STD199005-199211

main55405-20090iAT17#,CT17#,ET176,ST170..DX,GLIM,S,SE,SG,SGEXT,SV,SX; ET176..STD199005-199211

main55405-20100iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199005-199208

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-20590iAT17#,CT17#,ET176,ST170198805-199211

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-20380iAT17#,CT17#,ET176,ST170198805-199211

55414APANEL, INSTRUMENT CLUSTER FINISH, END

main55414-20090iAT17#,CT17#,ET176,ST170198805-199211

55419ACUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-14020×2iET176..STD;AT170..4F..DX198805-199005

55422BPAD, FRONT BUMPER SIDE

main55422-20070×2iAT17#,CT17#,ET176,ST170198805-199211

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-20230-03iAT17#,CT17#,ET176,ST170198805-199211

GRAY,TRIM1#

main55432-20230-04iAT17#,CT170,ST170..S,SE,SG,SGEXT198805-199005

BLUE,TRIM8#

main55432-20230-06iCT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX198805-199005

SABLE,TRIM4#

main55432-20230-14iAT17#,CT170,ST170..S,SE,SG,SGEXT199005-199208

BLUE,TRIM8#

55441CBOX, INSTRUMENT PANEL COIN

main55441-20140-01iAT17#,CT170,ST170..S,SE,SG,SGEXT; AT170,CT176,ET176,ST170..(VAN,WG)..(DX,SG,SV,SX)198908-199005

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

main55441-20140-11iAT170,175; AT171..EFIS; CT170,ET176,ST170; CT176..DX; CT176..SG199203-199211

BLACK,BLACK,TRIM1#

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-20150iAT17#,CT17#,ET176,ST170198805-199211

55464BCOVER, CHOKE KNOB HOLE

main55464-14010-03iAT170..4F..DX198805-199005

GRAY,TRIM1#

main55464-14010-26iCT176,ET176..DX,SG198805-199005

SABLE,TRIM4#

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-20070iAT17#,CT17#,ET176,ST170198805-199211

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-20160-03iAT17#,CT17#,ET176,ST170198805-199211

GRAY,TRIM1#

main55550-20160-04iAT17#,CT170,ST170..S,SE,SG,SGEXT198805-199005

BLUE,TRIM8#

main55550-20160-06iCT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX198805-199005

SABLE,TRIM4#

main55550-20160-14iAT17#,CT170,ST170..S,SE,SG,SGEXT199005-199208

BLUE,TRIM8#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iAT17#,CT17#,ET176,ST170198805-199211

main90541-05080×2iAT17#,CT17#,ET176,ST170198805-199211

L=26.7

55521CCOVER, STEREO OPENING

main55521-16030iAT17#,CT17#,ET176,ST170198805-199211

55522BCOVER, RADIO TUNER OPENING

main55522-32010iCT176..DX;ET176..STD;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SX199005-199211

55533COVER, AUTO CLOCK HOLE

main55533-20060iET176..STD;AT170..4F..DX..CBR198805-199211

55539COVER, SPARE SWITCH HOLE

main55539-24010-01iET176..STD198805-199211

BLACK,TRIM1#

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-24010-01iAT17#,CT170,ST170..S,SE,SG,SGEXT; AT170..DX;ET176..STD; AT171,CT176,ET176,ST170..DX,GLIM,SX198805-199005

BLACK,TRIM1#; BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

55539CCOVER, SPARE SWITCH HOLE

main55539-24010-01iAT17#,CT170,ST170..S,SE,SG,SGEXT; CT176,ET176;AT170,171,CT170..DX,GLIM,SV; ST170..SX199005-199211

BLACK,TRIM1#; BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

55539DCOVER, SPARE SWITCH HOLE

main55539-24010-01iET176..STD198805-199005

BLACK,TRIM1#

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-20030-01iAT170,175..SG; AT170,CT176,ET176..(VAN,WG)..(DX,SG,SV); AT170..DX;ET176..STD198805-199005

BLACK,TRIM1#; BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-16040-03iCT176,ET176198805-199211

SHADOW GRAY,TRIM1#

main55560-16040-06iCT176,ET176..DX,SG198805-199005

SABLE,TRIM4#

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-12040iAT17#,CT17#,ET176,ST170198805-199211

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-20060-03iAT17#,CT170,ST170198805-199211

SHADOW GRAY,TRIM1#

main55565-20060-04iAT17#,CT170,ST170..S,SE,SG,SGEXT198805-199005

DARK BLUE,TRIM8#

main55565-20060-06iAT17#,CT170,ST170..S,SE,SG,SGEXT,SX199005-199211

SABLE,TRIM4#

main55565-20060-14iAT17#,CT170,ST170..S,SE,SG,SGEXT199005-199208

DARK BLUE,TRIM8#

55573AHINGE, GLOVE COMPARTMENT DOOR

main55573-32010×2iAT17#,CT17#,ET176,ST170198805-199211

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-20040iAT171..EFIS;AT171,CT17#,ST170..DX,GLIM,SE,SG,SGEXT,SV,SX198805-199211

55611TRAY, INSTRUMENT PANEL UNDER

main55611-20110-03iAT17#,CT17#,ET176,ST170198805-199211

GRAY,TRIM1#

main55611-20110-04iAT17#,CT170,ST170..S,SE,SG,SGEXT198805-199005

BLUE,TRIM8#

main55611-20110-06iCT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX198805-199005

SABLE,TRIM4#

main55611-20110-14iAT17#,CT170,ST170..S,SE,SG,SGEXT199005-199208

BLUE,TRIM8#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-20200iAT17#,CT17#,ET176,ST170198805-199211

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-20150-03iAT17#,CT17#,ET176,ST170198805-199211

GRAY,TRIM1#

main55660-20150-04iAT17#,CT170,ST170..S,SE,SG,SGEXT198805-199005

BLUE,TRIM8#

main55660-20150-06iAT17#,CT170,ST170..S,SE,SG,SGEXT,SX199005-199211

SABLE,TRIM4#

main55660-20150-14iAT17#,CT170,ST170..S,SE,SG,SGEXT199005-199208

BLUE,TRIM8#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-13iAT17#,CT17#,ET176,ST170198805-199211

SHADOW GRAY,TRIM1#

main55680-14030-14iAT17#,CT170,ST170..S,SE,SG,SGEXT198805-198807

DARK BLUE,TRIM8#

main55680-14030-16iCT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX198805-199005

SABLE,TRIM4#

main55680-14030-24iAT17#,CT170,ST170..S,SE,SG,SGEXT199005-199208

DARK BLUE,TRIM8#

main55680-14030-J0iAT17#,CT170,ST170..S,SE,SG,SGEXT198807-199005

DARK BLUE,TRIM8#

55850CONNECTOR ASSY, INSTRUMENT PANEL REGISTER, CENTER

main55850-20010iAT17#,CT17#,ET176,ST170198805-199211

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-20160-03iAT17#,CT17#,ET176,ST170198805-199211

GRAY,TRIM1#

main55961-20160-04iAT17#,CT170,ST170..S,SE,SG,SGEXT198805-199005

BLUE,TRIM8#

main55961-20160-06iCT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX198805-199005

SABLE,TRIM4#

main55961-20160-14iAT17#,CT170,ST170..S,SE,SG,SGEXT199005-199208

BLUE,TRIM8#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-20160-03iAT17#,CT17#,ET176,ST170198805-199211

GRAY,TRIM1#

main55962-20160-04iAT17#,CT170,ST170..S,SE,SG,SGEXT198805-199005

BLUE,TRIM8#

main55962-20160-06iCT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX198805-199005

SABLE,TRIM4#

main55962-20160-14iAT17#,CT170,ST170..S,SE,SG,SGEXT199005-199208

BLUE,TRIM8#

6712LOCK CYLINDER SET

→ Go to FIG 67-12

78472SUPPORT, THROTTLE CONTROL CABLE

main78472-20020iCT17#..5F198805-199005

9010508120

main90105-08120

9011906016

main90119-06016

9011906106

main90119-06106

9015140005

main90151-40005

9015950068

main90159-50068

9016126007

main90161-26007

9017906097

main90179-06097

9017908025

main90179-08025

9018305094

main90183-05094

9025404016

main90254-04016

9046714014

main90467-14014

9046804157

main90468-04157

9046805074

main90468-05074

9356755016

main93567-55016

9356755018

main93567-55018

9356855014

main93568-55014
