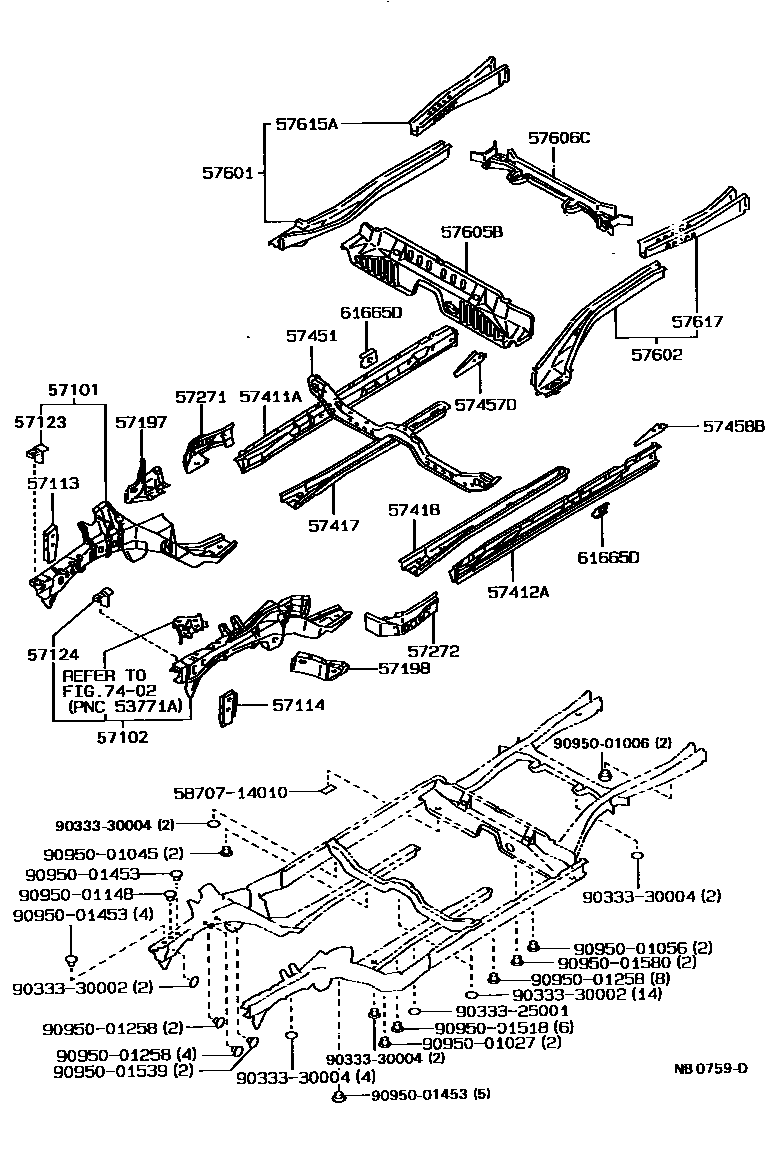

FLOOR SIDE MEMBER

0001 1 0002 1 0003 1

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-20670iAT175198808-199208

main57101-20905iAT170,171198805-199211

main57101-20906iST170198805-199211

main57101-20907iCT17#,ET176198805-199211

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-20690iAT175198808-199208

main57102-20902iAT170,171,ET176199005-199211

main57102-20903iST170198805-199211

main57102-20904iCT17#,ET176198805-199005

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-20110iAT17#,CT17#,ET176,ST170198805-199211

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-20090iAT17#,CT17#,ET176,ST170198805-199211

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-20030iAT17#,CT17#,ET176,ST170198805-199211

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-20030iAT17#,CT17#,ET176,ST170198805-199211

57197BOX, TORQUE, FRONT RH

main57197-20030iAT170,171,CT17#,ET176,ST170198805-199211

57198BOX, TORQUE, FRONT LH

main57198-20030iAT170,171,CT17#,ET176,ST170198805-199211

57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH

main57271-20020iAT170,171,CT17#,ET176,ST170198805-199211

57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH

main57272-20020iAT170,171,CT17#,ET176,ST170198805-199211

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-20070iAT17#,CT17#,ET176,ST170198805-199211

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-20170iAT170,171,CT17#,ET176,ST170198805-199211

main57412-20190iAT175198808-199208

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-20030iAT175198808-199208

main57417-20050iAT170,171,CT17#,ET176,ST170198805-199211

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-20040iAT175198808-199208

main57418-20050iAT170,171,CT170,ST170198805-199211

main57418-95500iCT176,ET176198805-199211

57451MEMBER, FRONT FLOOR CROSS

main57408-20010iAT170,171,CT17#,ET176,ST170198805-199211

main57408-20070iAT175198808-199208

57457DPATCH, FLOOR SIDE MEMBER, REAR RH

main57457-20040iAT17#,CT17#,ET176,ST170198805-199211

57458BPATCH, FLOOR SIDE MEMBER, REAR LH

main57458-20030iAT17#,CT17#,ET176,ST170198805-199211

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-20270iAT170,171,CT170,ST170..SED198805-199208

main57601-20290iAT175198808-199208

main57601-95502iCT176,ET176198805-198905

main57601-95503iAT170,CT170,ST170..WG198805-199211

main57601-95504iCT176,ET176198905-199211

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-20270iAT170,171,CT170,ST170..SED198805-199208

main57602-32100iAT175198808-199208

main57602-95502iCT176,ET176198805-198905

main57602-95503iAT170,CT170,ST170..WG198805-199211

main57602-95504iCT176,ET176198905-199211

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-20070iAT170,171,CT170,ST170198805-199211

main57605-32040iAT175198808-199208

main57605-95501iCT176,ET176198805-199211

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-95500iAT171,ST170..S,SE; ST170..SX;AT170,171..GLIM,SE,SV198808-199005

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-20906iAT175198808-199208

main57615-95900iAT170,CT170,ST170..WG198805-199211

main57615-95901iAT170,171,CT170,ST170..SED198805-199208

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-32909iAT175198808-199208

main57616-95900iAT170,CT170,ST170..WG198805-199211

main57616-95901iAT170,171,CT170,ST170..SED198805-199208

61665DPLATE, SAFETY BELT ANCHORAGE

main61665-22010×2iAT17#,CT17#,ET176,ST170198805-199211

7402BATTERY CARRIER

→ Go to FIG 74-02

5870714010PLUG SET, HOLE

main58707-14010

9033325001

main90333-25001

9033330002

main90333-30002

9033330004

main90333-30004

9033333004

main90333-33004

9095001006

main90950-01006

9095001027

main90950-01027

9095001045

main90950-01045

9095001056

main90950-01056

9095001148

main90950-01148

9095001258

main90950-01258

9095001453

main90950-01453

9095001518

main90950-01518

9095001539

main90950-01539

9095001580

main90950-01580

40 parts on this diagram · 3 diagrams in section
