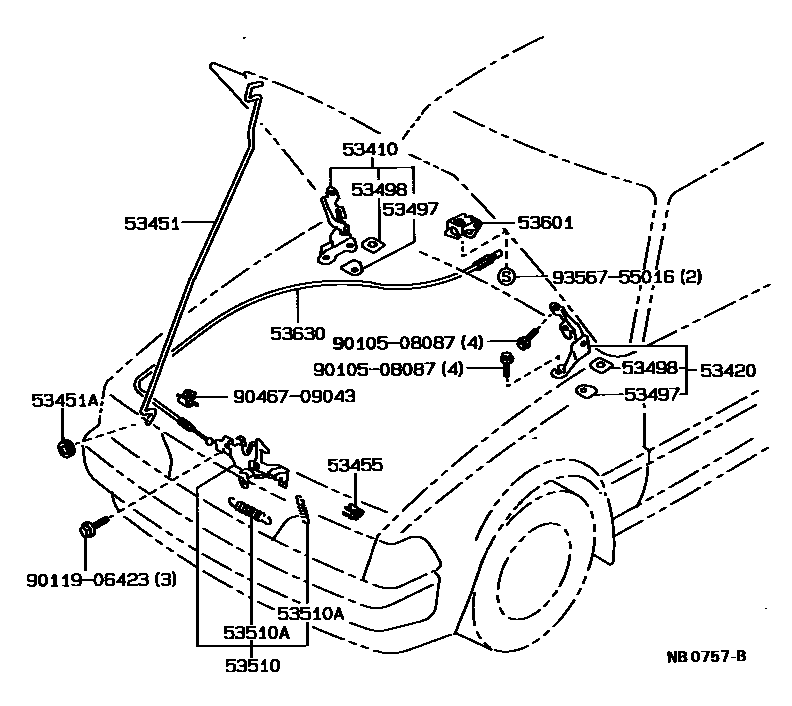

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-20100iAT17#,CT17#,ET176,ST170198805-199211

53420HINGE ASSY, HOOD, LH

main53420-20090iAT17#,CT17#,ET176,ST170198805-199211

53451ROD, HOOD SUPPORT

main53451-20080iAT17#,CT17#,ET176,ST170198805-199211

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15012iAT17#,CT17#,ET176,ST170198805-199211

53455CLAMP, HOOD SUPPORT ROD

main53455-14020iAT17#,CT17#,ET176,ST170198805-199211

53497PAD, HOOD HINGE, NO.1

main53497-20020iAT17#,CT17#,ET176,ST170198805-199211

53498PAD, HOOD HINGE, NO.2

main53498-20010iAT17#,CT17#,ET176,ST170198805-199005

53510LOCK ASSY, HOOD

main53510-20260iAT17#,CT17#,ET176,ST170198805-199211

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iAT17#,CT17#,ET176,ST170198805-199211

main90506-20008iAT17#,CT17#,ET176,ST170198805-199211

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-10020-16iAT17#,CT170,ST170..S,SE,SG,SGEXT,SX199005-199211

SABLE,TRIM4#

main53601-10020-23iAT17#,CT17#,ET176,ST170198805-199005

GRAY,TRIM1#

main53601-10020-24iAT17#,CT170,ST170..S,SE,SG,SGEXT198805-198809

DARK BLUE,TRIM8#

main53601-10020-34iAT17#,CT170,ST170..S,SE,SG,SGEXT199005-199208

DARK BLUE,TRIM8#

main53601-10020-B1iAT170,171,CT17#..DX,GLIM,SV; CT176..SG; ET176199005-199008

SHADOW GRAY,SHADOW GRAY,TRIM1#

main53601-10020-J0iAT17#,CT170,ST170..S,SE,SG,SGEXT198809-199005

DARK BLUE,TRIM8#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-20290iAT17#,CT17#,ET176,ST170198805-199005

main53630-20370iAT17#,CT17#,ET176,ST170199005-199211

9010508087

main90105-08087

9011906423

main90119-06423

9046709043

main90467-09043

9356755016

main93567-55016

15 parts on this diagram · 1 diagram in section
