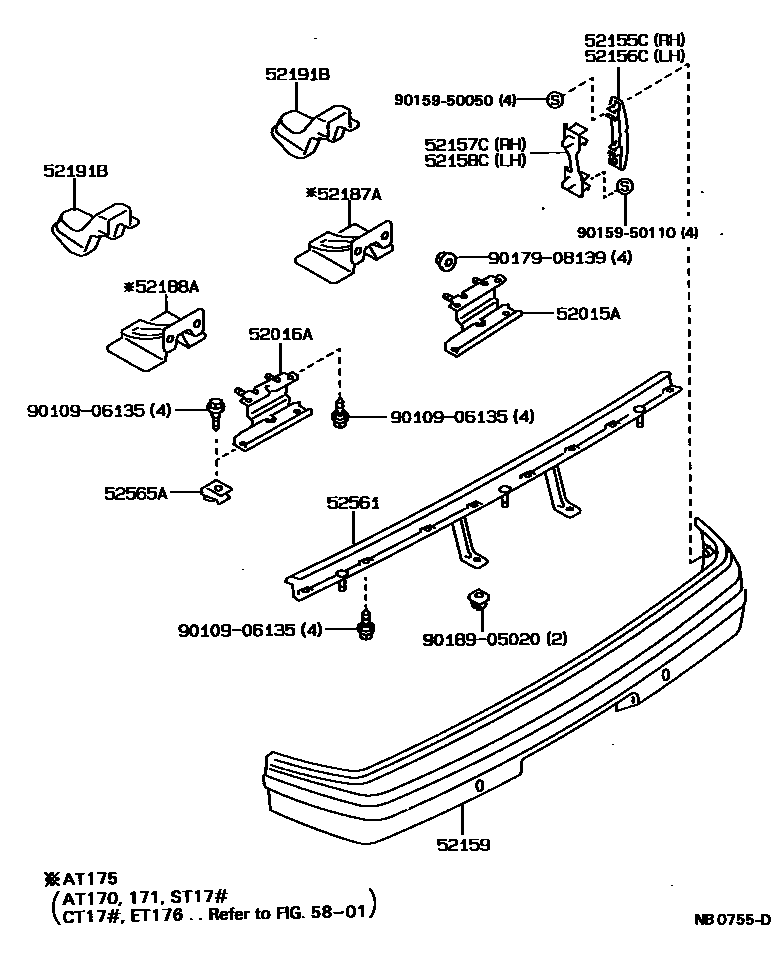

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-20210iAT17#,CT170,ST170..SED198805-199208

main52181-95502iAT170,CT170,ST170..WG198805-199211

main52181-95503iCT176,ET176198805-199211

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-20090iAT17#,CT170,ST170..SED198805-199208

main52181-95502iAT170,CT170,ST170..WG198805-199211

main52182-95501iCT176,ET176198805-199211

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-20200iAT17#,CT170,ST170..SED198805-199208

main52155-95500iAT170,CT17#,ET176,ST170..VAN,WG198805-199211

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52155-20200iAT17#,CT170,ST170..SED198805-199208

main52155-95500iAT170,CT17#,ET176,ST170..VAN,WG198805-199211

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-20080iAT17#,CT170,ST170..SED198805-199208

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52157-20080iAT17#,CT170,ST170..SED198805-199208

52159COVER, REAR BUMPER

main52159-20470iAT175..SG;AT170..DX..EFI;AT170..(DX,SG)..CBR198805-199208

main52159-20480-02iAT170..SG198903-198908

SUPER RED 2,3E5

main52159-20480-03iCT170..SG198805-199005

main52159-20480-04iAT170,175..SE,SGEXT198805-199208

DARK BLUE MICA M,DARK BLUE MICA M,8E9

main52159-20480-07iCT170;AT17#,ST170..GLIM,S,SE,SGEXT198908-199005

GRAYISH GREEN M,6K6

main52159-20480-08iAT17#,CT170,ST170..S,SG,SGEXT198805-199208

main52159-20480-12iCT170;AT17#,ST170..GLIM,S,SE,SGEXT198805-199005

RED MICA,3H4

main52159-20480-17iAT170,175,CT170,ST170..SG,SGEXT199005-199208

PASTEL AQUA M,745

main52159-20480-22iAT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT199005-199208

RED MICA,3J9

main52159-20490-02iAT170..(4FC,5F)..SG198805-199005

sub52159-20938

main52159-20490-03iAT170..(4FC,5F)..SG198805-199005

sub52159-20938

main52159-20490-04iAT170..(4FC,5F)..SGEXT;AT170..(4FC,5F)..SG..CBR198805-199208

sub52159-20938

main52159-20490-07iAT170..(4FC,5F)..SG198908-199005

sub52159-20938

main52159-20490-08iAT170..(4FC,5F)..SGEXT;AT170..(4FC,5F)..SG..CBR198805-199208

sub52159-20938

main52159-20490-12iAT170..(4FC,5F)..SG198805-198908

sub52159-20938

main52159-20490-17iAT170..(4FC,5F)..SGEXT199005-199208

sub52159-20938

main52159-20490-22iAT170..(4FC,5F)..SGEXT199005-199208

sub52159-20938

main52159-20500-03iCT170..SE198805-199005

main52159-20500-05iCT170198908-199005

main52159-20500-06iAT170..SG198903-198908

BROWN M,4H2

main52159-20500-07iAT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT199005-199208

main52159-20500-08iAT175..SGEXT198805-199005

SUPER WHITE 2,TRIM1#,8#&040

main52159-20500-13iAT170,CT170..SG198805-198903

DARK GRAY MICA,175

main52159-20500-17iAT17#,CT170,ST170..GLIM,SE199005-199208

main52159-20500-18iAT170,CT170,ST170..SE198805-198908

main52159-20500-23iAT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT199005-199208

main52159-20500-28iAT171,175..GLIM,S,SGEXT198908-199005

main52159-20500-33iAT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT199005-199208

main52159-20500-38iCT170..SE199012-199204

SUPER WHITE 2,TRIM1#,8#&040

main52159-20500-48iCT170..SE199012-199204

main52159-20510-05iAT170..(4FC,5F)..SG198908-199005

main52159-20510-06iAT170..(4FC,5F)..SG198805-198908

main52159-20510-07iAT170..(4FC,5F)..SGEXT199005-199208

main52159-20510-13iAT170..(4FC,5F)..SG198805-199005

main52159-20510-23iAT170..(4FC,5F)..SGEXT199005-199208

main52159-20510-33iAT170..(4FC,5F)..SGEXT199005-199208

main52159-20550-02iAT170..(4FC,5F)..SGEXT199005-199208

sub52159-20939

main52159-20550-04iAT170..(4FC,5F)..SGEXT199005-199208

sub52159-20939

main52159-20550-07iAT170..(4FC,5F)..SGEXT199005-199208

sub52159-20939

main52159-20550-08iAT170..(4FC,5F)..SGEXT199005-199208

sub52159-20939

main52159-20650-03iAT170..(4FC,5F)..SGEXT199005-199208

main52159-20650-07iAT170..(4FC,5F)..SGEXT199005-199208

main52159-20650-08iAT170,175,CT170,ST170..SE199005-199208

main52159-20650-13iAT170..(4FC,5F)..SGEXT199005-199208

main52159-20650-17iAT17#,CT170,ST170..GLIM,SE199005-199208

main52159-20650-18iAT170,175,CT170,ST170..SE199005-199208

main52159-95502iAT170,CT17#,ET176..VAN,WG198805-199211

main52159-95503-02iAT170,ST170..WG198805-199005

RED MICA,3H4

main52159-95503-03iAT170,ST170..WG198805-199005

GRINISH SILVER M,174

main52159-95503-04iAT170,CT170,ST170..WG198805-199211

DARK BLUE MICA M,8E9

main52159-95503-05iAT170,ST170..WG198908-199005

BEIGE M,4K1

main52159-95503-06iAT170,ST170..WG198805-198908

BR0WN M,4H2

main52159-95503-07iAT170,CT170,ST170..WG199005-199211

PASTEL AQUA M,745

main52159-95503-08iAT170,CT170,ST170..WG198805-199211

SUPER WHITE 2,040

main52159-95503-12iAT170,CT170,ST170..WG199005-199211

RED MICA,3J9

main52159-95503-13iST170..SX198905-198906

main52159-95503-H0iST170..SX199105-199107

52187AREINFORCEMENT, REAR BUMPER ARM, RH

main52187-20070iAT175198808-199208

52188AREINFORCEMENT, REAR BUMPER ARM, LH

main52188-20050iAT175198808-199208

52191BGROMMET, REAR BUMPER STAY

main52191-20040×2iST170..SGEXT..CI;AT170,171,CT170..(DX,S,SG)..(CBR,DSL,EFI)198805-199208

main52191-20050×2iAT175..SG199005-199208

52561RETAINER, REAR BUMPER, UPPER CENTER

main52305-20020iAT17#,CT170,ST170..SED198805-199208

main52305-20030iAT170..(4FC,5F)..SGEXT199005-199208

main52561-95501iAT170,CT17#,ET176,ST170..VAN,WG198805-199211

52565ARETAINER, REAR BUMPER, LOWER

main52565-20130×4iAT17#,CT170,ST170..SED198805-199208

5801

9010906135

main90109-06135

9015950050

main90159-50050

9015950110

main90159-50110

9017908139

main90179-08139

9018905020

main90189-05020

18 parts on this diagram · 2 diagrams in section
