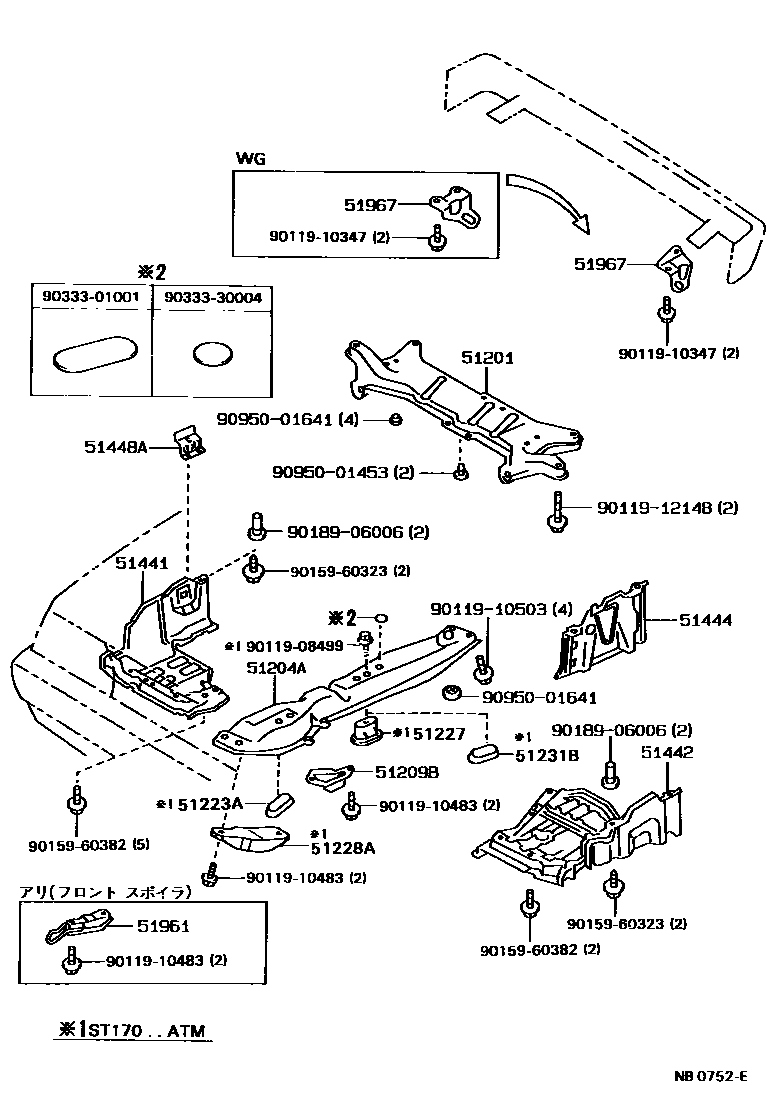

SUSPENSION CROSSMEMBER & UNDER COVER
51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT
51223ACOVER, ENGINE MOUNTING HOLE
sub51223-20030
51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER
51228AWEIGHT, FRONT SUSPENSION MEMBER DAMPER, LH
sub51228-20050
51231BSEAL, FRONT SUSPENSION MEMBER WEIGHT
51441COVER, ENGINE UNDER, NO.1
51442COVER, ENGINE UNDER, NO.2
51444COVER, ENGINE UNDER, REAR LH
51448ACOVER, ENGINE SIDE UNDER, RH
51961HOOK, NO.1
51967HOOK, TRANSPORT, REAR
9011908499
main90119-08499
9011910347
main90119-10347
9011910483
main90119-10483
9011910503
main90119-10503
9011912148
main90119-12148
9015960323
main90159-60323
9015960382
main90159-60382
9018906006
main90189-06006
9033301001
main90333-01001
9033330004
main90333-30004
9095001453
main90950-01453
9095001641
main90950-01641
25 parts on this diagram · 4 diagrams in section
