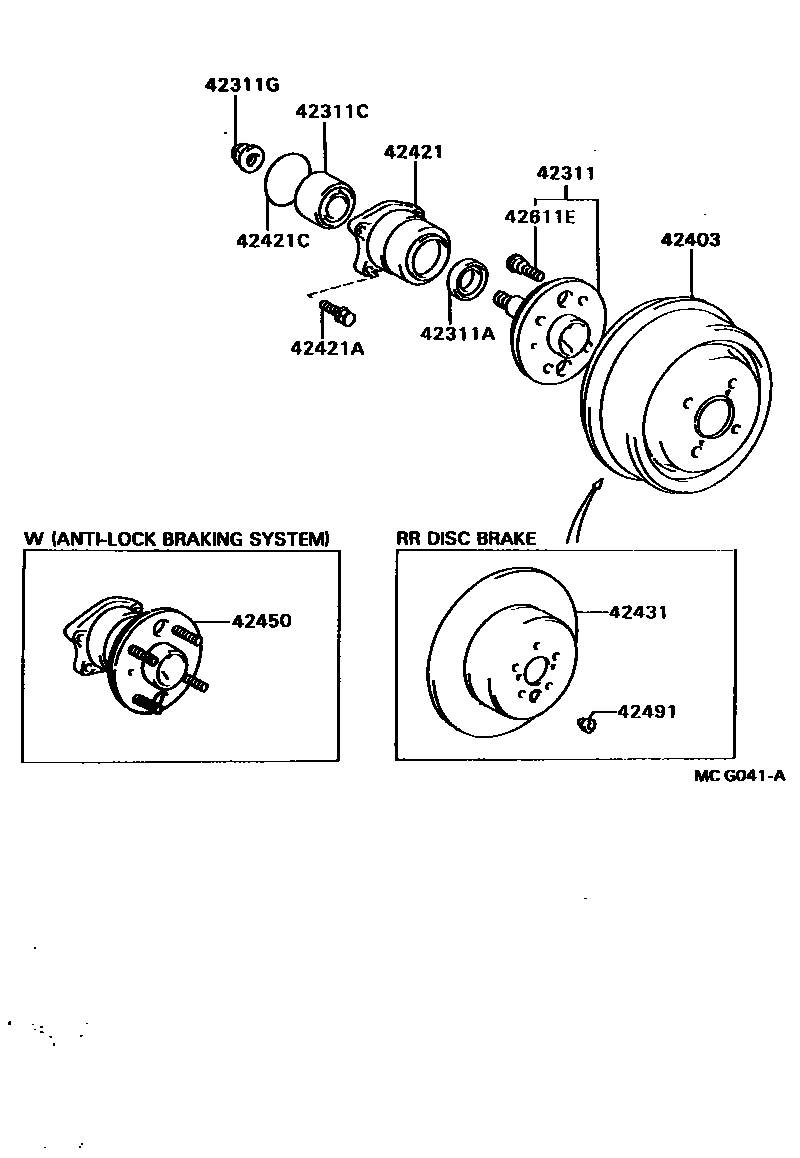

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42311SHAFT, REAR AXLE

main42301-20070iAT175198808-199208

main42301-20080iAT170,CT170,ST170..WG..(DSL,EFI)198805-199211

main42301-32020iAT171..GLIM198805-199208

main42301-32031iAT171..EFIS;AT171..GLIM198805-199208

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42018iAT170,ST170..SE,SG,SGEXT199005-199208

main90311-42018iAT170,CT170,ST170..WG198805-199211

main90311-48001iCT176,ET176198805-199211

main90311-52005iAT175198808-199208

main90311-56007iAT175198808-199208

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-30044iAT170,171,CT170,ST170198805-199211

main90369-38003iAT175198808-199208

42311GNUT(FOR REAR AXLE SHAFT)

main90170-19001iAT175198808-199101

main90179-20003iAT17#,CT170,ST170198805-198807

main90179-20017iAT170..CBR;ST170..SX..CI;AT170,171,CT170,ST170..SED..(CI,DSL,EFI,EFIS)198807-199211

main90179-22020iAT175199101-199208

42403DRUM SUB-ASSY, REAR BRAKE

main42403-20040iCT176,ET176198805-199211

main42431-20080iAT170,171,CT170,ST170..(DX,S,SE,SG,SGEXT,SV,SX)..(CBR,CI,DSL,EFI)198805-199211

main42431-32020iAT171..EFIS199005-199208

42421CASE, REAR AXLE BEARING

main42421-20020iAT170..CBR;ST170..SX..CI;AT170,171,CT170,ST170..SED..(CI,DSL,EFI,EFIS)198805-199211

42421ABOLT (FOR REAR AXLE BEARING CASE)

main90105-10124iAT170,171,CT170,ST170198805-199211

42421CRING, O (FOR REAR AXLE BEARING CASE)

main90301-63003iAT170,171,CT170,ST170198805-199211

42431DISC, REAR

main42431-20090iAT171..GLIM198805-199208

main42431-20100iAT175198808-199208

42450HUB & BEARING ASSY, REAR AXLE

main42450-20010iST170..SE..CI;AT170..SG..EFI;AT170,171,ST170..(S,SE,SGEXT)..(CBR,EFI)198808-199208

main42450-20030iAT171..EFIS199005-199208

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iAT175198805-199208

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047iAT171..EFIS198805-199208

main90942-02047iAT170..CBR;ST170..SX..CI;AT170..SED..EFI;AT171,CT17#,ET176,ST170..(DX,S,SE,SG,SGEXT,STD)..(CBR,CI,DSL,EFI)198805-199211

12 parts on this diagram · 4 diagrams in section
