INJECTION NOZZLE

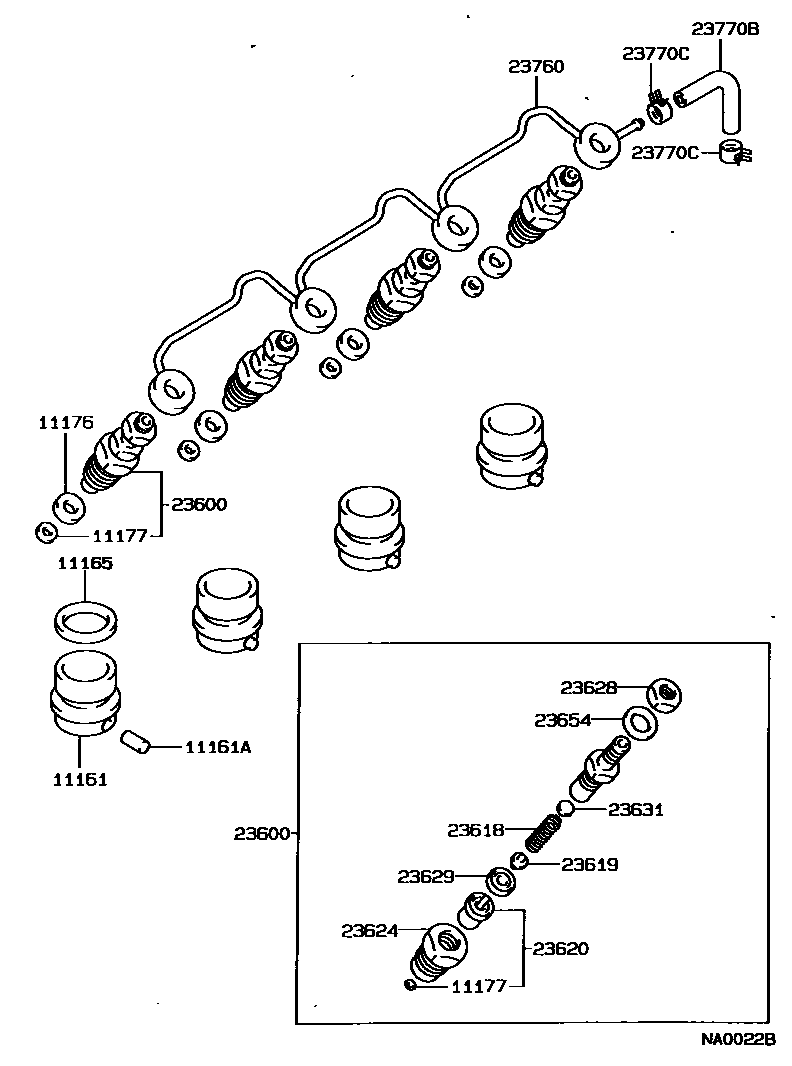

Parts diagram
11161CHAMBER, COMBUSTION
main11161-64080i198805-199211
11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)
main90250-02046i198805-199211
11165SHIM(FOR COMBUSTION CHAMBER)
main11165-64010i198805-199211
sub11165-64011
main11166-64010i198805-199211
sub11166-64011
11176SEAT, INJECTION NOZZLE
main11176-64010i198805-199211
11177GASKET, INJECTION NOZZLE SEAT
main11177-64010i198805-199211
23600HOLDER & NOZZLE SET, NOZZLE
main23600-69055i198805-199211
23618SPRING, NOZZLE HOLDER PRESSURE
main23618-64020i198805-199211
23619PIN, NOZZLE HOLDER PRESSURE
main23619-64010i198805-199211
23620NOZZLE ASSY
main23620-69045i198805-199211
23624NUT, NOZZLE RETAINING
main23624-64040i198805-199211
sub23624-64041
23628NUT(FOR RING PACKING SETTING)
main23628-64010i198805-199211
23629PIECE, DISTANCE(FOR NOZZLE)
main23629-64010i198805-199211
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
main23631-64010i198805-199211
main23631-64011i198805-199211
main23631-64012i198805-199211
main23631-64013i198805-199211
main23631-64014i198805-199211
main23631-64015i198805-199211
main23631-64016i198805-199211
main23631-64017i198805-199211
main23631-64018i198805-199211
main23631-64019i198805-199211
main23632-64010i198805-199211
main23632-64011i198805-199211
main23632-64012i198805-199211
main23632-64013i198805-199211
main23632-64014i198805-199211
main23632-64015i198805-199211
main23632-64016i198805-199211
main23632-64017i198805-199211
main23632-64018i198805-199211
main23632-64019i198805-199211
main23633-64010i198805-199211
main23633-64011i198805-199211
main23633-64012i198805-199211
main23633-64013i198805-199211
main23633-64014i198805-199211
main23633-64015i198805-199211
main23633-64016i198805-199211
main23633-64017i198805-199211
main23633-64018i198805-199211
main23633-64019i198805-199211
main23634-64010i198805-199211
main23634-64011i198805-199211
main23634-64012i198805-199211
main23634-64013i198805-199211
main23634-64014i198805-199211
main23634-64015i198805-199211
main23634-64016i198805-199211
main23634-64017i198805-199211
main23634-64018i198805-199211
main23634-64019i198805-199211
main23635-64010i198805-199211
main23635-64011i198805-199211
main23635-64012i198805-199211
23654WASHER(FOR RING PACKING)
main23654-64010i198805-199211
23760PIPE ASSY, NOZZLE LEAKAGE
main23761-64030i198805-199211
23770BHOSE, FUEL
main23274-64010i198805-199211
23770CCLAMP OR CLIP(FOR FUEL HOSE SET)
main90467-11076i199103-199211
main96132-30400i198805-199103
sub96132-51000

17 parts on this diagram · 1 diagram in section
