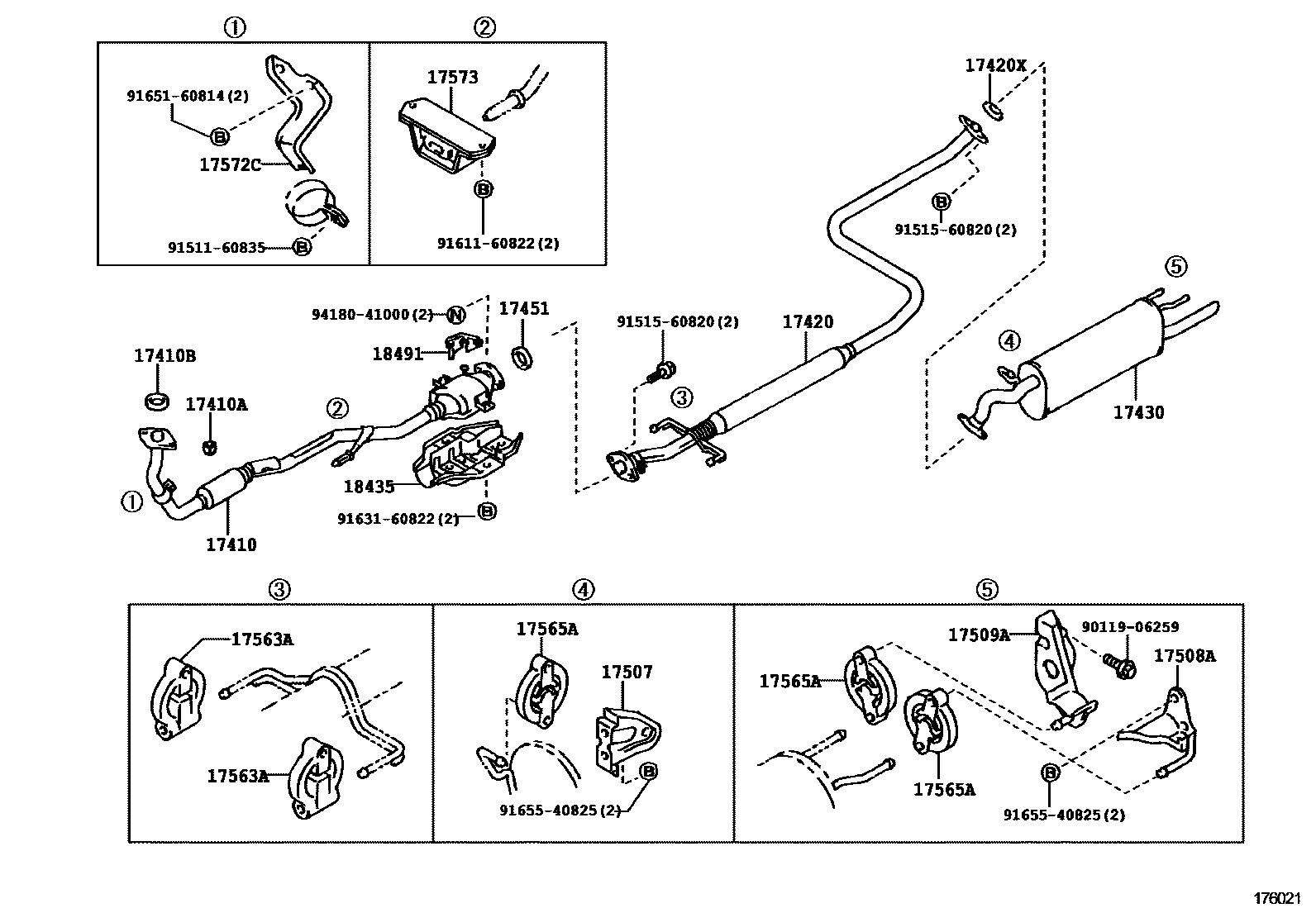

EXHAUST PIPE

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-11340i3E..ET176198805-198911

main17410-11380i3E..ET176198911-199211

main17410-15250i4AFE,5AF#..AT170,171198805-199211

main17410-16460i4AGE..AT171198805-199208

main17410-16620i4AFE..AT175..5F198808-199208

main17410-16650i4AFE..AT175..4FC198808-199208

main17410-16790i4AFHE..AT171199005-199208

main17410-64300i2C..CT170198805-198911

main17410-64301i2C..CT170198911-199104

main17410-64302i2C..CT170199104-199211

main17410-64320i2C..CT176198805-198911

main17410-64321i2C..CT176198911-199104

main17410-64322i2C..CT176199104-199211

main17410-74410i4SF#..ST170198805-199211

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×3i4AFHE,4AGE..AT171198805-199208

17410BGASKET, EXHAUST PIPE

main90917-06004×2i4AGE..AT171198805-199005

main90917-06012i4SFI..ST170198805-199005

main90917-06039i3E..ET176198911-199005

main90917-06045i4SFE..ST170199104-199211

main90917-06047i4SFE..ST170199005-199104

17420PIPE ASSY, EXHAUST, CENTER

main17420-11100i3E..ET176198805-198911

main17420-11150i3E..ET176198911-199211

main17420-15100i4AFE,5AF..AT170,171198805-199004

main17420-15101i4AFE,5AF..AT170,171199004-199005

main17420-15120i5AFE..AT170199005-199211

main17420-16270i4AGE..AT171198805-199004

main17420-16271i4AFHE,4AGE..AT171199004-199208

main17420-16300i4AFE..AT175198808-198911

main17420-16301i4AFE..AT175198911-199208

main17420-74261i4SFI..ST170198805-198909

main17420-74262i4SF#..ST170198909-199211

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06004i4AFE,5AF,3E..AT17#,ET176198805-198911

main90917-06012i4AGE,4SFI..AT171,ST170198805-199005

main90917-06039i3E..ET176198911-199005

main90917-06045i4AFHE,4AGE,4SFE..AT171,ST170199104-199208

main90917-06047i4AFHE,4AGE,4SFE..AT171,ST170199005-199104

17430PIPE ASSY, EXHAUST, TAIL

main17430-11280i3E..ET176198805-198911

main17430-11460i3E..ET176198911-199211

main17430-15430i4AFE,5AF..AT170,171..SED198805-198909

main17430-15431i4AFE,5AF..AT170,171..SED198909-199005

main17430-15440i5AF..AT170..SV198805-198909

main17430-15441i5AF..AT170..SV198909-199005

main17430-15510i5AFE..AT170..SED199005-199208

main17430-15520i5AFE..AT170..SV199005-199211

main17430-16650i4AGE..AT171198805-198911

main17430-16651i4AFHE,4AGE..AT171198911-199208

main17430-16660i4AFE..AT175198808-198911

main17430-16661i4AFE..AT175198911-199005

main17430-1A090i4AFE..AT175199005-199208

main17430-64470i2C..CT170198805-198911

main17430-64471i2C..CT170..SED198911-199208

main17430-64490i2C..CT176198805-198910

main17430-64580i2C..CT176198911-199211

main17430-64590i2C..CT170..SV199005-199211

main17430-74400i4SFI..ST170..SED198805-198911

main17430-74401i4SFI..ST170..SED198911-199005

main17430-74480i4SFI..ST170..SX198805-198909

main17430-74481i4SFI..ST170..SX198909-199005

main17430-74770i4SFE..ST170..SED199005-199208

main17430-74860i4SFE..ST170..SX199005-199211

17451GASKET, EXHAUST PIPE

main90917-06004i4AFE,5AF,2C,4SFI..AT17#,CT17#,ST170198805-199005

main90917-06012×2i4AGE..AT171198805-199005

main90917-06039i3E..ET176198911-199005

main90917-06041i4AFHE..AT171199005-199208

main90917-06045i4AFHE..AT171199104-199208

main90917-06047i4AFHE..AT171; 4AGE..AT171199005-199104

17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT

main17507-11030i2C,3E..CT176,ET176198805-199211

main17507-64030i2C..CT170198805-199211

17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT

main17508-11030i2C,3E..CT176,ET176198805-199008

main17508-64030i2C..CT176..4FC199008-199211

main17508-74020i4AFE..AT175198808-199208

17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT

main17509-11030i2C,3E..CT176,ET176..3FC,4F,5F199008-199211

main17509-63060i4AF#,4AGE,5AF#,2C,4SF#..AT170,171,CT170,ST170198805-199211

main17509-64010i2C..CT176..4FC199008-199211

main17509-74040i4AFE..AT175198808-199208

17563ASUPPORT, EXHAUST PIPE, NO.3

main17563-64050i2C..CT176198805-199211

main17565-11100i2C..CT170198805-199211

main17565-15050×3i2C..CT170; 2C..CT176; 4A#,5AF,3E,4SFI..AT170,171,ET176,ST170198805-198905

main17565-15070×2i2C..CT170; 2C..CT176; 4AF#,4AGE,5AF#,3E,4SF#..AT170,171,ET176,ST170198905-199211

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-11100i4AFE..AT175198808-199208

main17565-63020i4AF#,4AGE,5AF#,2C,4SF#..AT170,171,CT170,ST170198805-199211

main17565-63030×3i2C,3E..CT176,ET176198805-199005

main17565-63120×2i4AFE..AT175198808-199208

17572CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-11110i3E..ET176198805-198911

main17571-64160i2C..CT17#198805-199211

17573BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER

main17573-74020i4AF#,4AGE,5AF#,3E,4SF#..AT17#,ET176,ST170198805-199211

18435PROTECTOR, CATALYTIC CONVERTER

main18407-11010i3E..ET176198805-198911

18491FLANGE, THERMOSENSOR INLET

main18491-63010i4AFHE,4AGE..AT171198805-199208

main18491-72010i3E..ET176198805-198911

9011906259

main90119-06259

9151160835

main91511-60835

9151560820

main91515-60820

9161160822

main91611-60822

9163160822

main91631-60822

9165160814

main91651-60814

9165540825

main91655-40825

9418041000

main94180-41000

24 parts on this diagram · 6 diagrams in section
