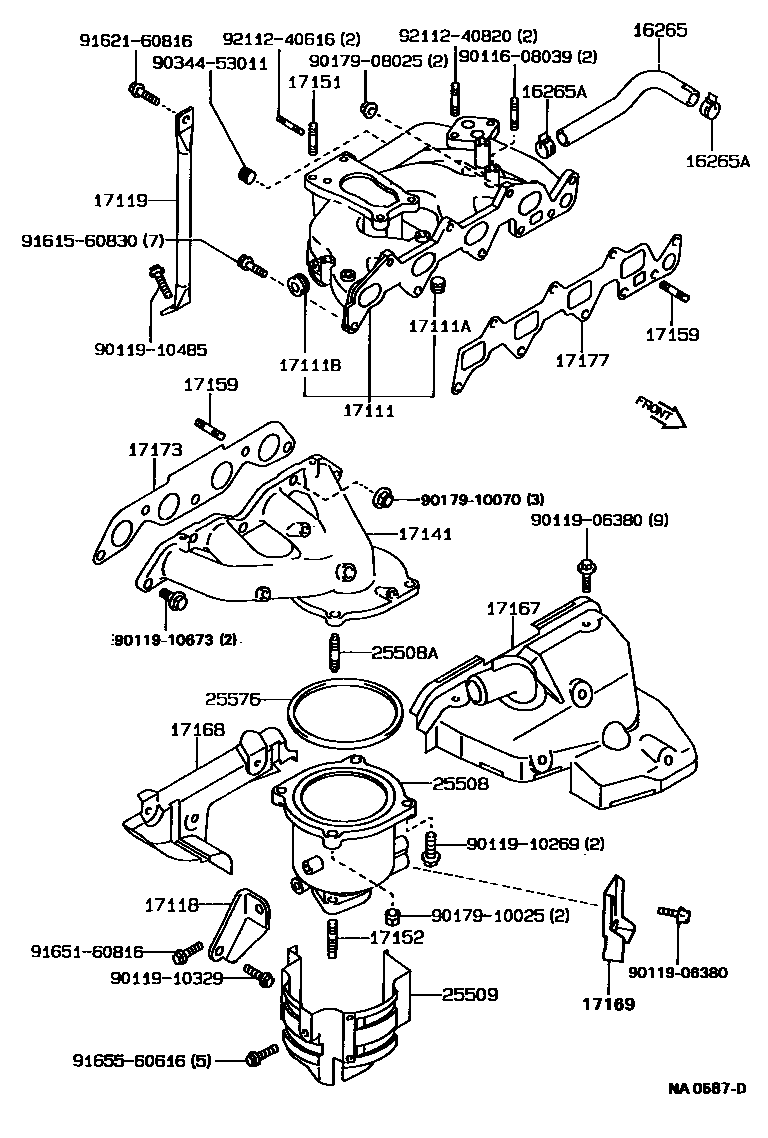

MANIFOLD
16265HOSE, INTAKE MANIFOLD WATER
16265ACLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
17111MANIFOLD, INTAKE
17111APLUG, NO.1
17111BPLUG, NO.2
17118STAY, MANIFOLD
NO.1
NO.2
NO.1
17119STAY, MANIFOLD, NO.2
17141MANIFOLD, EXHAUST
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD
INTAKE MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD
NO.1EXHAUST MANIFOLD
NO.2EXHAUST MANIFOLD
INTAKE MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD
INTAKE MANIFOLD
INTAKE MANIFOLD
INTAKE MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17169INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
25508CONVERTER SUB-ASSY, MANIFOLD
25508ABOLT, STUD(FOR MANIFOLD CONVERTER)
25509INSULATOR SUB-ASSY, MANIFOLD CONVERTOR
25576GASKET, MANIFOLD CONVERTER
9011608039
main90116-08039
9011906380
main90119-06380
9011910269
main90119-10269
9011910329
main90119-10329
9011910485
main90119-10485
9011910673
main90119-10673
9017908025
main90179-08025
9017910025
main90179-10025
9017910070
main90179-10070
9034453011
main90344-53011
9161560830
main91615-60830
9162160816
main91621-60816
9165160816
main91651-60816
9165560616
main91655-60616
9211240616
main92112-40616
9211240820
main92112-40820
36 parts on this diagram · 10 diagrams in section
