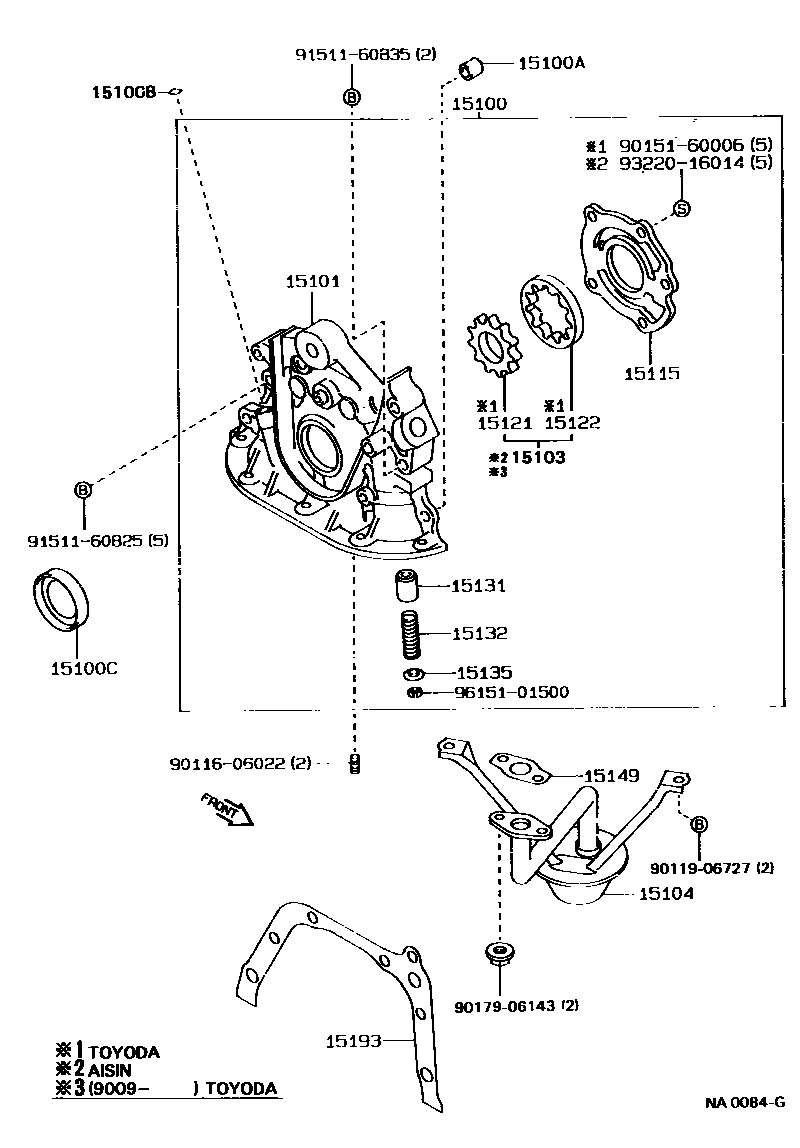

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

15100PUMP ASSY, OIL

main15100-11021i3E..ET176198805-199211

main15100-15050i4AF#,5AF#..AT17#198805-199211

main15100-19025i4AGE..AT171198805-198908

sub15100-19026

main15100-19035i4AGE..AT171198908-198912

sub15100-19036

main15100-19036i4AGE..AT171198912-199208

main15100-64021i2C..CT17#198805-198905

sub15100-64040

main15100-64040i2C..CT17#198905-199211

sub15100-64041

sub90119-08B81

main15100-74010i4SF#..ST170198805-199211

sub15100-74060

sub15197-74040

15100APIN, RING(FOR OIL PUMP SET)

main90253-09001i3E..ET176198805-199211

main90253-11021i2C..CT17#198805-199211

15100BRING, O(FOR OIL PUMP)

main15188-63010i4SF#..ST170198805-199211

main90301-62006i3E..ET176198909-199211

main96711-19010i4AF#,5AF#..AT17#198805-199105

main96721-19010i4AF#,5AFE..AT17#199105-199211

main96721-24063i3E..ET176198805-198909

15100CSEAL(FOR OIL PUMP)

main15165-70010i4SF#..ST170198805-199211

main90029-21007i2C..CT17#198805-199211

sub90029-21020

main90029-21014i2C..CT17#198905-199005

sub90029-21022

main90029-21022i2C..CT17#199005-199211

sub04151-64010

sub04151-64020

main90311-32001i4A#,5AF..AT17#198805-198911

sub90311-32018

main90311-32018i4AF#,4AGE,5AF#..AT17#198911-199211

sub90311-32020

15101BODY SUB-ASSY, OIL PUMP

main15011-15050i4AF#,5AF#..AT17#198805-199211

main15101-15040i4AF#,5AF#..AT17#198805-199211

TOYODA KOUKI

main15101-64011i2C..CT17#198805-198808

sub15100-64030

sub15100-64040

main15101-64012i2C..CT17#198808-198905

sub15100-64030

sub15100-64040

main15101-64030i2C..CT17#198905-199211

sub15100-64031

sub15100-64042

sub90119-08B81

15103GEAR SET, OIL PUMP

main15103-15020i4AF#,5AF#..AT17#198805-199211

main15103-15020i4AF#,5AFE..AT17#199005-199211

main15103-15H00i4AF#,5AFE..AT17#199009-199211

TOYODA KOUKI

main15103-16030i4AGE..AT171198908-199208

15104STRAINER SUB-ASSY, OIL

main15104-11040i3E..ET176198805-199211

main15104-15080i4AF#,4AGE,5AF#..AT17#198805-199201

sub15104-15090

main15104-15090i4AF#,4AGE,5AFE..AT17#199201-199211

main15104-64021i2C..CT17#198805-199112

sub15104-64060

main15104-64060i2C..CT17#199112-199206

sub15104-64070

main15104-64070i2C..CT17#199206-199211

main15104-88360i4SFI..ST170198805-198912

main15104-88380i4SF#..ST170198912-199211

15115COVER, OIL PUMP

main15115-15020i4AF#,5AF#..AT17#198805-199211

main15115-15020i4AGE..AT171198908-199211

main15115-15030i4AF#,5AF#..AT17#198805-199211

TOYODA KOUKI

sub15115-16060

main15115-16010i4AGE..AT171198805-198908

15121GEAR, OIL PUMP DRIVE

main15121-15040i4AF#,5AF#..AT17#198805-199211

main15121-16010i4AGE..AT171198805-198908

main15121-16030i4AGE..AT171199005-199208

15122GEAR, OIL PUMP DRIVEN

main15122-15040i4AF#,5AF#..AT17#198805-199211

main15122-16010i4AGE..AT171198805-198908

main15122-16030i4AGE..AT171199005-199208

15131VALVE, OIL PUMP RELIEF

main15131-15030i4AF#,5AF#..AT17#198805-199211

TOYODA KOUKI

main15131-24010i4AGE..AT171198805-199211

main15131-64020i2C..CT17#198805-199211

15132SPRING, OIL PUMP RELIEF VALVE

main15132-15030i4AF#,5AF#..AT17#198805-199211

TOYODA KOUKI

main15132-40010i4AGE..AT171198805-199211

main15132-64012i2C..CT17#198808-199211

main15132-76011i2C..CT17#198805-198808

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i4AGE..AT171198805-199211

main15135-15030i4AF#,5AF#..AT17#198805-199211

TOYODA KOUKI

15149GASKET, OIL STRAINER FLANGE

main15149-15010i4A#,5AF..AT17#198805-198912

sub15149-15011

main15149-15011i4AF#,4AGE,5AF#..AT17#198912-199205

sub15149-16010

main15149-16010i4AF#,4AGE,5AFE..AT17#199205-199211

15193GASKET, OIL PUMP

main15193-64021i2C..CT17#198805-199211

sub15193-64022

main15197-15011i4A#,5AF..AT17#198805-198912

sub15197-15012

main15197-15012i4AF#,4AGE,5AF#..AT17#198912-199211

sub15197-15030

main15197-63020i4SFI..ST170198805-198907

sub15197-63021

main15197-63021i4SF#..ST170198907-199211

9011606022

main90116-06022

9011906727

main90119-06727

9015160006

main90151-60006

9017906143

main90179-06143

9151160825

main91511-60825

9151160835

main91511-60835

9322016014

main93220-16014

9615101500

main96151-01500

23 parts on this diagram · 5 diagrams in section
