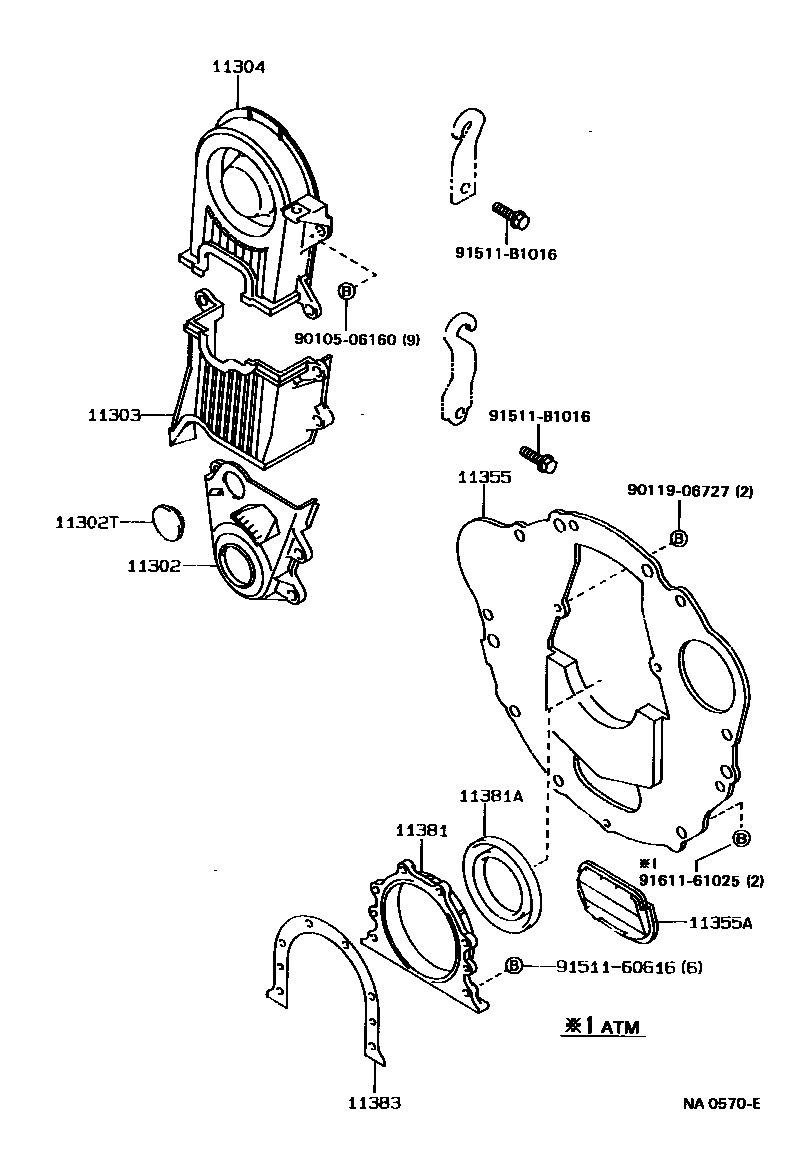

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-11031i3E..ET176198805-199211

main11302-15041i4AF#,5AF#..AT17#198805-199211

main11302-74010i4SFI..ST170198805-198906

sub11302-74011

main11302-74011i4SF#..ST170198906-199211

11302TPLUG, HOLE

main90950-01391i4AF#,5AF#..AT17#198805-199211

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-15040i4AF#,5AF#..AT17#198805-199211

11304COVER, TIMING CHAIN OR BELT, NO.2

main11303-74010i4SF#..ST170198805-199211

main11304-15020i4AF#,5AF#..AT17#198805-199211

11355PLATE, REAR END

main11355-10011i3E..ET176..MTM198805-199211

sub11355-10012

main11355-11011i3E..ET176..3FC198805-199211

sub11355-11012

main11355-15060i4AGE..AT171198805-199208

main11355-15070i4AF#,5AF#..AT170,171..MTM198805-199211

main11355-15080i4AF#,5AF#..AT170,171..4FC198805-199211

main11355-16010i4AFE..AT175198808-199208

main11355-64032i2C..CT17#..5F198805-198904

sub11355-64050

sub11356-64040

main11355-64042i2C..CT170..4FC198805-198904

sub11355-64060

sub11356-64040

main11355-64050i2C..CT17#..5F198904-199110

sub11355-64051

sub90119-06670

main11355-64051i2C..CT17#..5F199110-199211

sub11355-64052

main11355-64060i2C..CT17#..4FC198904-199110

sub11355-64061

sub90119-06670

main11355-64061i2C..CT17#..4FC199110-199211

sub11355-64062

main11355-74010i4SF#..ST170198805-199211

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01264i4AF#,5AF#..AT170,171..4FC198805-199211

main90950-01548i3E..ET176..3FC198805-199211

main90950-01738i2C..CT17#..4FC198910-199005

11381RETAINER, ENGINE REAR OIL SEAL

main11381-10020i3E..ET176198805-199211

main11381-15010i4AF#,4AGE,5AF#..AT17#198805-199211

main11381-63011i4SFI..ST170198805-198907

sub11381-63012

main11381-63012i4SF#..ST170198907-199211

main11381-64012i2C..CT17#198805-199211

sub11381-64020

11381ASEAL, ENGINE REAR OIL

main90311-70004i4AF#,4AGE,5AF#..AT17#198805-199106

sub90311-70007

main90311-70007i4AF#,4AGE,5AFE..AT17#199106-199211

main90311-80007i3E..ET176199005-199108

sub90311-80012

main90311-80007i3E..ET176198805-199005

sub90311-80012

main90311-80012i3E..ET176199108-199211

main90311-80012i3E..ET176199010-199211

main90311-85003i4SF#..ST170198805-199010

sub90311-85006

main90311-85006i4SFE..ST170199010-199211

sub90311-85009

main90311-90003i2C..CT17#198805-199002

sub90311-90005

main90311-90005i2C..CT17#199002-199211

sub90311-90008

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-15010i4A#,5AF..AT17#198805-198912

sub11383-15011

main11383-15011i4AF#,4AGE,5AF#..AT17#198912-199205

sub11383-16010

main11383-16010i4AF#,4AGE,5AFE..AT17#199205-199211

main11383-63010i4SFI..ST170198805-198907

sub11383-63011

main11383-63011i4SF#..ST170198907-199111

sub11383-74021

main11383-74020i4SFE..ST170199111-199202

sub11383-74021

main11383-74021i4SFE..ST170199202-199211

9010506160

main90105-06160

9011906727

main90119-06727

9151160616

main91511-60616

91511B1016

main91511-B1016

9161161025

main91611-61025

14 parts on this diagram · 7 diagrams in section
