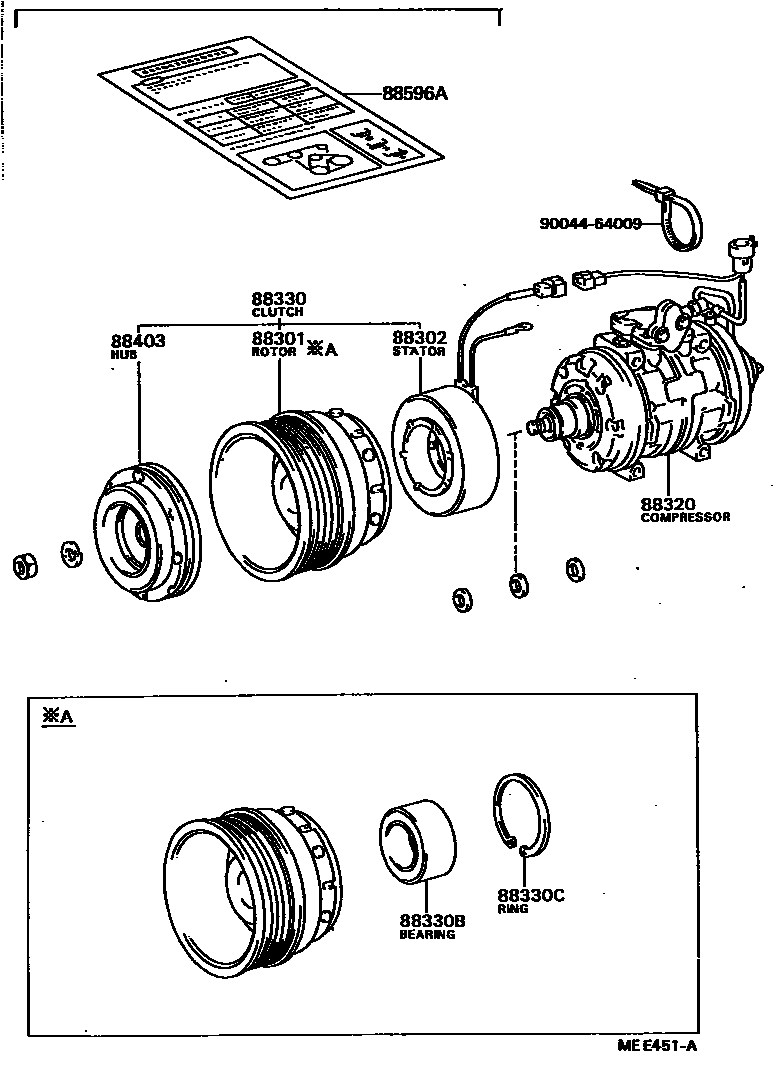

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-14010iAT15#198405-198804

main88412-20080iST150198505-198605

main88412-32010iCT150,ST150198405-198804

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iCT150198405-198804

main88411-20100iAT15#198405-198804

main88411-32010iST150198405-198804

88320COMPRESSOR ASSY, COOLER

main88320-12200iST150198505-198605

sub88320-12201

main88320-12460iAT150198505-198804

main88320-20400iAT15#198405-198505

main88320-20460iST150198605-198804

main88320-20470iCT150198605-198705

sub88320-20560

main88320-20480iAT151198505-198804

main88320-20490iAT160198508-198804

main88320-20500iST162198508-198804

main88320-20520iCT150198505-198605

main88320-20560iCT150198705-198804

main88320-32010iCT150,ST150198405-198505

88330CLUTCH ASSY, MAGNET

main88410-12160iCT150198405-198804

main88410-14170iST162198508-198804

main88410-20170iAT15#198405-198804

main88410-20180iAT160198508-198804

main88410-32010iST150198405-198804

88330BBEARING, MAGNET CLUTCH

main90099-10133iAT15#,CT150,ST150198405-198804

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094iST150198405-198804

main90099-07118iCT150198405-198804

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iAT15#,CT150,ST150198405-198804

sub88403-12030

88596APLATE, CAUTION

main88596-20010iAT15#198505-198804

9004464009

main90044-64009

9 parts on this diagram · 3 diagrams in section
