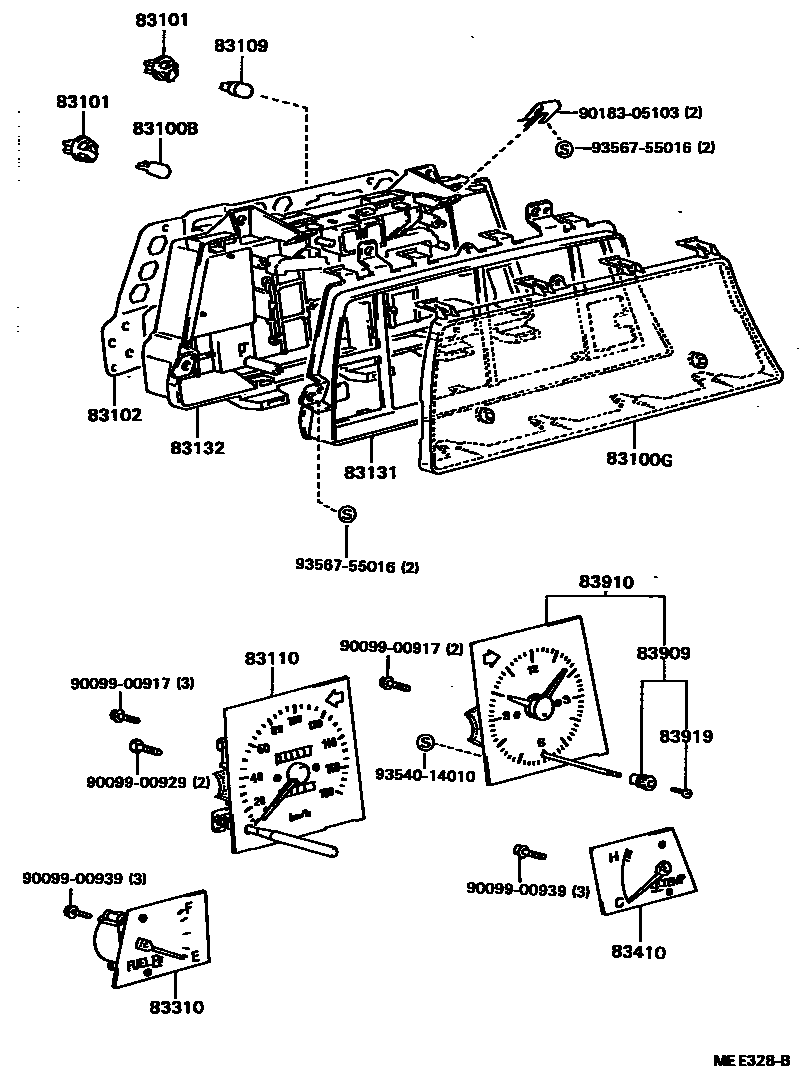

METER

0001 1ANALOG 0002 1ANALOG(W/TACHOMETER) 0006 1DIGITAL 0007 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018×5iAT150..(4FC,5F)..SG198605-198612

main99132-12034×12iAT15#,160,CT150,ST150,162198405-198804

83100GGLASS, COMBINATION METER

main83133-1B250iST150..SE198405-198804

W/DIGITAL SPEEDOMETER

main83138-14870iAT150..4F..DX198405-198804

W/O CLOCK

main83138-14890iST150;AT15#,CT150..DX,SG198405-198605

W/O TACHOMETER

main83138-14910iAT15#,160,CT150,ST150,162..GT,GTR,SE,ST198405-198804

W/TACHOMETER

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×12iAT15#,160,CT150,ST150,162198405-198804

BULB;12V 3.4W

main83101-14040×5iAT150,CT150,ST150..SG198612-198804

BULB;12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-1D350iAT150..4F..DX198405-198804

W/O CLOCK

main83247-1D370iAT150..DX,SG198405-198804

W/CLOCK

main83247-1D390iAT151,ST150..SG198605-198804

W/O TACHOMETER

main83247-1D410iCT150..SG198405-198804

W/O TACHOMETER

main83247-1D430iAT150..SE198405-198507

main83247-1D431iAT150..(4FC,5F)..SG198605-198612

W/TACHOMETER

main83247-1D450iAT151,CT150,ST150..SE,ST198405-198507

W/TACHOMETER

main83247-1D451iAT151,160,CT150,ST150,162..GT,GTR,SE,ST198507-198804

W/TACHOMETER

main83247-1D490iST150..SE198405-198804

W/DIGITAL SPEEDOMETER,LH

main83247-1D510iST150..SE198405-198804

W/DIGITAL SPEEDOMETER,RH

83109BULB, COMBINATION METER, NO.2

main83109-20040×2iST150..SE198405-198804

W/DIGITAL SPEEDOMETER

main83109-20050×5iAT15#,160,CT150,ST150,162198405-198804

83110SPEEDOMETER ASSY

main83110-2B320iST150;AT15#,CT150..DX,SG198405-198605

W/O TACHOMETER

main83110-2B330iAT15#,CT150,ST150..SE,ST198405-198605

W/TACHOMETER

main83110-2B540iAT160,ST162198508-198605

main83110-2B630iAT15#,CT150,ST150..DX,SG198605-198804

W/O TACHOMETER

main83110-2B640iAT150,CT150,ST150..SG198612-198804

W/TACHOMETER

83131DIAL, METER, NO.1

main83131-1D060iST150..SE198405-198804

W/DIGITAL SPEEDOMETER

main83133-1B210iST150;AT15#,CT150..DX,SG198405-198605

W/O TACHOMETER

main83133-1B230iAT150,CT150,ST150..SG198612-198804

W/TACHOMETER

83132CASE, COMBINATION METER

main83132-1D550iAT150..4F..DX198405-198605

W/O CLOCK,W/ORNAMENT

main83132-1D570iAT150..DX,SG198405-198804

W/CLOCK

main83132-1D590iAT151,ST150..SE,SG198405-198605

W/O TACHOMETER

main83132-1D610iCT150..SG198405-198804

main83132-1D630iAT150..SG198410-198605

W/TACHOMETER

main83132-1D650iAT151,ST150..SE,ST198405-198804

W/TACHOMETER

main83132-1D670iCT150..SG198612-198804

W/TACHOMETER

main83132-1D690iST150..SE198405-198804

W/DIGITAL SPEEDOMETER

main83132-1J490iAT160,ST162..4FC198508-198804

main83132-1J850iAT150..4F..DX198605-198804

W/O CLOCK,W/ORNAMENT

main83133-1D650iAT160,ST162..5F198508-198804

83310GAGE ASSY, FUEL RECEIVER

main83243-14650iST150;AT15#,CT150..DX,SG198405-198605

W/O TACHOMETER

main83243-14670iAT15#,160,CT150,ST150,162..GT,GTR,SE,ST198405-198605

W/TACHOMETER

main83243-14810iAT15#,CT150,ST150..DX,SG198605-198804

W/O TACHOMETER

main83243-14830iAT150..DX198709-198804

MY LIFE,W/TACHOMETER

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-1B070iST150;AT15#,CT150..DX,SG198405-198605

W/O TACHOMETER

main83244-1B230iAT15#,CT150,ST150..DX,SG198605-198804

W/O TACHOMETER

83909KNOB, CLOCK

main83909-14012iAT15#,CT150,ST150..DX,SG198605-198804

ANALOGUE CLOCK

main83909-22180iAT150..(4FC,5F)..SG198605-198804

DIGITAL CLOCK

83910CLOCK ASSY

main83910-20390iAT150..DX,SG198605-198804

ANALOGUE

main83910-20400iAT151,ST150..SG198605-198804

ANALOGUE

main83910-20410iCT150..SG198605-198804

ANALOGUE

main83910-20520iAT150..SG198410-198605

DIGITAL

main83910-20550iAT150..DX,SG198405-198605

ANALOGUE

main83910-20560iAT151,ST150..SE,SG198405-198605

ANALOGUE

main83910-20570iCT150..SG198405-198605

ANALOGUE

83919SCREW, CLOCK

main83919-12230iAT150..SG198410-198605

DIGITAL CLOCK

main83919-14012iAT15#,CT150,ST150..DX,SG198605-198804

ANALOGUE CLOCK

9009900917

main90099-00917

9009900929

main90099-00929

9009900939

main90099-00939

9018305103

main90183-05103

9354014010

main93540-14010

9356755016

main93567-55016

19 parts on this diagram · 4 diagrams in section
