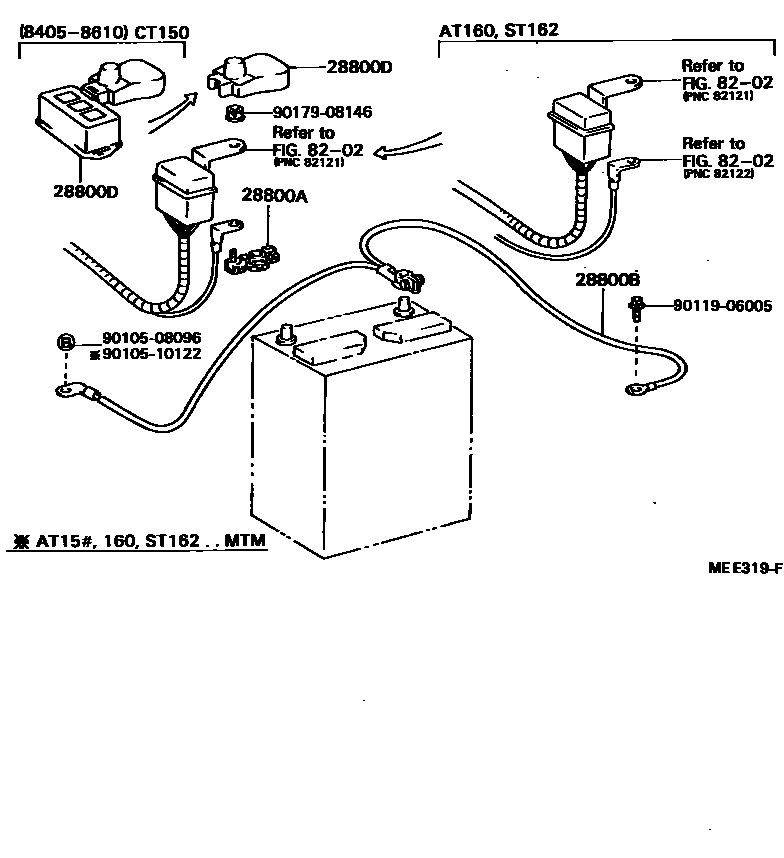

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05028i3ALU,4A#,1SILU,3SGELU..AT15#,160,ST150,162198405-198804

main90982-05030i2CL..CT150198405-198804

28800BCABLE, BATTERY TO GROUND

main82123-20030i3ALU,4A#,1SILU,3SGELU..AT15#,160,ST150,162198611-198804

main82123-20060i3ALU,4A#,1SILU,3SGELU..AT15#,160,ST150,162198405-198611

main82123-20070i2CL..CT150198405-198804

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12190i3ALU,4A#,1SILU,3SGELU..AT15#,160,ST150,162198508-198804

main82821-20120i3ALU,4AELU,1SILU..AT15#,ST150198405-198508

main82821-20130i2CL..CT150198405-198610

main82821-32030i2CL..CT150198610-198804

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508096

main90105-08096

9010510122

main90105-10122

9011906005

main90119-06005

9017908146

main90179-08146

8 parts on this diagram · 1 diagram in section
