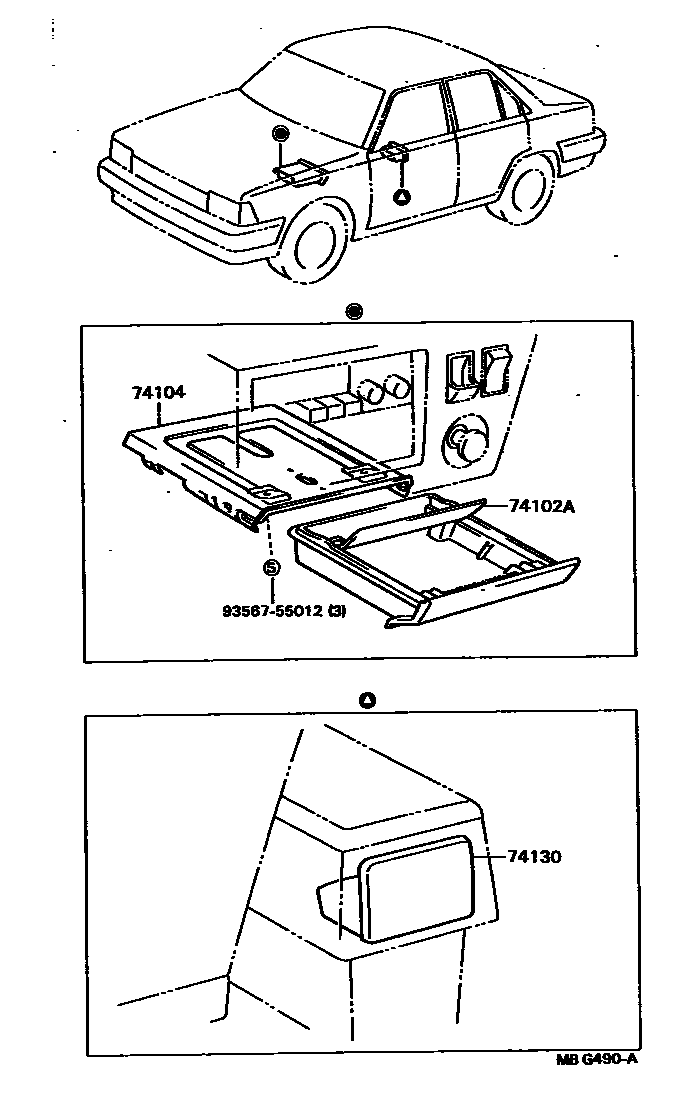

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-20110-03iAT15#,160,CT150,ST150,162; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#

main74102-20110-04iAT15#,CT150,ST150; ST150198405-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main74102-20110-05iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

main74102-20110-06iAT15#,CT150..DX,SG198405-198508

SEPIA BROWN,BROWN,TRIM4#

main74102-20110-13iAT15#,160,CT150,ST150,162198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main74102-20110-14iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-20160iAT15#,160,CT150,ST150,162198405-198804

74130RECEPTACLE ASSY, REAR ASH

main74130-12040-14iAT15#,CT150,ST150; ST150198405-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main74130-12040-23iAT15#,160,CT150,ST150,162; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#

main74130-12040-35iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

main74130-12040-36iAT15#,CT150..DX,SG198405-198508

SEPIA BROWN,BROWN,TRIM4#

main74130-12040-43iAT15#,160,CT150,ST150,162198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main74130-12040-44iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

9356755012

main93567-55012

4 parts on this diagram · 1 diagram in section
