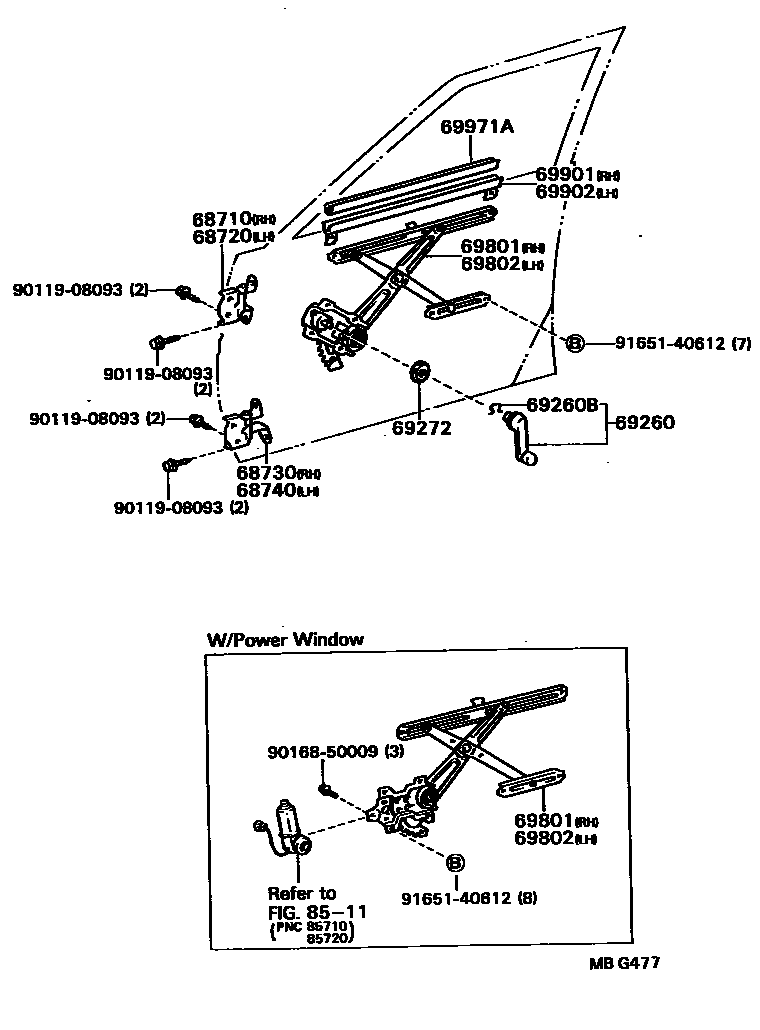

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-14030iAT15#,160,CT150,ST150,162198405-198804

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-14030iAT15#,160,CT150,ST150,162198405-198804

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-14030iAT15#,160,CT150,ST150,162198405-198804

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-14030iAT15#,160,CT150,ST150,162198405-198804

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14020-04×2iAT15#,CT150,ST150; ST150198405-198602

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main69260-14020-10×2iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

main69260-14020-20×2iAT15#,CT150,ST150; ST150198602-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main69260-14020-33×2iAT15#,160,CT150,ST150; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#

main69260-14020-36×2iST150198405-198605

SE-CUSTOM,MY ROAD,SEPIA BROWN,BROWN,TRIM4#

main69260-14020-43×2iAT15#,160,CT150,ST150,162198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main69260-14020-54×2iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iAT15#,160,CT150,ST150198405-198804

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010×2iAT15#,160,CT150,ST150198405-198804

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-20120iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198612-198804

W/*PW

main69810-20100iAT15#,160,CT150,ST150198405-198804

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-20120iAT150..SG198504-198605

MY ROAD,W/*PW

main69820-20100iAT15#,160,CT150,ST150198405-198804

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-20100iAT15#,160,CT150,ST150,162198405-198804

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-20100iAT15#,160,CT150,ST150,162198405-198804

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-22010×2iAT15#,160,CT150,ST150,162198405-198804

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9011908093

main90119-08093

9016850009

main90168-50009

9165140612

main91651-40612

16 parts on this diagram · 1 diagram in section
