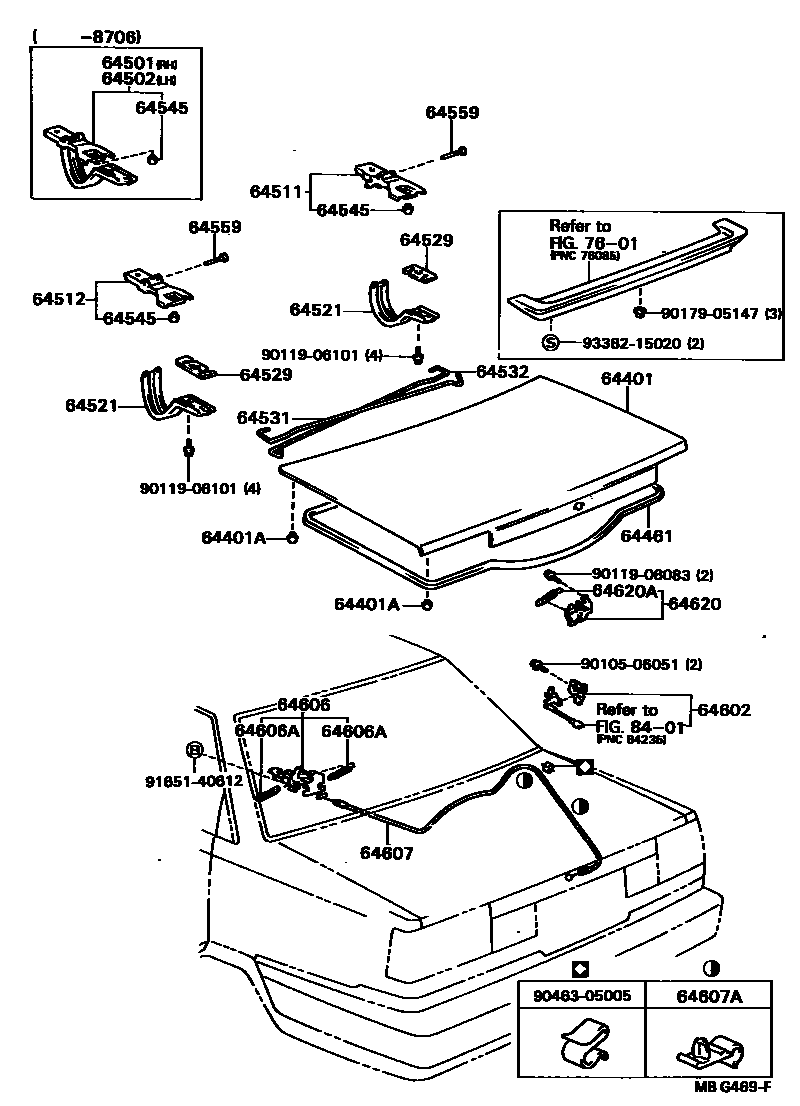

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-20850iAT15#,160,CT150,ST150,162198405-198804

main64401-20870iAT151,160,ST162..GT,GTR,ST198405-198804

W/SPOILER

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06076×2iAT15#,160,CT150,ST150,162198405-198804

FR

main90541-14004×2iAT15#,160,CT150,ST150,162198405-198804

RR

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-20170iAT15#,CT150,ST150198405-198406

main64461-20180iAT15#,CT150,ST150198405-198406

COLD SPEC

main64461-20190iAT15#,160,CT150,ST150,162198406-198804

main64461-20200iAT15#,160,CT150,ST150,162198406-198804

COLD SPEC

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-20080iAT151,160,ST162..GT,GTR,ST198405-198706

W/SPOILER

main64510-20110iAT15#,160,CT150,ST150,162198405-198706

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-20090iAT15#,160,CT150,ST150,162198405-198706

main64520-20100iAT151,160,ST162..GT,GTR,ST198405-198706

W/SPOILER

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-20080iAT15#,160,CT150,ST150,162198706-198804

main64511-20090iAT151..ST; AT160,ST162198706-198804

W/SPOILER

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-20080iAT15#,160,CT150,ST150,162198706-198804

main64512-20090iAT151..ST; AT160,ST162198706-198804

W/SPOILER

64521ARM, LUGGAGE COMPARTMENT DOOR HINGE

main64521-20080×2iAT15#,160,CT150,ST150,162; CT150,ST150,162198706-198804

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-20010iAT15#,160,CT150,ST150,162198405-198804

T=1.0

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-20110iAT15#,160,CT150,ST150,162198405-198605

main64531-20130iAT151,160,ST162..GT,GTR,ST198405-198804

W/SPOILER

main64531-20190iAT15#,160,CT150,ST150,162198605-198804

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-20110iAT15#,160,CT150,ST150,162198405-198605

main64532-20130iAT151,160,ST162..GT,GTR,ST198405-198804

W/SPOILER

main64532-20190iAT15#,160,CT150,ST150,162198605-198804

64545CUSHION, LUGGAGE DOOR HINGE

main90541-07016×2iAT15#,160,CT150,ST150,162198405-198804

64559PIN, LUGGAGE DOOR HINGE

main64559-22010×2iAT15#,160,CT150,ST150,162198706-198804

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-12070iAT150,CT150,ST150,162..GTR,SE198605-198804

main64621-12060iAT15#,160,CT150,ST162..DX,GT,GTR,SG,ST; AT150..SE; ST150198405-198605

SE-CUSTOM,MY ROAD

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-14030iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198405-198804

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004×2iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198405-198804

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-20160iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198405-198804

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010×2iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198405-198804

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20070iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198405-198804

main64610-20080iAT150..DX198405-198804

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08001iAT15#,160,CT150,ST150,162198405-198804

7601MUDGUARD & SPOILER

→ Go to FIG 76-01
