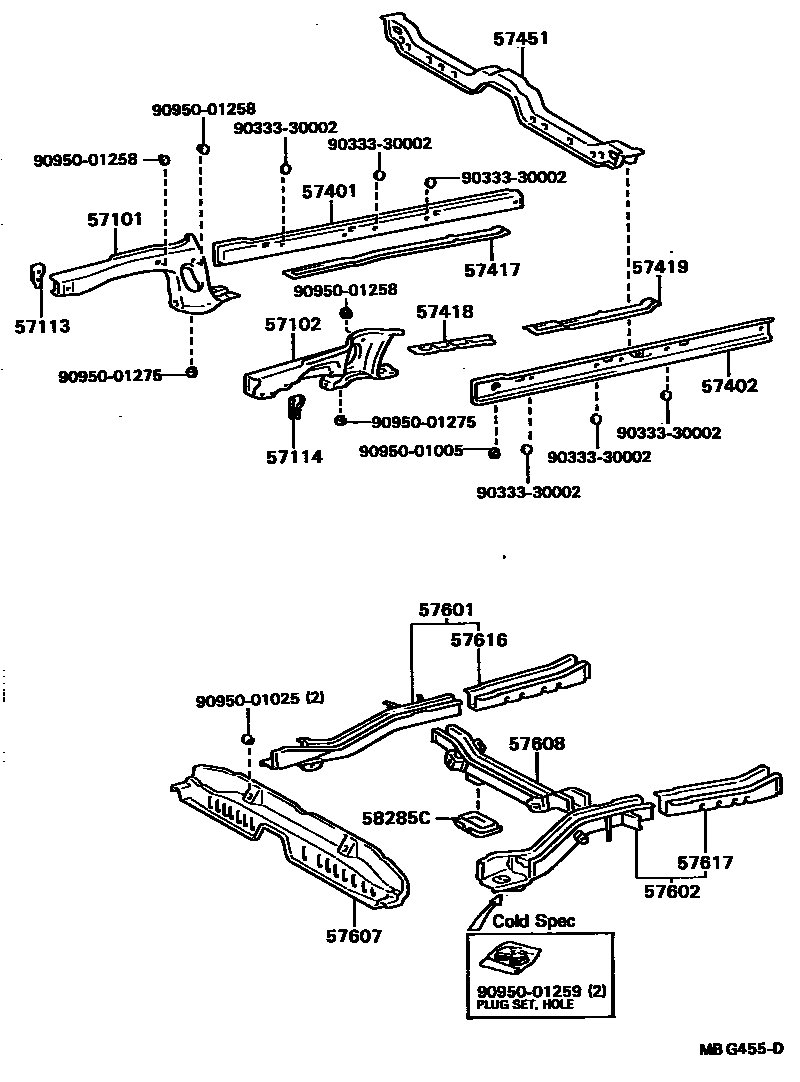

FLOOR SIDE MEMBER

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-20350iCT150,ST150198405-198804

main57101-20360iAT15#198405-198804

main57101-20480iST162198508-198804

main57101-20490iAT160198508-198804

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-20320iCT150,ST150198405-198804

main57102-20330iAT15#198405-198804

main57102-20460iST162198508-198804

main57102-20470iAT160198508-198804

57113EXTENSION, FRONT SIDE MEMBER, RH

main57105-20050iAT160,ST162198508-198804

main57113-12090iAT15#,CT150,ST150198512-198804

main57113-20060iAT15#,CT150,ST150198405-198512

57114EXTENSION, FRONT SIDE MEMBER, LH

main57106-20050iAT160,ST162198508-198804

main57114-12090iAT15#,CT150,ST150198512-198804

main57114-20040iAT15#,CT150,ST150198405-198512

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-20180iAT15#,CT150,ST150198405-198505

main57401-20190iAT15#,160,CT150,ST150,162198505-198804

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-20180iAT15#,CT150,ST150198405-198505

main57402-20190iAT15#,160,CT150,ST150,162198505-198804

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-20030iAT15#,160,CT150,ST150,162198405-198804

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-20040iAT15#,160,CT150,ST150,162198405-198804

57419REINFORCEMENT, FRONT FLOOR UNDER, LH NO.2

main57419-20020iAT15#,160,CT150,ST150,162198405-198804

57451MEMBER, FRONT FLOOR CROSS

main57408-20010iAT15#,160,CT150,ST150,162198405-198804

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-20150iAT15#,CT150,ST150198405-198804

main57601-20180iAT160,ST162198508-198804

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-20130iAT15#,CT150,ST150198405-198804

main57602-20180iAT160,ST162198508-198804

57607CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1

main57605-20040iAT160,ST162198508-198705

main57605-20060iAT160,ST162198705-198804

main57605-32010iAT15#,CT150,ST150198405-198804

57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2

main57606-20060iAT15#,CT150,ST150198405-198804

main57606-20070iAT160,ST162198508-198705

main57606-20080iAT160,ST162198705-198804

57616MEMBER, REAR FLOOR SIDE, REAR RH

main57615-20902iAT160,ST162198508-198804

main57615-32900iAT15#,CT150,ST150198405-198804

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-20902iAT160,ST162198508-198804

main57616-32900iAT15#,CT150,ST150198405-198804

58285CCOVER, REAR FLOOR HOLE

main58285-20020×2iAT160,ST162198508-198804

9033330002

main90333-30002

9095001005

main90950-01005

9095001025

main90950-01025

9095001258

main90950-01258

9095001259

main90950-01259

9095001275

main90950-01275

23 parts on this diagram · 1 diagram in section
