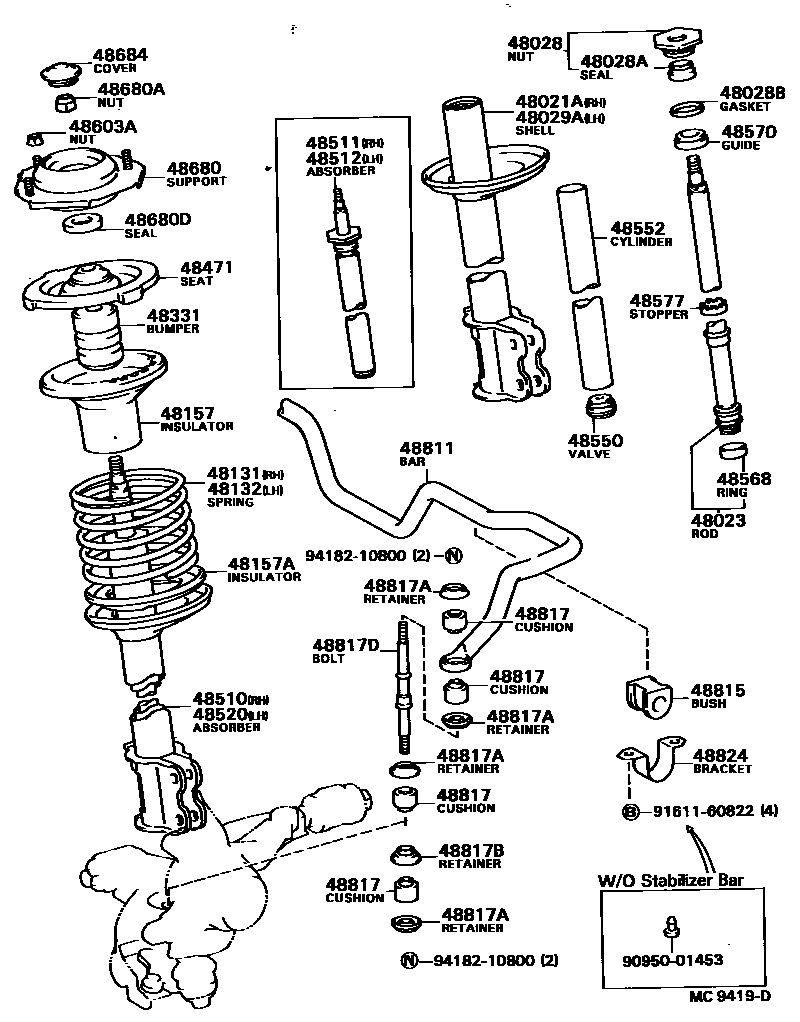

FRONT SPRING & SHOCK ABSORBER
48021ASHELL SUB-ASSY, FRONT SHOCK ABSORBER, RH
48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)
ST-X
48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)
48029ASHELL SUB-ASSY, FRONT SHOCK ABSORBER, LH
48157INSULATOR, FRONT COIL SPRING, UPPER
48157AINSULATOR, FRONT COIL SPRING, LOWER
48471SEAT, FRONT SPRING, UPPER
48510ABSORBER ASSY, SHOCK, FRONT RH
sub48510-12420
sub48510-12410
sub48510-12471
sub48510-12472
sub48510-12470
sub48510-20360
ST-X
sub48510-20392
48520ABSORBER ASSY, SHOCK, FRONT LH
sub48520-12290
sub48520-12280
sub48520-12341
sub48520-12342
sub48520-12340
sub48520-20350
ST-X
sub48520-20382
48550VALVE ASSY, SHOCK ABSORBER BASE
48552CYLINDER, SHOCK ABSORBER(FOR FRONT)
48568RING, SHOCK ABSORBER PISTON
48570GUIDE ASSY, SHOCK ABSORBER ROD
48577STOPPER, SHOCK ABSORBER REBOUND
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
48684COVER, BEARING DUST
48815BUSH, FRONT STABILIZER BAR, NO.1
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48817DBOLT(FOR FRONT STABILIZER)
48824BRACKET, STABILIZER, FRONT
9095001453
main90950-01453
9161160822
main91611-60822
9418210800
main94182-10800
36 parts on this diagram · 2 diagrams in section
