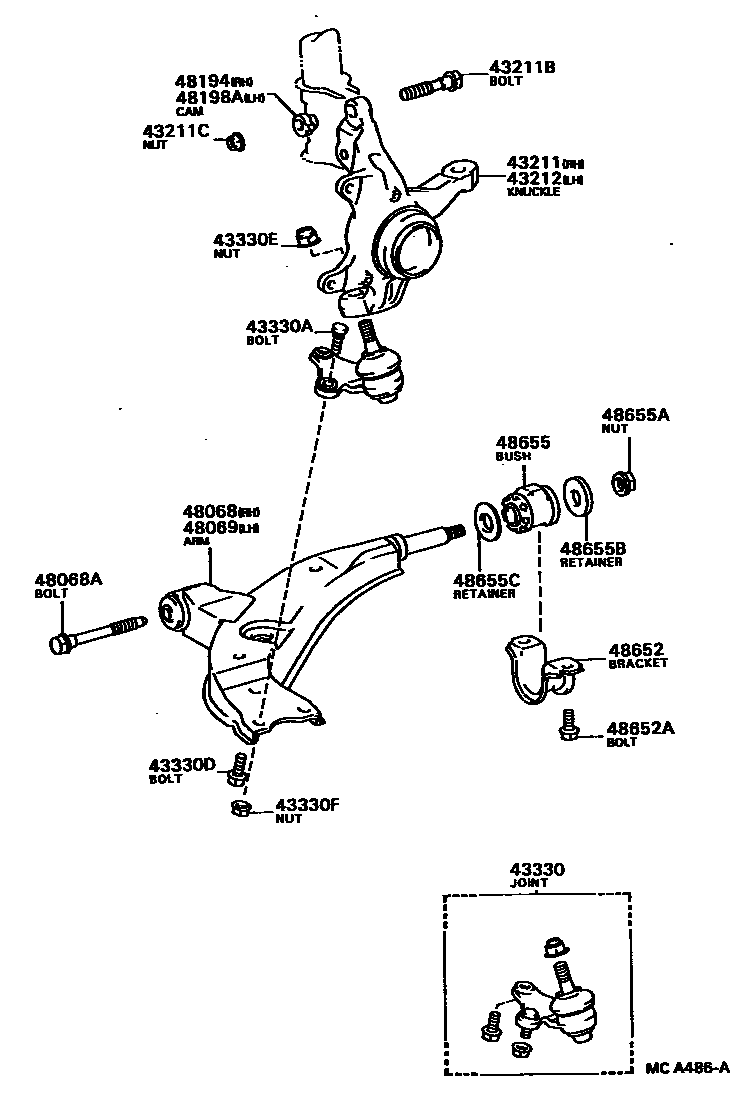

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
43211BBOLT (FOR ABSORBER SETTING)
43211CNUT (FOR ABSORBER SETTING)
43212KNUCKLE, STEERING, LH
43330JOINT ASSY, LOWER BALL, FRONT
43330ASERRATION BOLT(FOR FRONT LOWER BALL JOINT)
43330DBOLT (FOR FRONT LOWER BALL JOINT)
43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)
43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48194CAM, CAMBER ADJUST, RH
48198ACAM, CAMBER ADJUST, LH
48652BRACKET, FRONT LOWER ARM
48652ABOLT(FOR FRONT LOWER ARM BRACKET)
48655BUSH, LOWER ARM, NO.2
48655ANUT(FOR SUSPENSION LOWER ARM BUSH NO.2)
48655BRETAINER, CUSHION, NO.1(FOR SUSPENSION LWR ARM BUSH NO.2)
48655CRETAINER, CUSHION, NO.2(FOR SUSPENSION LWR ARM BUSH NO.2)
20 parts on this diagram · 2 diagrams in section
