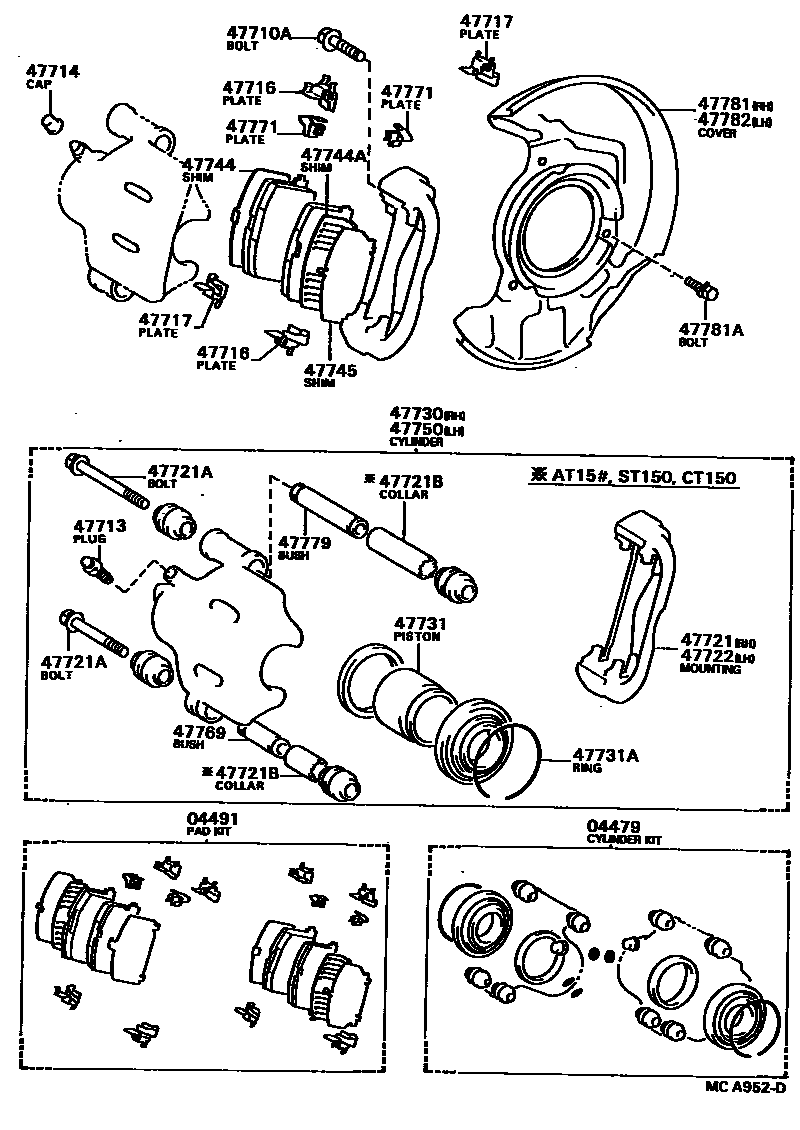

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-20080iAT160,ST162198508-198804

main04479-32010iAT15#,CT150,ST150198405-198501

main04479-32011iAT15#,CT150,ST150198501-198804

04491PAD KIT, DISC BRAKE, FRONT

main04491-14171iAT15#,CT150,ST150198405-198407

main04491-20180iAT15#,CT150,ST150198507-198804

main04491-20201iAT160,ST162198508-198609

main04491-20290iAT160,ST162198609-198804

main04491-32050iAT15#,CT150,ST150198407-198507

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040×4iAT15#,160,CT150,ST150,162198405-198804

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12040×2iAT160,ST162198508-198804

main47547-20010×2iAT15#,CT150,ST150198405-198804

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAT15#,160,CT150,ST150,162198405-198804

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20050×4iAT15#,CT150,ST150198507-198804

main47716-32010×4iAT15#,CT150,ST150198405-198507

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20030×4iAT15#,CT150,ST150198507-198804

main47717-32010×4iAT15#,CT150,ST150198405-198507

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20080iAT15#,CT150,ST150198405-198510

main47721-20090iAT15#,CT150,ST150198510-198804

main47721-20120iAT160,ST162198508-198804

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003×2iAT160,ST162198508-198804

main90119-09004×2iAT160,ST162198507-198804

main90119-09007×2iAT15#,CT150,ST150198507-198804

main90119-09008×2iAT15#,CT150,ST150198507-198804

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-15004×2iAT15#,CT150,ST150198405-198804

L=12

main90387-15005×2iAT15#,CT150,ST150198405-198804

L=32

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-20080iAT15#,CT150,ST150198405-198510

main47721-20090iAT15#,CT150,ST150198510-198804

main47721-20120iAT160,ST162198508-198804

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20180iAT15#,CT150,ST150198405-198804

main47730-20220iAT160,ST162198508-198804

47731PISTON, FRONT DISC BRAKE

main47731-20080×2iAT15#,CT150,ST150198405-198804

main47731-20100×2iAT160,ST162198508-198804

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×2iAT15#,CT150,ST150198405-198804

main90522-64003×2iAT160,ST162198508-198804

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-20050×2iAT15#,CT150,ST150198709-198804

main47744-20060×2iAT160,ST162198508-198804

main47744-32010×2iAT15#,CT150,ST150198704-198709

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-17010×2iAT160,ST162198612-198804

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-20050×2iAT15#,CT150,ST150198507-198704

main47744-20060×2iAT160,ST162198508-198612

main47744-32010×2iAT15#,CT150,ST150198405-198507

main47745-17020×2iAT160,ST162198612-198804

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20170iAT15#,CT150,ST150198405-198804

main47750-20210iAT160,ST162198508-198804

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-20010×2iAT15#,CT150,ST150198405-198804

main47769-32010×2iAT160,ST162198508-198804

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-20030×4iAT15#,CT150,ST150198507-198804

main47771-32010×4iAT15#,CT150,ST150198405-198507

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-20010×2iAT15#,CT150,ST150198405-198804

main47779-32010×2iAT160,ST162198508-198804

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-20140iAT15#,CT150,ST150198405-198804

main47781-20150iAT160,ST162198508-198804

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227×6iAT15#,160,CT150,ST150,162198405-198804

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-20140iAT15#,CT150,ST150198405-198804

main47782-20150iAT160,ST162198508-198804

24 parts on this diagram · 2 diagrams in section
