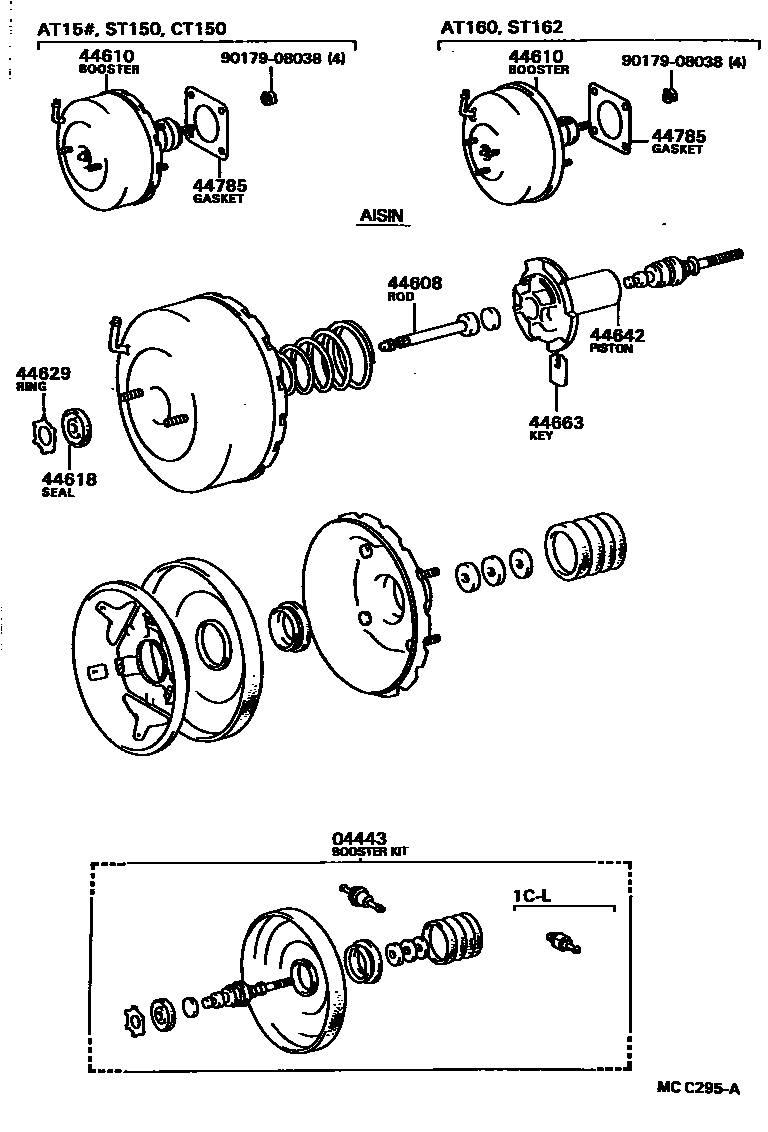

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

04443BOOSTER KIT, BRAKE

main04443-20340iAT15#,ST150198405-198603

JKC

main04443-20350iCT150198405-198603

JKC

main04443-20360iAT160,ST162198508-198611

JKC

main04443-20400iAT160,ST162198508-198611

AISIN

main04443-20420iAT15#,ST150198405-198603

AISIN

main04443-20430iCT150198405-198603

AISIN

main04443-20460iAT150..DX,SE; AT151,ST150198604-198804

AISIN

main04443-20470iCT150198603-198804

AISIN

main04443-20480iAT150..SG198604-198804

JKC

main04443-20490iCT150198603-198604

JKC

main04443-20610iAT160,ST162198611-198804

AISIN

main04443-20620iAT160,ST162198611-198804

JKC

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iAT150..DX,SE; AT151,160,CT150,ST150,162198604-198804

AISIN

main44608-32020iAT150..SG; AT160,ST162198604-198804

JKC

44610BOOSTER ASSY, BRAKE

main44610-20680iAT15#,CT150,ST150198405-198603

main44610-20770iAT160,ST162198508-198611

main44610-20820iAT15#,CT150,ST150198603-198604

AISIN

main44610-20830iAT150..SG198604-198804

JKC

main44610-2B080iAT160,ST162198611-198804

44618SEAL, BOOSTER BODY

main44621-28120iAT150..DX,SE; AT151,160,CT150,ST150,162198604-198804

44629RING, CIRCULAR INTERNAL

main44628-28120iAT150..DX,SE; AT151,160,CT150,ST150,162198604-198804

44642PISTON, BRAKE BOOSTER

main44642-32010iAT160,ST162198603-198804

main44642-32030iAT150..DX,SE; AT151,CT150,ST150198604-198804

AISIN

44663KEY, VALVE STOPPER

main44635-28120iAT15#,160,CT150,ST150,162198405-198604

44785GASKET, BRAKE BOOSTER

main44785-32010iAT15#,160,CT150,ST150,162198405-198804

9017908038

main90179-08038

9 parts on this diagram · 5 diagrams in section
