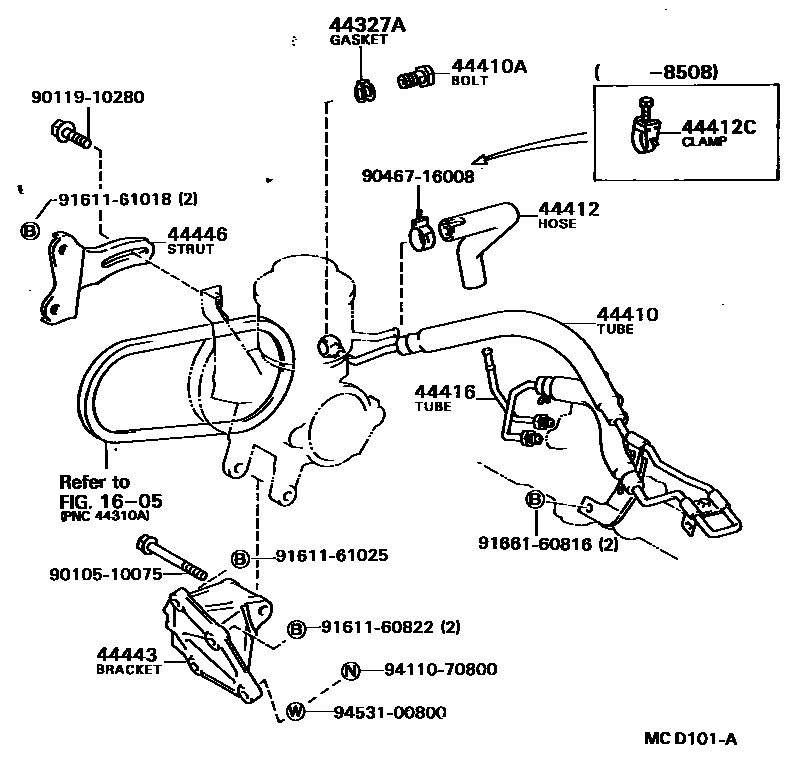

POWER STEERING TUBE

0001 1 0004 1 0005 1 0006 1 0007 1

1605V-BELT

→ Go to FIG 16-05

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAT150,CT150,ST150..SE,SG; AT151..ST198405-198508

44410TUBE ASSY, PRESSURE FEED

main44410-20061iST150198405-198804

main44410-20160iCT150198405-198804

main44410-20201iAT15#..SE,SG,ST198508-198804

main44410-20230iAT160198508-198804

main44410-20280iST162198508-198804

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iAT150,CT150..SE,SG; AT151..ST198405-198508

44412HOSE, RETURN

main44412-12120iAT150..SE,SG; AT151..ST198405-198508

44412CCLAMP(FOR RETURN HOSE)

main90460-01001iAT150..SE,SG; AT151..ST198405-198508

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-12140iAT150..SE,SG; AT151..ST198405-198508

main44416-20110iAT160,ST150,162198405-198804

44443BRACKET, PUMP

main44443-12050iAT150..SE,SG; AT151..ST198405-198508

main44443-12060iAT160198508-198804

main44443-20050iST162198508-198804

main44443-20060iST150198508-198804

main44443-32010iST150198405-198508

44446STRUT, ADJUSTING

main44446-12030iAT150..DX198709-198804

MY LIFE

9010510075

main90105-10075

9011910280

main90119-10280

9046716008

main90467-16008

9161160822

main91611-60822

9161161018

main91611-61018

9161161025

main91611-61025

9166160816

main91661-60816

9411070800

main94110-70800

9453100800

main94531-00800

18 parts on this diagram · 5 diagrams in section
