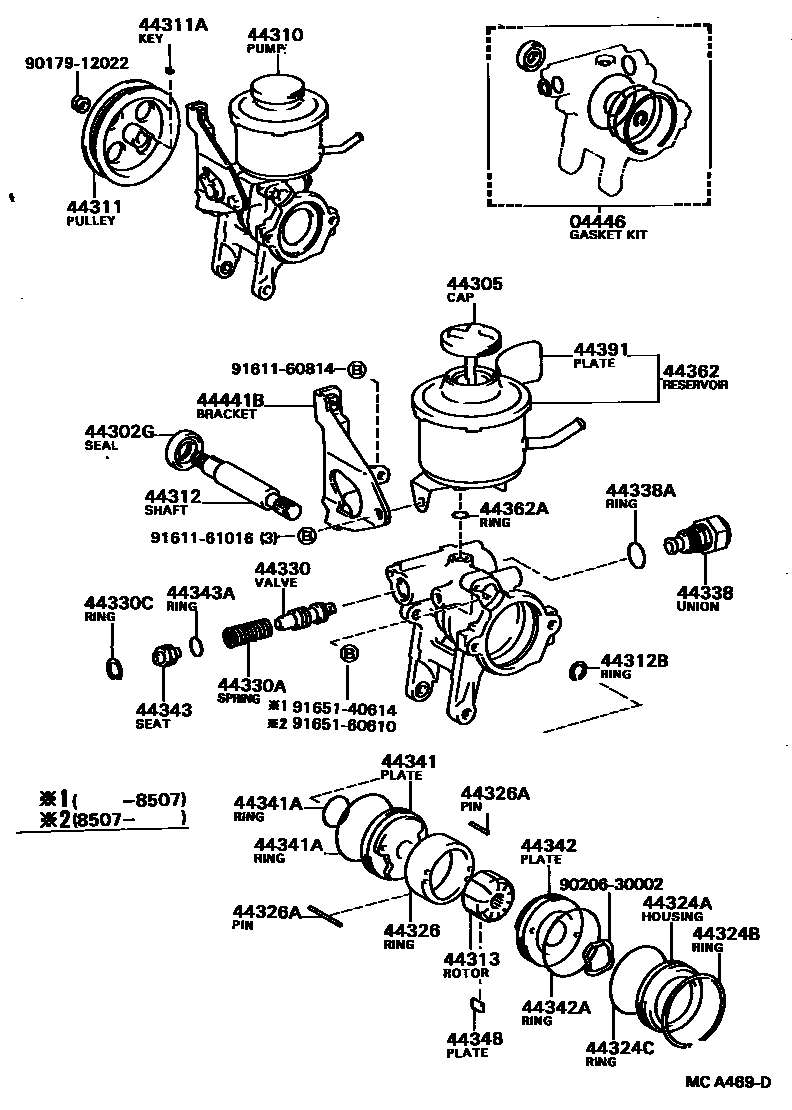

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0004 1 0005 1 0006 1 0007 1 0008 1

04446GASKET KIT, POWER STEERING PUMP

main04446-12020iAT150..DX198712-198804

sub04446-27010

main04446-16011iST150198405-198508

main04446-20030iAT150,CT150..SE,SG198405-198804

sub04446-20031

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18007iAT150..DX198405-198804

main90311-18008iST150198405-198508

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-30020iAT151..ST198405-198804

sub44305-22040

main44305-30020iAT150..DX198709-198804

MY LIFE

sub44305-22040

main44305-32010iAT160,CT150,ST150,162198405-198804

44310PUMP ASSY, VANE

main44320-12050iCT150198405-198507

sub44320-12051

main44320-12051iCT150198507-198804

sub44320-12052

main44320-12110iAT151..ST198405-198507

sub44320-12111

main44320-12111iAT15#..SE,SG,ST198507-198804

sub44320-12112

main44320-12111iAT150..DX198709-198804

MY LIFE

sub44320-12112

main44320-12121iAT160198508-198804

main44320-20040iST150198508-198804

sub44320-20041

main44320-20052iST150198405-198508

main44320-20120iST162198508-198804

sub44320-20121

44311PULLEY, VANE PUMP

main44311-12030iCT150198405-198804

main44311-12040iAT150..DX198709-198804

MY LIFE

main44311-12040iAT150..DX198405-198804

main44311-12070iAT160198508-198804

main44311-20060iST150,162198508-198804

main44311-32010iST150198405-198508

44311AKEY, VANE PUMP PULLEY

main90280-05008iAT151..ST198405-198804

main90280-05008iAT150..DX198709-198804

MY LIFE

44312SHAFT, VANE PUMP

main44312-12020iST150198405-198508

main44312-12030iAT151..ST198405-198804

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iAT151..ST198405-198804

44313ROTOR, VANE PUMP

main44313-12010iAT151..ST198405-198804

sub44313-22040

main44313-12020iAT150,CT150,ST150..SE,SG198405-198804

sub44313-22050

main44313-12030iAT151..ST198405-198804

sub44313-22060

main44313-12040iAT150,CT150,ST150..SE,SG198405-198804

sub44313-22070

main44313-12050iAT150,CT150,ST150..SE,SG198405-198804

sub44313-22080

44324AHOUSING, PUMP, REAR

main44324-12030iAT150,CT150..SE,SG198405-198507

main44324-12031iAT150..DX198507-198804

main44324-16010iST150198407-198508

main44324-22030iST150198405-198407

sub44324-22031

44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)

main90521-62002iAT150..DX198405-198804

44324CRING, O(FOR PUMP HOUSING REAR)

main90301-52001iAT150,CT150..SE,SG198405-198804

44326RING, CAM(FOR VANE PUMP)

main44325-12060iST150198405-198508

main44325-12070iST150198405-198508

main44325-12080iST150198405-198508

main44325-12090iST150198405-198508

main44325-12100iST150198405-198508

main44325-12110iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198405-198804

main44325-12120iAT150,CT150..SE,SG198405-198804

main44325-12130iAT151..ST198405-198804

main44325-12140iAT150,CT150..SE,SG198405-198804

main44325-12150iAT151..ST198405-198804

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iAT151..ST198405-198804

main90250-04049iAT151..ST198405-198804

main90250-05008iST150198405-198508

main90250-05017iST150198405-198508

44330VALVE ASSY, FLOW CONTROL

main44330-12070iAT151..ST198405-198804

sub44330-12071

main44330-12070iAT150..DX198709-198804

sub44330-12071

main44330-12080iAT150..SE,SG198405-198804

sub44330-12081

main44330-12080iAT150..DX198709-198804

sub44330-12081

main44330-12090iAT151..ST198405-198804

sub44330-12091

main44330-12090iAT150..DX198709-198804

sub44330-12091

main44330-12100iAT15#..SE,SG,ST198405-198804

sub44330-12101

main44330-12100iAT150..DX198709-198804

sub44330-12101

main44330-12110iAT151..ST198405-198804

sub44330-12111

main44330-12110iAT150..DX198709-198804

sub44330-12111

main44330-12120iAT150..SE,SG198405-198804

sub44330-12121

main44330-12120iAT150..DX198709-198804

sub44330-12121

main44330-12130iCT150,ST150198405-198804

sub44330-12131

main44330-12140iCT150,ST150198405-198804

sub44330-12141

main44330-12150iCT150,ST150198405-198804

sub44330-12151

main44330-12160iCT150,ST162198405-198804

sub44330-12161

main44330-12170iCT150,ST150198405-198804

sub44330-12171

main44330-12180iCT150,ST150198405-198804

sub44330-12181

main44330-14010iAT160,ST150198508-198804

sub44330-20010

main44330-14020iAT160,ST150198508-198804

sub44330-20020

main44330-14030iAT160,ST150198508-198804

sub44330-20030

main44330-14040iAT160,ST150198508-198804

sub44330-20040

main44330-14050iAT160,ST150198508-198804

sub44330-20050

main44330-14060iAT160,ST150198508-198804

sub44330-20060

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iAT150..DX198507-198804

main90501-12103iAT150..DX198709-198804

MY LIFE

main90501-12447iAT150,CT150,ST150..SE,SG198405-198507

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iAT151..ST198405-198804

main96151-01700iAT150..DX198709-198804

MY LIFE

main96151-02200iST150198405-198508

44338UNION, PRESSURE PORT

main44308-12020iCT150198405-198507

main44308-12022iCT150198507-198804

sub44308-12042

main44308-12030iAT150..SE,SG198405-198507

sub44308-12032

main44308-12032iAT151..ST198507-198804

sub44308-12042

main44308-12042iAT160198508-198804

main44308-20011iST150198405-198507

main44308-20012iST150198507-198508

main44308-20020iST150198508-198804

main44308-20030iST162198508-198804

sub44308-20020

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iAT151..ST198405-198804

sub90301-19013

main90301-19003iAT150..DX198709-198804

sub90301-19013

main90301-22001iST150198405-198508

main96711-19014iST150198405-198508

44341PLATE, VANE PUMP SIDE, FRONT

main44341-12020iST150198405-198508

sub44341-30030

main44341-12030iAT150,CT150..SE,SG198405-198804

sub44341-32010

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-21001iST150198405-198508

INNER

main90301-25001iAT150,CT150..SE,SG198405-198804

INNER

sub90301-25008

main90301-52001iAT150..DX198405-198804

OUTER

main90301-56002iST150198405-198508

OUTER

44342PLATE, VANE PUMP SIDE, REAR

main44342-12020iAT151..ST198405-198507

main44342-12021iAT151..ST198507-198804

sub44342-32010

main44342-22010iST150198405-198508

sub44342-30020

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-13004iST150198405-198508

INNER

main90301-30004iST150198405-198508

OUTER

main90301-52001iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198405-198804

44343SEAT, FLOW CONTROL SPRING

main44343-12010iAT151..ST198405-198804

main44343-12010iAT150..DX198709-198804

MY LIFE

main44343-12030iST150198405-198508

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iAT151..ST198405-198804

main96711-19014iAT150..DX198709-198804

MY LIFE

main96711-19019iST150198405-198508

44348PLATE, VANE PUMP

main44345-12010iAT150..DX198405-198804

main44345-12020iAT151..ST198405-198804

main44345-12030iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198405-198804

main44345-12040iAT151..ST198405-198804

main44345-12050iAT150..DX198405-198804

44362RESERVOIR, OIL(FOR VANE PUMP)

main44306-12050iAT150..DX198405-198804

main44306-12050iAT150..DX198709-198804

MY LIFE

main44360-12020iCT150198405-198804

main44360-20050iST150198405-198804

main44360-20070iAT160198508-198804

main44360-20080iST162198508-198804

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main90301-12003iAT15#..SE,SG,ST198405-198804

sub90301-11016

main90301-12003iAT150..DX198709-198804

MY LIFE

sub90301-11016

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-12010iAT151..ST198405-198804

44441BBRACKET, PUMP, FRONT

main44441-12020iAT151..ST198405-198804

main44441-12020iAT150..DX198709-198804

MY LIFE

9017912022

main90179-12022

9020630002

main90206-30002

9161160814

main91611-60814

9161161016

main91611-61016

9165140614

main91651-40614

9165160610

main91651-60610

36 parts on this diagram · 6 diagrams in section
