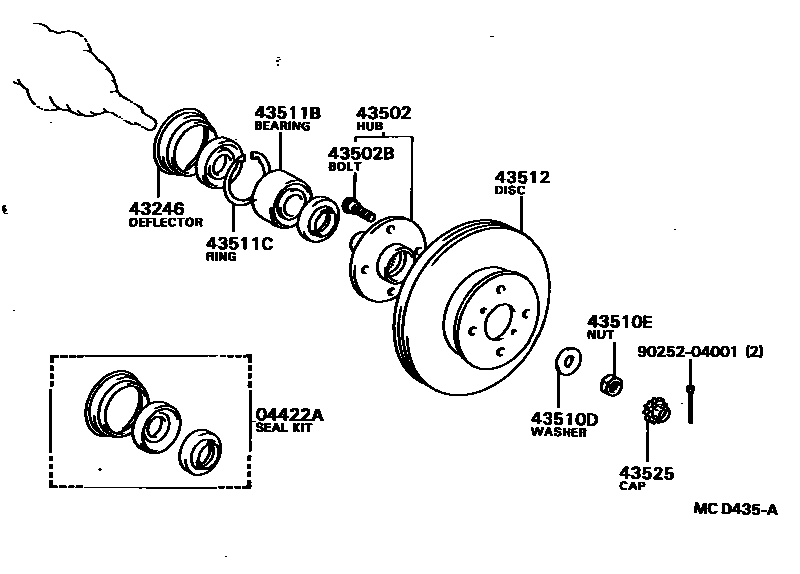

FRONT AXLE HUB

04422ASEAL KIT, FRONT AXLE OIL

main04422-20010iAT15#,160,CT150,ST150,162198405-198804

43246DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1

main43246-20010iAT15#,160,CT150,ST150,162198405-198804

43502HUB SUB-ASSY, FRONT AXLE

main43502-20030iAT15#,CT150,ST150198405-198712

sub43502-12100

sub43502-20110

main43502-20040iAT160,ST162198602-198712

sub43502-32040

main43502-20080iAT15#,CT150,ST150198712-198804

sub43502-20110

main43502-32010iAT160,ST162198508-198602

sub43502-20040

main43502-32040iAT160,ST162198712-198804

sub43502-32050

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iAT15#,160,CT150,ST150,162198405-198804

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90201-20012iAT15#,160,CT150,ST150,162198405-198804

43510ENUT (FOR STEERING KNUCKLE)

main90170-19001iAT15#,160,CT150,ST150,162198405-198804

43511BBEARING (FOR FRONT AXLE HUB)

main90369-38003iAT15#,160,CT150,ST150,162198405-198804

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-79002iAT15#,160,CT150,ST150,162198405-198804

main90521-79003iAT15#,160,CT150,ST150,162198706-198804

main90521-79004iAT15#,160,CT150,ST150,162198706-198804

main90521-79005iAT15#,160,CT150,ST150,162198706-198804

main90521-79006iAT15#,160,CT150,ST150,162198706-198804

43512DISC, FRONT

main43512-20080iAT15#,CT150,ST150198405-198508

main43512-20120iAT160,ST162198508-198804

sub43512-20300

main43512-20180iAT15#,CT150,ST150198508-198804

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010iAT15#,160,CT150,ST150,162198405-198804

9025204001

main90252-04001

11 parts on this diagram · 1 diagram in section
