STARTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

28011CLUTCH SUB-ASSY, STARTER

main28011-15010i3ALU,4AGELU..AT150,160198705-198804

12V 0.8KW

main28011-26042i3ALU,4A#,1SILU,3SGELU..AT15#,160,ST150,162198405-198804

12V 1.0KW

main28011-64010i2CL..CT150198405-198804

12V 1.4KW

main28011-64020i2CL..CT150..5F198405-198804

12V 2.0KW

main28011-64030i2CL..CT150..4FC198405-198804

12V 2.5KW

28100STARTER ASSY

main28100-15060i3ALU,4AELU..AT15#198405-198705

main28100-15070i3ALU,4AELU..AT15#198405-198804

main28100-15170i4AGELU..AT160198508-198804

main28100-15180i4AGELU..AT160198508-198804

main28100-63020i1SILU..ST150198405-198804

main28100-63050i3SGELU..ST162198508-198804

main28100-64020i2CL..CT150..5F198405-198804

main28100-64070i2CL..CT150198405-198804

main28100-64080i2CL..CT150..4FC198405-198804

28110HOUSING ASSY, STARTER DRIVE

main28110-15060i3ALU,4AELU..AT15#198405-198705

12V 0.8KW

main28110-15070i3ALU,4AELU..AT15#198405-198804

12V 1.0KW

main28110-15110i4AGELU..AT160198508-198804

12V 0.8KW

main28110-15130i4AGELU..AT160198508-198804

12V 1.0KW

main28110-63020i1SILU..ST150198405-198804

12V 1.0KW

main28110-63050i3SGELU..ST162198508-198804

12V 1.0KW

main28110-64070i2CL..CT150198405-198804

12V 1.4KW

main28115-64020i2CL..CT150..5F198405-198804

12V 2.0KW

main28115-64030i2CL..CT150..4FC198405-198804

12V 2.5KW

28120YOKE ASSY, STARTER

main28120-15010i3ALU..AT150198705-198804

12V 0.8KW

main28120-15090i2CL..CT150198405-198804

12V 1.4KW

main28120-26071i3ALU,4A#,1SILU,3SGELU..AT15#,160,ST150,162198405-198804

12V 1.0KW

main28120-26140i4AGELU..AT160198508-198804

12V 0.8KW

main28120-47040i2CL..CT150..4FC198405-198608

12V 2.5KW

main28120-56081i2CL..CT150..4FC198608-198804

12V 2.5KW

main28120-64020i2CL..CT150..5F198405-198804

12V 2.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13010i4AGELU,3SGELU..AT160,ST162198508-198804

12V 1.0KW

main28130-13020i4AGELU..AT160198508-198804

12V 0.8KW

main28130-15010i3ALU,4AELU..AT15#198405-198705

12V 0.8KW

main28130-15040i3ALU,4AELU..AT15#198405-198804

12V 1.0KW

main28130-15090i2CL..CT150198405-198804

12V 1.4KW

main28130-63020i1SILU..ST150198405-198804

12V 1.0KW

main28130-64080i2CL..CT150..4FC198405-198804

12V 2.5KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i3ALU,4AGELU..AT150,160198705-198804

12V 0.8KW

main28140-15090i2CL..CT150198405-198804

12V 1.4KW

main28140-26070i3ALU,4A#,1SILU,3SGELU..AT15#,160,ST150,162198405-198804

12V 1.0KW

main28140-54070i2CL..CT150..5F198405-198804

12V 2.0KW

main28140-77090i2CL..CT150..4FC198405-198804

12V 2.5KW

28143SPRING, STARTER BRUSH

main90099-17112×4i3ALU,4A#,2CL,1SILU,3SGELU..AT15#,160,CT150,ST150,162198405-198804

12V 1.0KW,1.4KW

main90099-17115×4i2CL..CT150..5F198405-198804

12V 2.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-13011i4AGELU..AT160198508-198804

12V 1.0KW

main28150-15070i3ALU,4AELU..AT15#198405-198804

12V 1.0KW

main28150-37010i3ALU,4AGELU..AT150,160198705-198804

12V 0.8KW

main28150-63021i1SILU..ST150198405-198804

12V 1.0KW

main28150-63050i3SGELU..ST162198508-198804

12V 1.0KW

main28150-64020i2CL..CT150..5F198405-198804

12V 2.0KW

main28150-64030i2CL..CT150..4FC198405-198804

12V 2.5KW

main28150-64070i2CL..CT150198405-198804

12V 1.4KW

28160ARMATURE ASSY, STARTER

main28160-15010i3ALU,4A#..AT15#,160198405-198705

12V 0.8KW

main28160-15090i2CL..CT150198405-198804

12V 1.4KW

main28160-26070i3ALU,4A#,1SILU,3SGELU..AT15#,160,ST150,162198405-198804

12V 1.0KW

main28160-47040i2CL..CT150..4FC198405-198804

12V 2.5KW

main28160-54070i2CL..CT150..5F198405-198804

12V 2.0KW

28160ABEARING, STARTER ARMATURE

main28253-45020i3ALU,4A#,1SILU,3SGELU..AT15#,160,ST150,162198405-198804

12V 1.0KW,NO.2

main28253-54070i2CL..CT150..5F198405-198804

12V 2.0KW,NO.1

main90099-10107i2CL..CT150..4FC198405-198804

12V 2.5KW,NO.2

main90099-10113i3ALU,4A#,1SILU,3SGELU..AT15#,160,ST150,162198405-198804

12V 1.0KW,NO.1

main90099-10119i2CL..CT150..4FC198405-198804

12V 2.5KW,NO.1

main90099-10131i2CL..CT150..5F198405-198804

12V 2.0KW,NO.2

main90099-10143i2CL..CT150198405-198804

12V 1.4KW,NO.2

main90099-10144i2CL..CT150198405-198804

12V 1.4KW,NO.1

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i2CL..CT150..5F; 3ALU,4A#,2CL,1SILU,3SGELU..AT15#,160,CT150,ST150,162198405-198804

12V 1.0KW,1.4KW; 12V 2.0KW

main28165-77090i2CL..CT150..4FC198405-198804

12V 2.5KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i2CL..CT150; 3ALU,4A#,2CL,1SILU,3SGELU..AT15#,160,CT150,ST150,162198405-198804

12V 1.0KW,1.4KW; 12V 2.0KW

main28228-56080×5i2CL..CT150..4FC198405-198804

12V 2.5KW

28229RETAINER, STARTER IDLE GEAR

main28229-26040i2CL..CT150..5F; 3ALU,4A#,2CL,1SILU,3SGELU..AT15#,160,CT150,ST150,162198405-198804

12V 1.0KW,1.4KW; 12V 2.0KW

main28229-56080i2CL..CT150..4FC198405-198804

12V 2.5KW

28252GEAR, STARTER IDLE

main28254-45020i3ALU,4A#,1SILU,3SGELU..AT15#,160,ST150,162198405-198804

12V 1.0KW

main28254-54070i2CL..CT150; 2CL..CT150..5F198405-198804

12V 1.4KW; 12V 2.0KW

main28254-77090i2CL..CT150..4FC198405-198804

12V 2.5KW

9009900902

main90099-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9011910327

main90119-10327

9017908146

main90179-08146

9161161055

main91611-61055

9411040800

main94110-40800

9451100800

main94511-00800

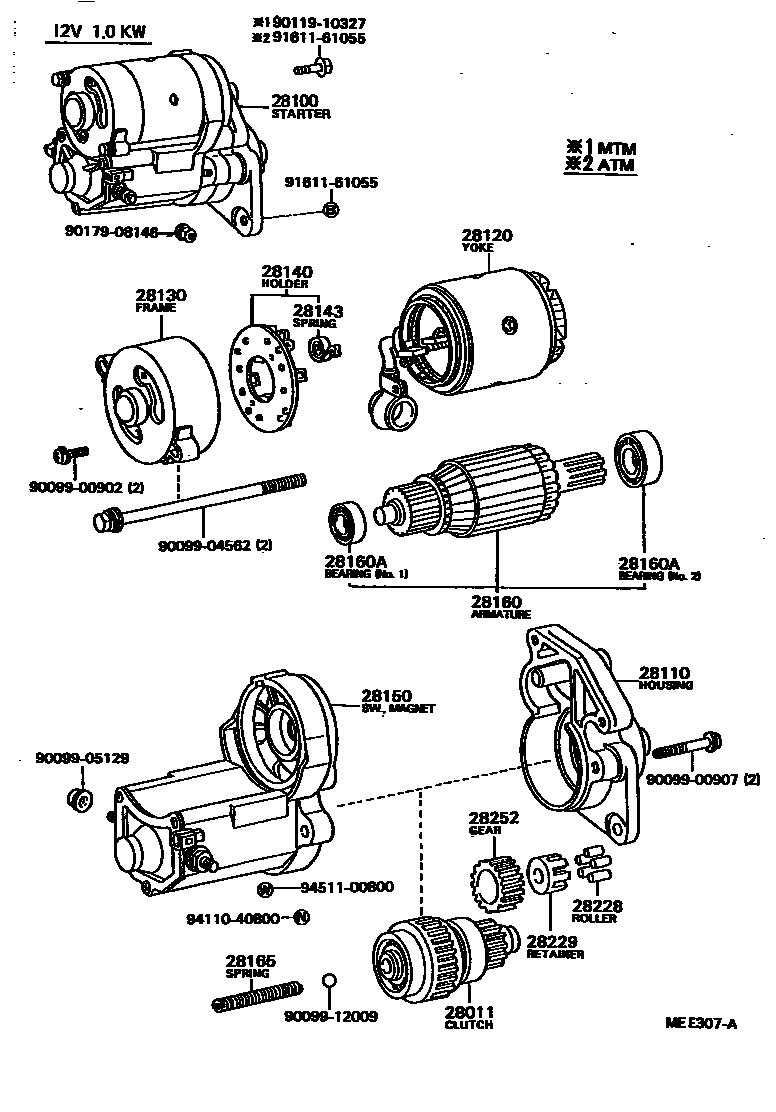

24 parts on this diagram · 6 diagrams in section
