ALTERNATOR

0001 1 0002 1 0003 1 0004 1

1605

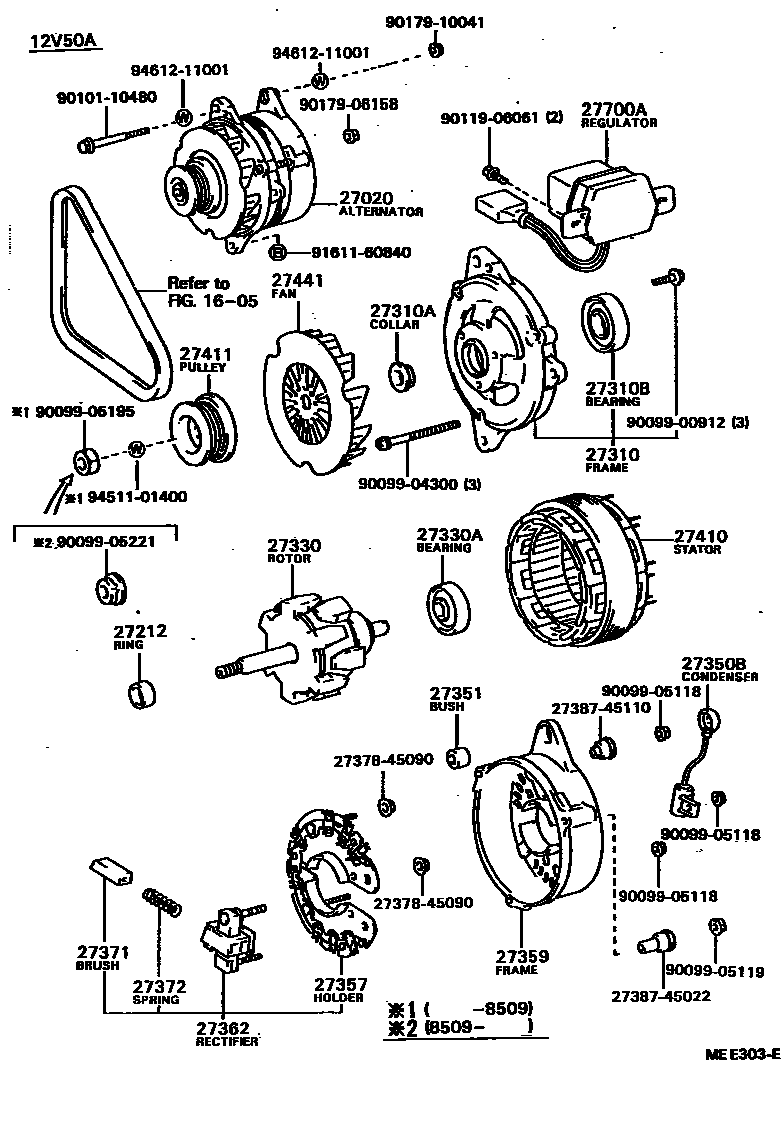

27020ALTERNATOR ASSY

main27020-16030i3ALU..AT150198405-198804

12V 50A

main27020-64060i2CL..CT150198405-198804

12V 55A

main27020-64100i2CL..CT150198405-198804

main27020-64160i2CL..CT150..4FC198510-198804

main27060-16010i4AGELU..AT160198508-198608

main27060-16011i4AGELU..AT160198608-198702

12V 60A

sub27060-16012

main27060-16012i4AGELU..AT160198702-198804

main27060-16040i4AELU..AT151..4FC198405-198608

main27060-16041i1SILU..ST150198608-198702

sub27060-16042

main27060-16042i1SILU..ST150198702-198804

sub27060-63102

main27060-16060i4AELU..AT151..ST198405-198501

12V 55A

sub27060-63060

main27060-16151i4AGELU..AT160198804-198804

main27060-63060i1SILU..ST150198405-198608

main27060-63061i4AELU..AT151..5F..ST198608-198804

main27060-63100i3SGELU..ST162198508-198608

main27060-63101i3SGELU..ST162198608-198702

sub27060-63102

main27060-63102i3SGELU..ST162198702-198804

12V 60A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27333-57060i2CL..CT150198405-198804

12V 55A,60A

main27412-15150i3ALU..AT150198502-198804

12V 50A

main27412-45070i3ALU..AT150198405-198502

12V 50A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-16011i4AGELU..AT160198508-198702

12V 60A

main27310-16030i3ALU..AT150198405-198804

12V 50A

main27310-16060i4AELU..AT151198405-198501

12V 55A,60A

sub27310-70070

main27310-16181i4AGELU..AT160198702-198804

12V 60A

main27310-64060i2CL..CT150198405-198804

12V 55A,60A

main27310-70070i1SILU..ST150198405-198501

12V 55A

main27310-70071i4AELU,1SILU..AT151,ST150198501-198804

12V 55A,60A

main27310-70071i3SGELU..ST162198508-198702

12V 60A

main27310-70200i4AELU..AT151..SG198702-198804

12V 55A,60A

main27310-70200i3SGELU..ST162198702-198804

12V 60A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-16030i3ALU..AT150198405-198502

12V 50A

main27412-16040i3ALU..AT150198502-198804

12V 50A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10137i2CL..CT150198405-198804

12V 55A,60A

main90099-10142i3ALU..AT150198405-198804

12V 50A

sub90099-10223

main90099-10152i1SILU..ST150198405-198501

12V 55A

main90099-10156i4AELU..AT151198405-198501

12V 55A,60A

sub90099-10152

main90099-10159i4AELU..AT151..5F..ST198501-198804

12V 55A,60A

main90099-10178i4AGELU,1SILU,3SGELU..AT160,ST150,162198702-198804

12V 55A,60A

27330ROTOR ASSY, ALTERNATOR

main27330-16030i3ALU..AT150198502-198804

12V 50A

main27330-45070i3ALU..AT150198405-198502

12V 50A

sub27330-16030

main27330-63021i4AELU,1SILU..AT151,ST150198405-198501

12V 55A,60A

sub27330-72100

main27330-64010i2CL..CT150198405-198804

12V 55A

main27330-64030i2CL..CT150198405-198804

12V 60A

sub27330-54180

main27330-72100i4A#,1SILU,3SGELU..AT151,160,ST150,162198501-198709

12V 55A,60A

sub27330-72101

main27330-72101i4A#,1SILU,3SGELU..AT151,160,ST150,162198709-198804

12V 55A,60A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i3ALU..AT150198405-198804

12V 50A

main90099-10140i4A#,1SILU,3SGELU..AT151,160,ST150,162198405-198804

12V 55A,60A

27350FRAME ASSY, RECTIFIER END

main27350-64060i2CL..CT150198405-198804

12V 55A,60A

27350BCONDENSER, ALTERNATOR

main90099-52065i3ALU..AT150198405-198804

12V 50A

sub90099-52034

main90099-52066i2CL..CT150198405-198804

12V 55A,60A

sub90099-52035

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i3ALU..AT150198405-198804

12V 50A

main27351-64060i2CL..CT150198405-198804

12V 55A,60A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-15022i3ALU..AT150198405-198804

12V 50A

main27357-63020i4AELU..AT151..4FC198405-198804

12V 60A

main27357-63060i4AELU..AT151..ST198405-198804

12V 55A

main27357-64060i2CL..CT150198405-198804

12V 55A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16011i4AGELU..AT160198508-198702

12V 60A

sub27359-16012

sub27384-16380

main27359-16180i4AGELU..AT160198702-198804

12V 60A

sub27359-16181

sub27384-16380

main27359-43160i3SGELU..ST162198702-198804

12V 60A

sub27359-43161

sub27384-16380

main27359-63010i3ALU..AT150198405-198804

12V 50A

main27359-63021i4AELU,1SILU..AT151,ST150198405-198804

12V 55A,60A

sub27359-63081

main27359-63081i3SGELU..ST162198508-198702

12V 60A

main27359-70200i4AELU..AT151..4FC198702-198804

12V 55A,60A

sub27359-43160

27362RECTIFIER ASSY, W/BRUSH

main27362-15022i3ALU..AT150198405-198804

12V 50A

27371BRUSH, ALTERNATOR

main27371-31011i3ALU..AT150198405-198804

12V 50A

main27371-56070i2CL..CT150198405-198804

12V 55A,60A

sub27371-54412

main27371-63020i4A#,1SILU,3SGELU..AT151,160,ST150,162198405-198804

12V 55A,60A

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-31011i3ALU..AT150198405-198804

12V 50A

main27372-56070i2CL..CT150198405-198804

12V 55A,60A

main27372-63020i4AELU,1SILU..AT151,ST150198405-198501

12V 55A,60A

sub27372-87501

main27372-72100i4A#,1SILU,3SGELU..AT151,160,ST150,162198501-198804

12V 55A,60A

sub27372-63020

27410STATOR ASSY, ALTERNATOR

main27410-41080i3ALU..AT150198405-198804

12V 50A

main27410-43040i2CL..CT150198405-198804

12V 55A

main27410-54180i2CL..CT150198405-198804

12V 60A

27411PULLEY, ALTERNATOR

main27411-15150i3ALU..AT150198405-198804

12V 50A

main27411-16011i4AGELU..AT160198508-198702

12V 60A

main27411-16012i4AGELU..AT160198702-198804

12V 60A

main27411-16180i1SILU,3SGELU..ST150,162198702-198804

12V 60A

main27411-16180i4AELU..AT151..SG198702-198804

12V 55A,60A

main27411-16180i4AELU..AT151..SG198702-198708

12V 50A,60A

main27411-63080i1SILU..ST150198408-198508

12V 55A

sub27411-63021

main27411-63081i4AELU..AT151198501-198702

12V 50A,60A

sub27411-16180

main27411-63081i4AELU..AT151..5F..ST198702-198708

12V 55A,60A

sub27411-16180

main27411-63081i1SILU,3SGELU..ST150,162198508-198702

12V 60A

sub27411-16180

main27411-64060i2CL..CT150..5F198405-198804

12V 55A,60A

main27411-64160i2CL..CT150..4FC198510-198804

12V 60A

main27411-72010i1SILU..ST150198405-198408

12V 55A

sub27411-63080

main27411-72010i4AELU..AT151198405-198501

12V 50A,60A

sub27411-63080

27441FAN, ALTERNATOR

main27441-15150i3ALU..AT150198405-198804

12V 50A

main27441-64060i2CL..CT150198405-198804

12V 55A,60A

27700AREGULATOR ASSY, GENERATOR

main27700-15040i3ALU..AT150198510-198804

12V 50A

main27700-15040i3ALU..AT150198510-198804

12V 55A

main27700-15040i3ALU,2CL..AT150,CT150198405-198510

12V 50A,55A

main27700-15050i3ALU..AT150..SE,SG198405-198709

COLD SPEC,12V 50A

sub27700-15051

main27700-15051i3ALU..AT150..SE,SG198709-198712

COLD SPEC,12V 50A

sub27700-64050

main27700-16010i4AGELU..AT160198804-198804

12V 60A

sub27700-66020

main27700-57060i2CL..CT150198405-198605

12V 60A

main27700-63021i4A#,1SILU,3SGELU..AT151,160,ST150,162198405-198804

12V 55A,60A

sub27700-70030

main27700-64030i2CL..CT150198605-198804

12V 60A

main27700-64050i3ALU..AT150..SE,SG198712-198804

COLD SPEC,12V 50A

sub27700-15040

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

9009900912

main90099-00912

9009904300

main90099-04300

9009905118

main90099-05118

9009905119

main90099-05119

9009905195

main90099-05195

9009905221

main90099-05221

9010110480

main90101-10480

9011906061

main90119-06061

9017906158

main90179-06158

9017910041

main90179-10041

9161160840

main91611-60840

9451101400

main94511-01400

9461211001

main94612-11001

36 parts on this diagram · 4 diagrams in section
