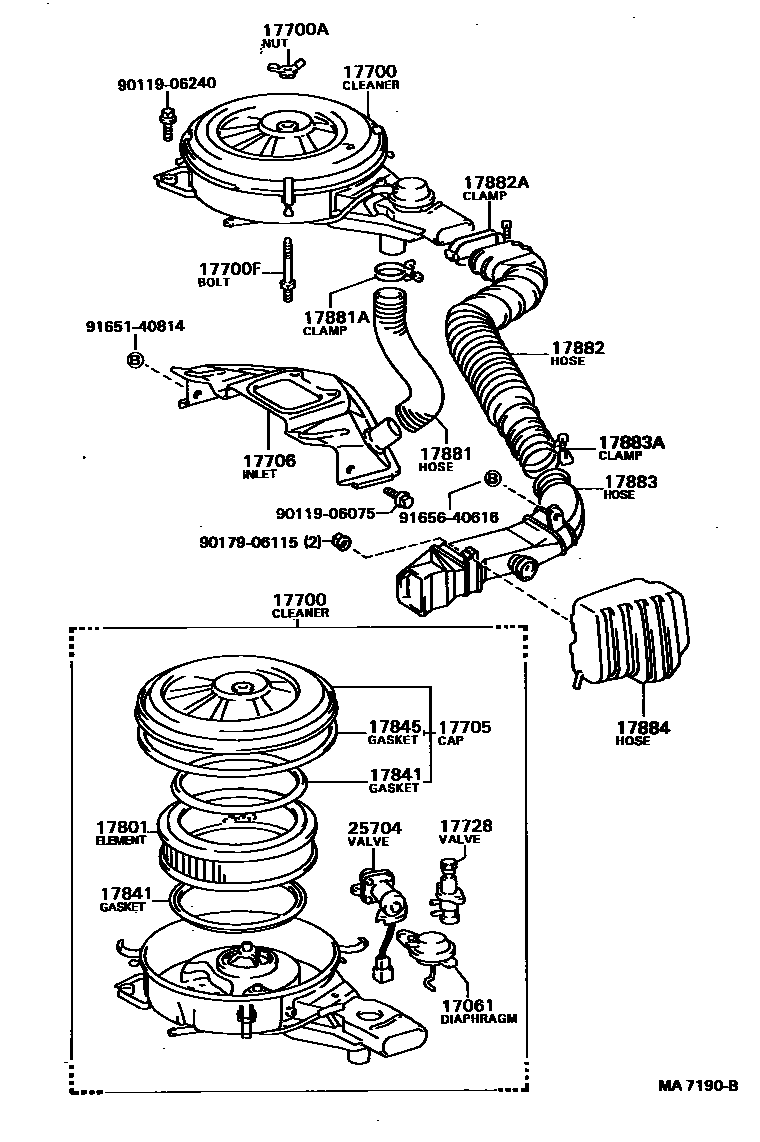

AIR CLEANER
17061DIAPHRAGM SUB-ASSY
17700ANUT, WING(FOR AIR CLEANER)
17700FBOLT, STUD(FOR AIR CLEANER SETTING)
17706INLET SUB-ASSY, AIR CLEANER, NO.2
sub17902-15081
17841GASKET, FILTER ELEMENT
17845GASKET, AIR CLEANER CAP
*G,L=1060
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
sub90929-01117
THROTTLE BODY SIDE
THROTTLE BODY SIDE
AIR FLOW METER SIDE
17882HOSE, AIR CLEANER, NO.2
COLD SPEC,NO.2
COLD SPEC,NO.1
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17883HOSE, AIR CLEANER, NO.3
17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)
17884HOSE, AIR CLEANER, NO.4
COLD SPEC
25704VALVE SUB-ASSY, ELECTRIC AIR CONTROL
9011906075
main90119-06075
9011906240
main90119-06240
9017906115
main90179-06115
9165140814
main91651-40814
9165640616
main91656-40616
23 parts on this diagram · 7 diagrams in section
