ENGINE OVERHAUL GASKET KIT

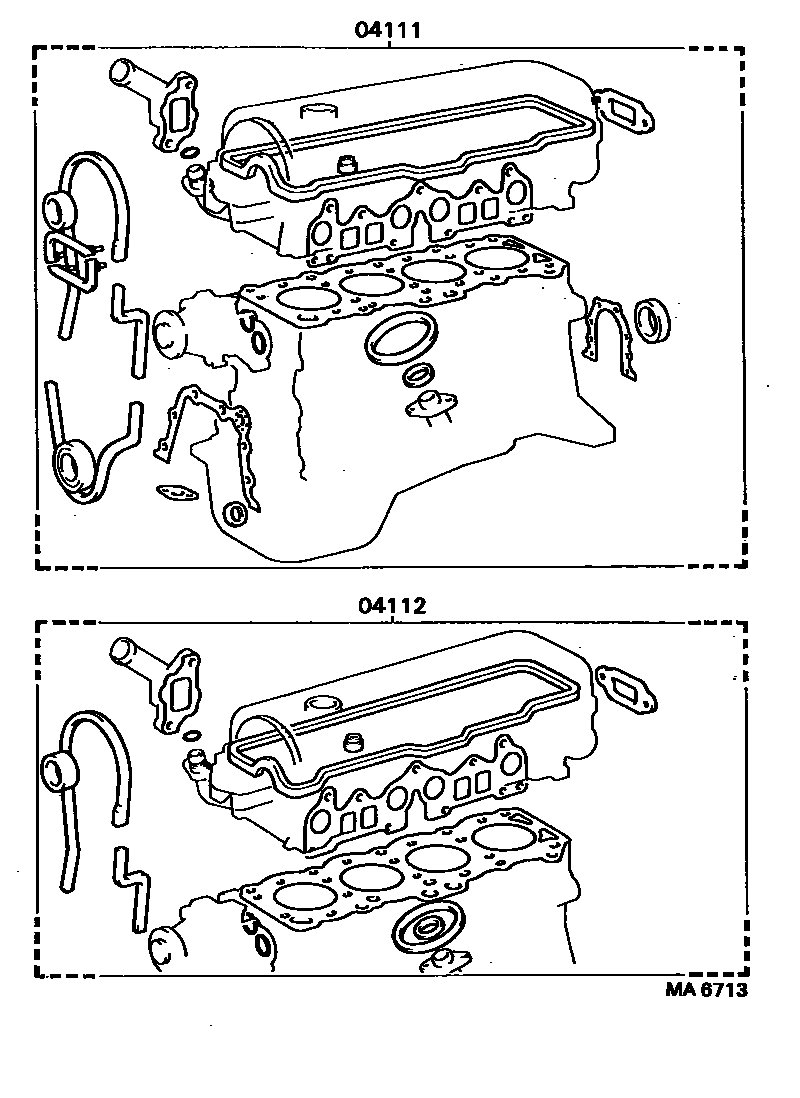

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-15050i198405-198804
sub04111-15051
main04111-16050i198405-198505
sub04111-16051
main04111-16051i198505-198804
sub04111-16052
main04111-16060i198405-198505
sub04111-16061
main04111-16061i198505-198804
sub04111-16062
main04111-16072i198508-198705
sub04111-16073
main04111-16073i198705-198708
sub04111-16074
main04111-16074i198708-198804
sub04111-16075
main04111-63030i198405-198412
sub04111-63031
main04111-63031i198412-198610
sub04111-63032
main04111-63032i198610-198804
sub04111-63033
main04111-64050i198405-198501
sub04111-64051
main04111-64051i198501-198505
sub04111-64052
main04111-64052i198505-198508
sub04111-64053
main04111-64070i198508-198608
sub04111-64071
main04111-64071i198608-198609
sub04111-64072
main04111-64072i198609-198804
sub04111-64073
main04111-74031i198508-198610
*54
sub04111-74032
main04111-74032i198610-198804
*54
sub04111-74033
main04111-74040i198508-198610
*53
sub04111-74041
main04111-74041i198610-198804
*53
sub04111-74042
04112GASKET KIT, ENGINE VALVE GRIND
main04112-15050i198405-198804
sub04112-15051
main04112-16050i198405-198505
sub04112-16051
main04112-16051i198505-198804
sub04112-16052
main04112-16060i198405-198505
sub04112-16061
main04112-16061i198505-198804
sub04112-16062
main04112-16072i198508-198804
sub04112-16023
main04112-63030i198405-198412
sub04112-63031
main04112-63031i198412-198804
sub04112-63032
main04112-64050i198405-198501
sub04112-64051
main04112-64051i198501-198508
sub04112-64052
main04112-64070i198508-198609
sub04112-64071
main04112-64071i198609-198804
sub04112-64073
main04112-74031i198508-198804
*54
sub04112-74032
main04112-74040i198508-198804
*53
sub04112-74041

2 parts on this diagram · 6 diagrams in section
