ARMREST & VISOR

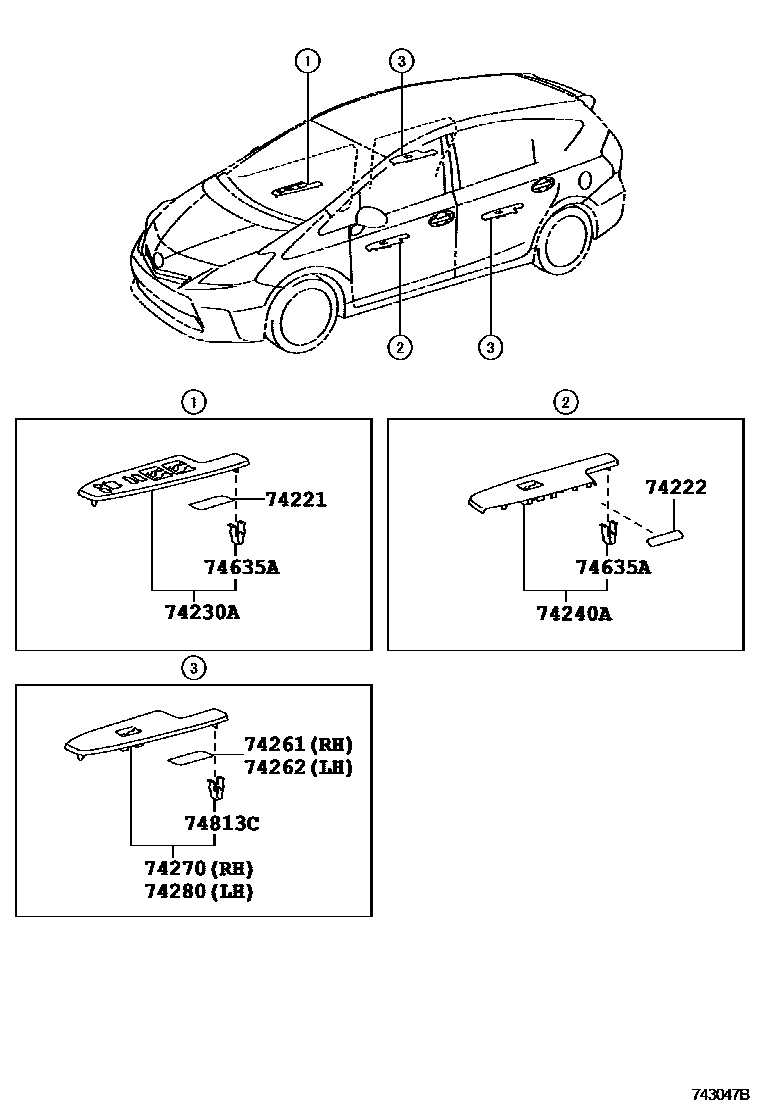

Parts diagram

74221COVER, DOOR ARMREST, RH

main74221-47030i201104-202103

74222COVER, DOOR ARMREST, LH

main74221-47030i201104-202103

74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH

main74231-47140i201104-201411

main74231-47250i201411-202103

74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH

main74232-47110i201104-201411

main74232-47220i201411-202103

74261COVER, REAR DOOR ARMREST, RH

main74221-47030i201104-202103

74262COVER, REAR DOOR ARMREST, LH

main74221-47030i201104-202103

74270PANEL ASSY, REAR DOOR ARMREST BASE, RH

main74271-47070i201104-201411

main74271-47140i201411-202103

74280PANEL ASSY, REAR DOOR ARMREST BASE, LH

main74272-47070i201104-201411

main74272-47140i201411-202103

74635ACLIP

main90467-12080i201104-202103

74813CCLIP

main90467-12080i201104-202103

10 parts on this diagram · 2 diagrams in section
