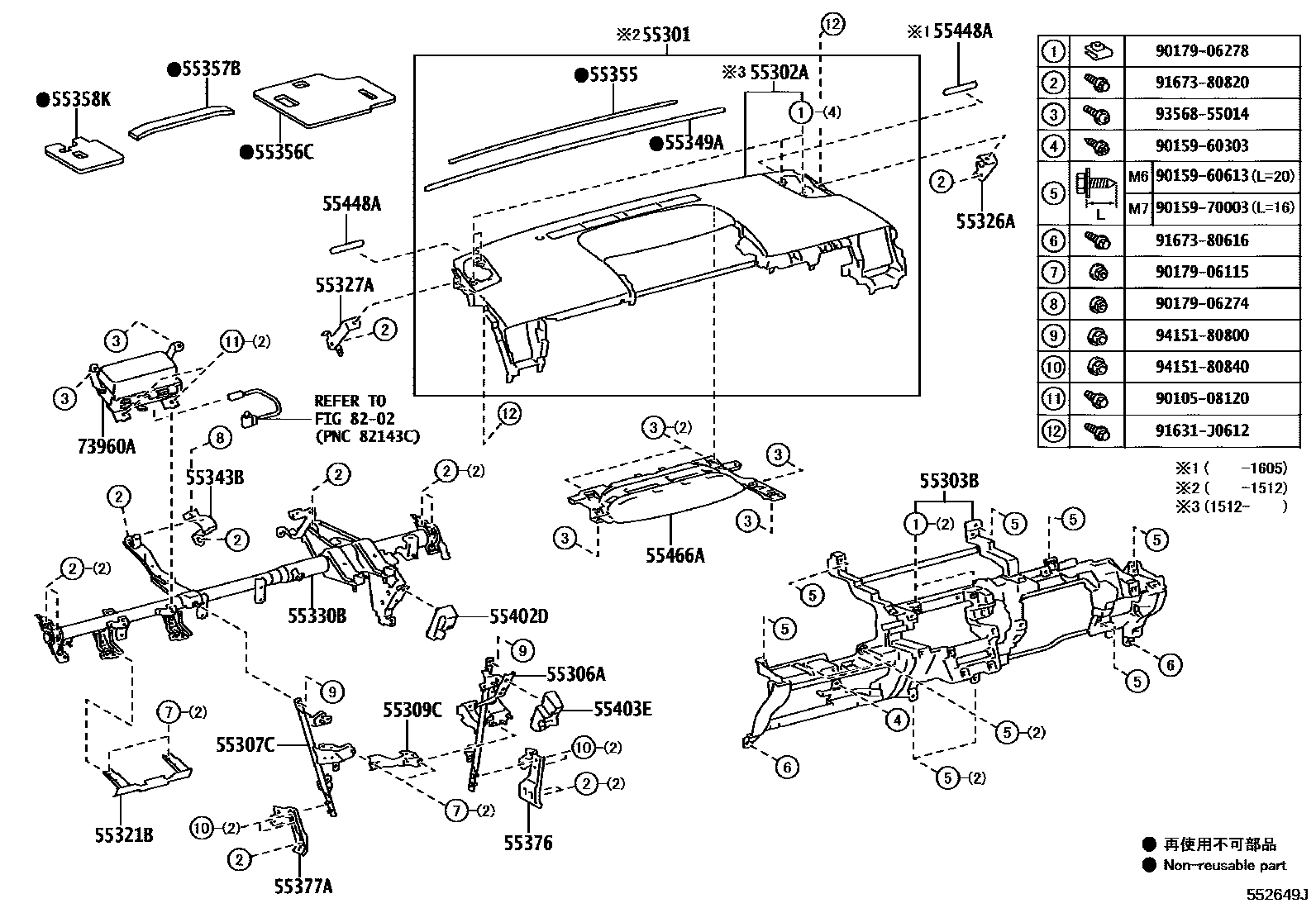

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
BLACK,TRIM2#,4#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55309CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER
55321BBRACKET, INSTRUMENT PANEL, NO.1
55326ASTAY, INSTRUMENT PANEL, NO.1
55327ASTAY, INSTRUMENT PANEL, NO.2
55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER
55349ACUSHION, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55356CCUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
55358KCUSHION, INSTRUMENT PANEL, NO.4
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2
55402DPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1
55403EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2
55448ACUSHION, INSTRUMENT PANEL FINISH, NO.1
55466ARETAINER, INSTRUMENT PANEL SAFETY PAD
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202
9010508120
main90105-08120
9015960303
main90159-60303
9015960613
main90159-60613
9015970003
main90159-70003
9017906115
main90179-06115
9017906274
main90179-06274
9017906278
main90179-06278
91631J0612
main91631-J0612
9167380616
main91673-80616
9167380820
main91673-80820
9356855014
main93568-55014
9415180800
main94151-80800
9415180840
main94151-80840
37 parts on this diagram · 7 diagrams in section
