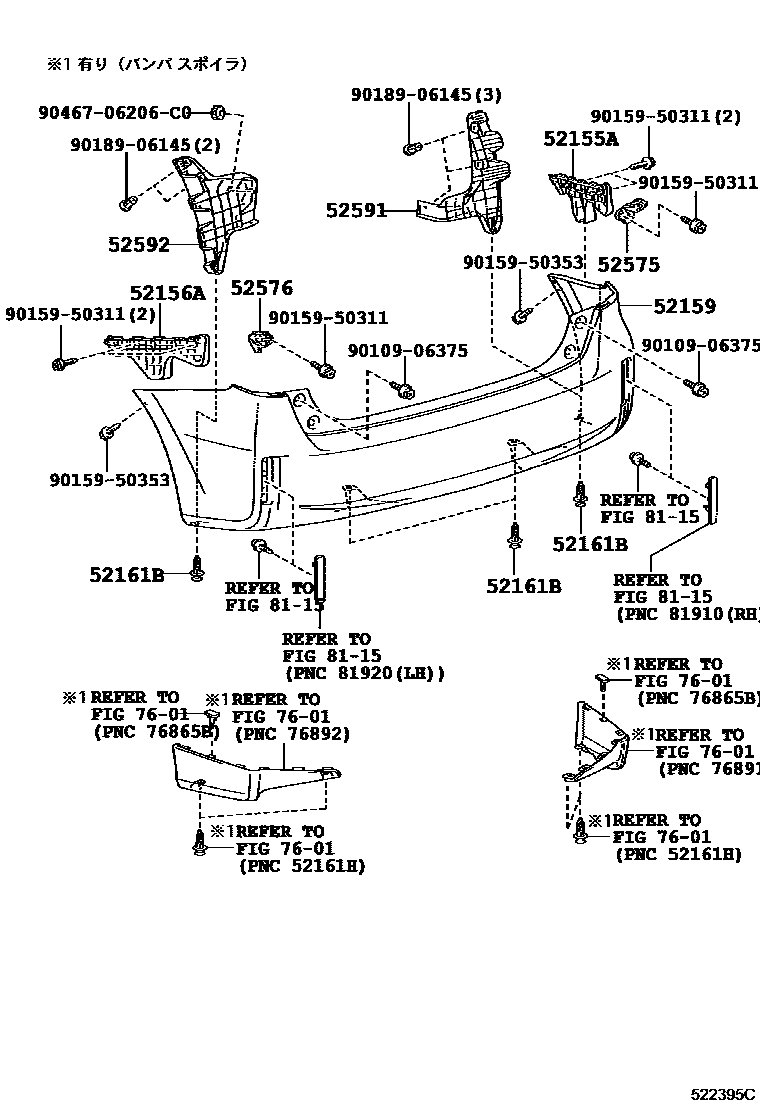

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1G'S

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-47010iZVW4#..CBU201104-201411

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-47010iZVW4#..CBU201104-201411

52159COVER, REAR BUMPER

main52159-47070-A0iZVW4#..CBU201104-201411

SUPER WHITE 2,040

main52159-47070-B0iZVW4#..CBU201411-202008

SILVER ME.,1F7

main52159-47070-B1iZVW4#..CBU201411-202103

GRAY ME.,1G3

main52159-47070-B3iZVW4#..CBU202008-202103

SILVER ME.,1D6

main52159-47070-C0iZVW4#..CBU201104-201411

BLACK,202

main52159-47070-C1iZVW4#..CBU201411-202103

ATTITUDE BLACK MC.,218

main52159-47070-C2iZVW4#..S..CBU201605-202103

BLACKISH AGEHA GF.,221

main52159-47070-D0iZVW4#..CBU201104-201411

RED M.M.,3R3

main52159-47070-D1iZVW4#..CBU201308-201411

BLACKISH RED MC.,3R0

main52159-47070-D2iZVW4#..CBU201411-201712

SUPER RED 5,3P0

main52159-47070-D3iZVW4#..CBU201712-202008

DK. RED M.M.,3Q3

main52159-47070-D4iZVW4#..CBU202008-202103

RED MC.,3T3

main52159-47070-E0iZVW4#..CBU201411-202103

DARK SHERRY M.M.,4W4

main52159-47070-E1iZVW4#..CBU201411-201712

ORANGE ME.,4R8

main52159-47070-E2iZVW4#..CBU201712-202008

STEEL BLONDE ME.,4X1

main52159-47070-H0iZVW4#..CBU201104-201411

CLEAR STREAM ME.,787

main52159-47070-J0iZVW4#..CBU201104-201411

DK.BLUE MC.,8T5

main52159-47070-J1iZVW4#..CBU202008-202103

DK. BLUE MC.,8X8

main52159-47160-A1iZVW4#..CBU201411-202103

WHITE PEARL CS.,070

main52159-47080-A0iZVW4#..CBU201104-201407

main52159-47080-A1supersedes 52159-47160-A1iZVW4#..CBU201407-201409

main52159-47080-B0iZVW4#..CBU201104-201407

main52159-47080-B2iZVW4#..CBU201407-201411

main52159-47080-C0iZVW4#..CBU201407-201411

main52159-47080-D0iZVW4#..CBU201407-201411

main52159-47080-H0iZVW4#..CBU201407-201411

main52159-47080-J0iZVW4#..CBU201407-201411

main52159-47120-A0iZVW4#..G; ZVW4#..S..CBU201411-202103

main52159-47120-A1iZVW4#..G; ZVW4#..S..CBU201411-202103

main52159-47120-B0iZVW4#..G; ZVW4#..S..CBU201411-202008

main52159-47120-B1iZVW4#..G; ZVW4#..S..CBU201411-202103

main52159-47120-B2iZVW4#..G; ZVW4#..S..CBU202008-202103

main52159-47120-C0iZVW4#..G; ZVW4#..S..CBU201411-202103

main52159-47120-D0iZVW4#..G; ZVW4#..S..CBU201411-201712

main52159-47120-D1iZVW4#..G; ZVW4#..S..CBU201712-202008

main52159-47120-D2iZVW4#..G; ZVW4#..S..CBU202008-202103

main52159-47120-E0iZVW4#..G; ZVW4#..S..CBU201411-202103

main52159-47120-E1iZVW4#..G; ZVW4#..S..CBU201411-201712

main52159-47120-E2iZVW4#..G; ZVW4#..S..CBU201712-202103

main52159-47120-J0iZVW4#..G; ZVW4#..S..CBU201411-202008

main52159-47120-J1iZVW4#..G; ZVW4#..S..CBU202008-202103

main52159-47170-A1supersedes 52159-47160-A1iZVW4#..CBU201409-201411

main52159-47200-A0iZVW4#..S..CBU201502-202103

main52159-47200-B0iZVW4#..S..CBU201502-202008

main52159-47200-B1iZVW4#..S..CBU201502-202103

main52159-47200-B2iZVW4#..S..CBU202008-202103

main52159-47200-C0iZVW4#..S..CBU201502-202103

main52159-47200-D0iZVW4#..S..CBU201502-201712

main52159-47200-D1iZVW4#..S..CBU201712-202008

main52159-47200-D2iZVW4#..S..CBU202008-202103

main52159-47200-J0iZVW4#..S..CBU201502-202008

main52159-47200-J1iZVW4#..S..CBU202008-202103

52161BPIECE, REAR BUMPER

main52161-16010×4iZVW4#..CBU201104-201411

52575RETAINER, REAR BUMPER SIDE, RH

main52575-47030iZVW4#..CBU201104-201411

52576RETAINER, REAR BUMPER SIDE, LH

main52576-47030iZVW4#..CBU201104-201411

52591SEAL, REAR BUMPER SIDE, RH

main52591-47030iZVW4#..CBU201411-202103

52592SEAL, REAR BUMPER SIDE, LH

main52592-47030iZVW4#..CBU201104-201411

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

8115REFLEX REFLECTOR

→ Go to FIG 81-15

9010906375

main90109-06375

9015950311

main90159-50311

9015950353

main90159-50353

9018906145

main90189-06145

9046706206C0

main90467-06206C0

15 parts on this diagram · 3 diagrams in section
