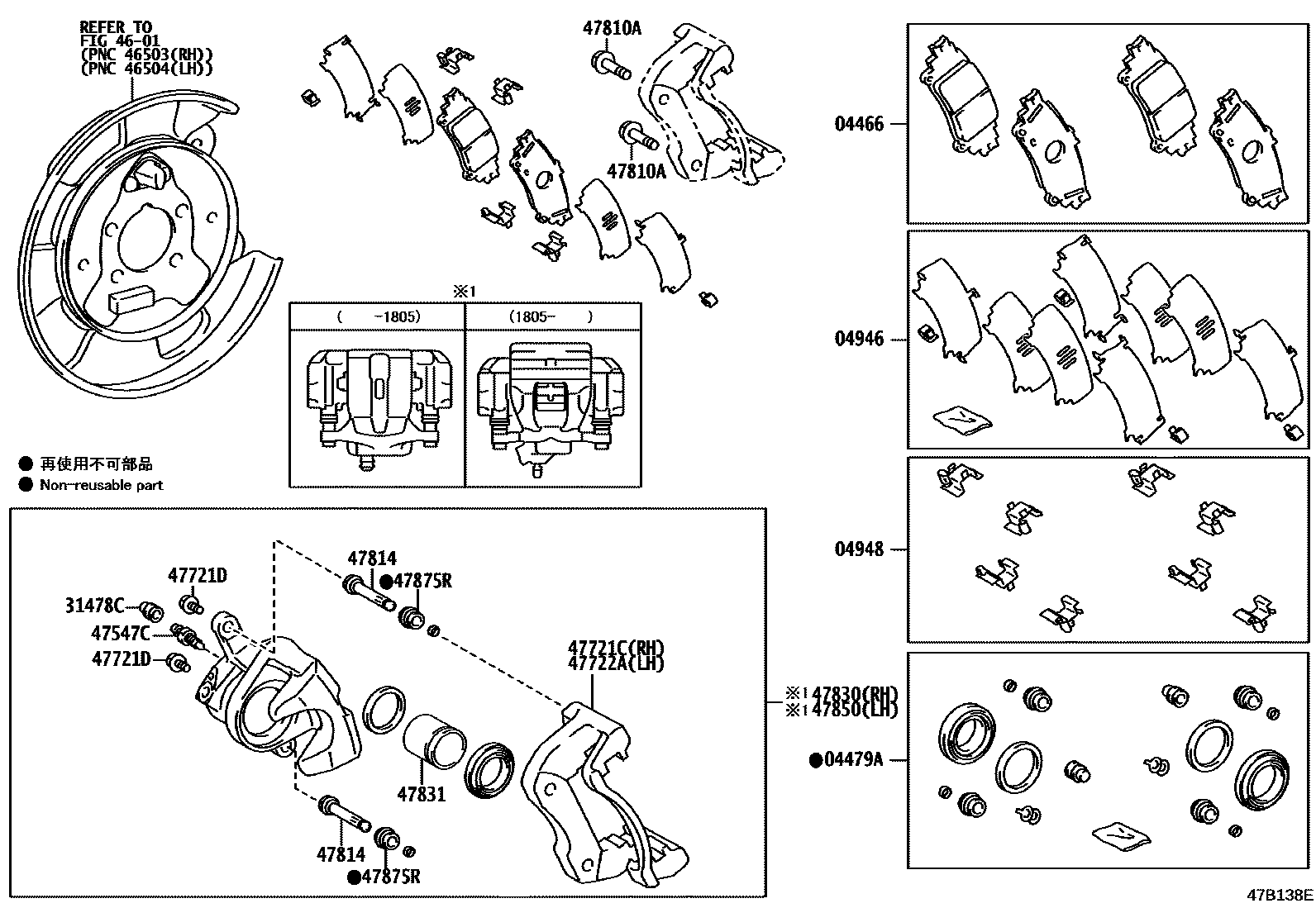

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-47050iZVW4#..CBU201104-201505

sub04466-47051

main04466-47051iZVW4#..CBU201505-201805

main04466-47093iZVW4#..CBU201805-202103

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-47060iZVW4#..CBU201104-201105

sub04479-47080

main04479-47080iZVW4#..CBU201105-201411

main04479-47100iZVW4#..CBU201411-201805

main04479-47130iZVW4#..CBU201805-202103

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-47080iZVW4#..CBU201104-201203

main04946-47090iZVW4#..CBU201204-201208

sub04946-47100

main04946-47100iZVW4#..CBU201209-201805

main04946-47120iZVW4#..CBU201805-202103

04948FITTING KIT, DISC BRAKE, REAR

main04948-30230iZVW4#..CBU201110-201203

main04948-30240iZVW4#..CBU201805-202103

main04948-47020iZVW4#..CBU201204-201804

main04948-48050iZVW4#..CBU201104-201109

sub04948-30230

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iZVW4#..CBU201805-202103

main31478-50020iZVW4#..CBU201104-201805

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iZVW4#..CBU201104-202103

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-47050iZVW4#..CBU201104-201105

main47821-47080iZVW4#..CBU201105-201805

main47821-47160iZVW4#..CBU201805-202103

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164iZVW4#..CBU201104-202103

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-47080iZVW4#..CBU201105-201805

main47821-47160iZVW4#..CBU201805-202103

main47822-47050iZVW4#..CBU201104-201105

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10576iZVW4#..CBU201104-202103

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-47051iZVW4#..CBU201104-201805

main47814-47160iZVW4#..CBU201805-202103

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-47050iZVW4#..CBU201104-201105

main47830-47080iZVW4#..CBU201105-201805

main47830-47160iZVW4#..CBU201805-202103

47831PISTON, REAR DISC BRAKE

main47831-30310iZVW4#..CBU201104-202103

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-47050iZVW4#..CBU201104-201105

main47850-47080iZVW4#..CBU201105-201805

main47850-47160iZVW4#..CBU201805-202103

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-52190iZVW4#..CBU201805-202103

main47875-33240iZVW4#..CBU201105-201805

16 parts on this diagram · 1 diagram in section
