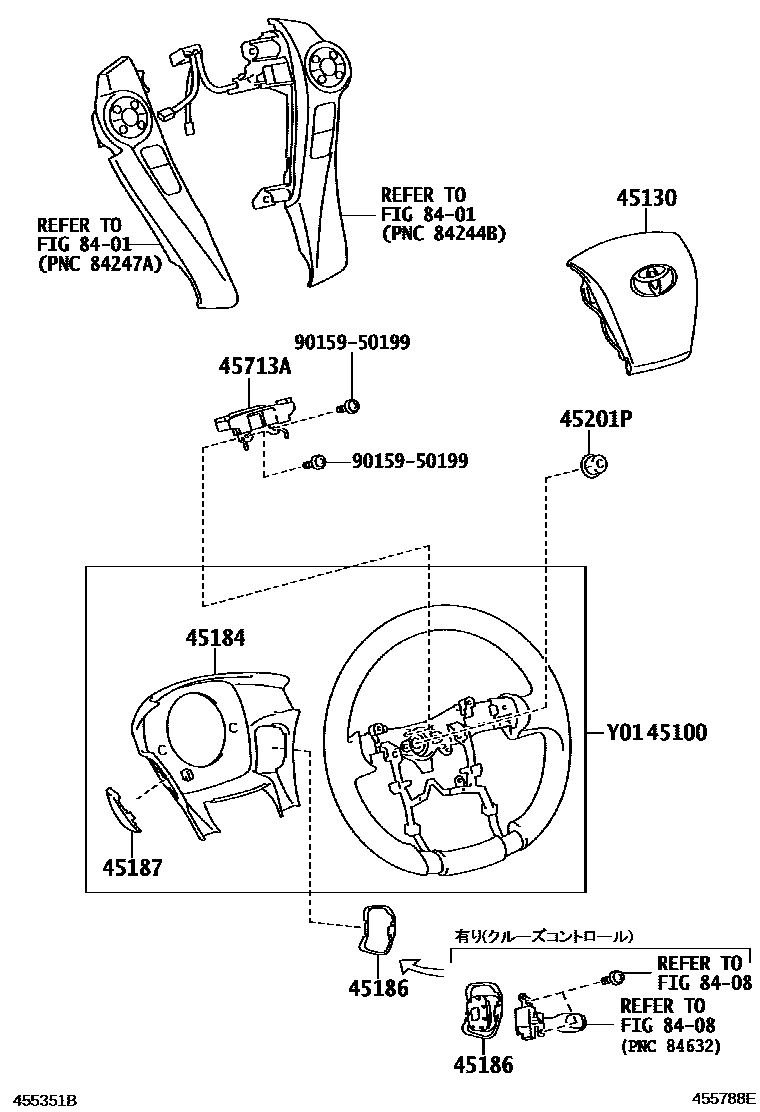

STEERING WHEEL

0001 14������� 0002 13�������

45100WHEEL ASSY, STEERING

main45100-47120-C0iZVW4#..S..CBU201104-201411

main45100-47130-C0iZVW4#..G; ZVW4#..S..CBU201104-201310

main45100-47210-C0supersedes 45100-47120-C0iZVW4#..G; ZVW4#..S..CBU201411-202103

main45100-47180-C0iZVW4#..S..CBU201605-202103

main45100-47200-C0iZVW4#..G201308-201310

main45100-47220-C0iZVW4#..G201310-201411

main45100-48650-C3iZVW4#..S..CBU201712-202103

main45100-WY080-C0iZVW4#..S..CBU201502-201712

45130BUTTON ASSY, HORN

main45130-47120-C0iZVW4#..CBU201104-201411

BLACK,TRIM1#,2#,6#

main45130-48300-C0iZVW4#..S..CBU201712-201909

main45130-48301-C0iZVW4#..S..CBU201910-202103

main45130-WY020-C0iZVW4#..S..CBU201502-201712

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-47010-C0iZVW4#..CBU; ZVW4#..S..CBU201104-201411

main45184-48120-C0iZVW4#..S..CBU201712-202103

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-47020-C0iZVW4#..S..CBU201104-201411

BLACK,TRIM1#,2#,6#

main45186-47030-C0iZVW4#..S..CBU201712-202103

BLACK,TRIM2#,4#

main45186-48080-C0iZVW4#..S..CBU201712-202103

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-47010-C0iZVW4#..CBU; ZVW4#..S..CBU201104-201411

main45187-48060-C0iZVW4#..S..CBU201712-202103

45201PNUT, STEERING WHEEL SET

main90179-12071iZVW4#..CBU201104-201411

45713ADAMPER, STEERING SHAKE

main45713-47030iZVW4#..CBU201104-201411

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9015950199

main90159-50199

10 parts on this diagram · 2 diagrams in section
