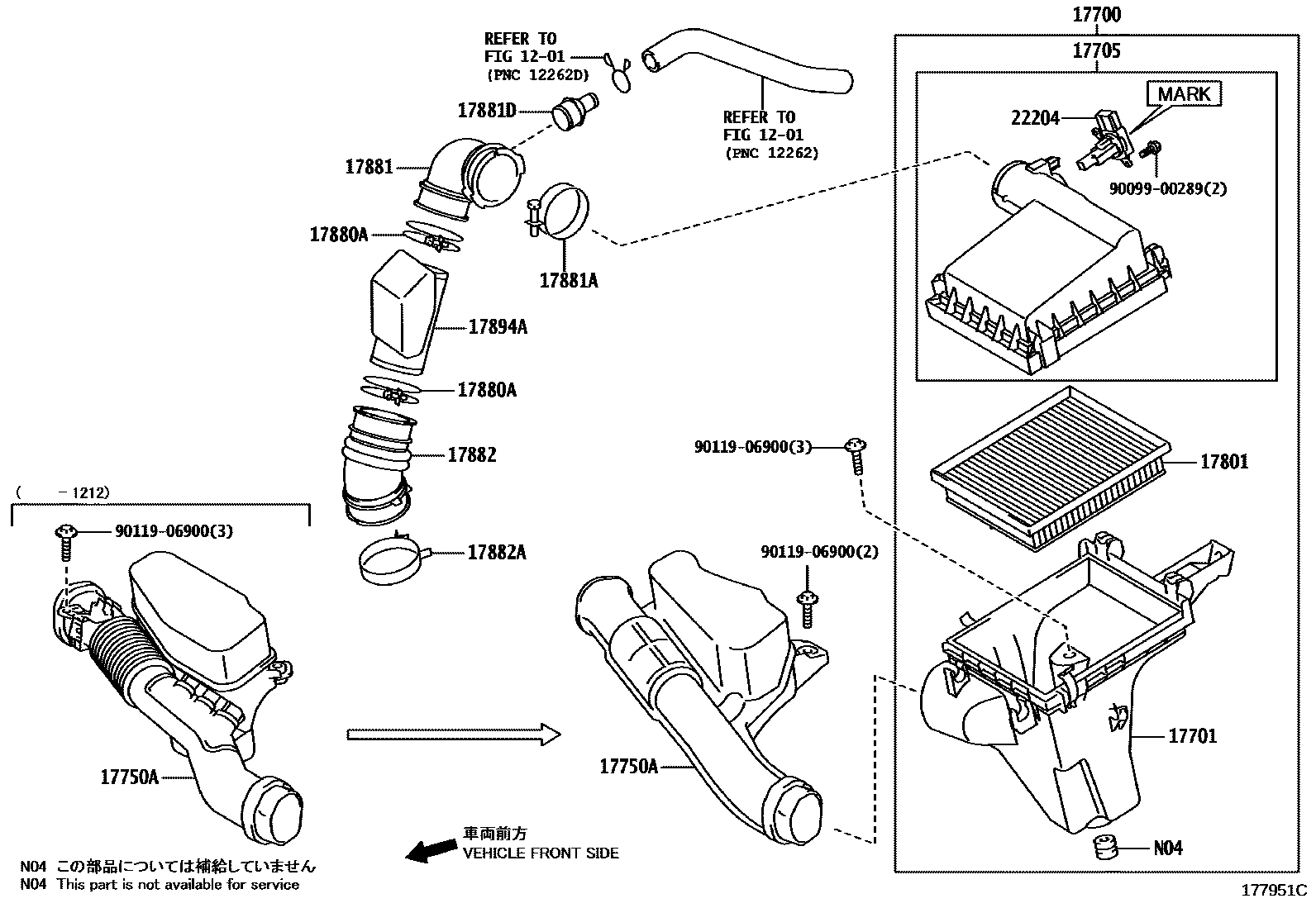

AIR CLEANER

1201VENTILATION HOSE

→ Go to FIG 12-01

17700CLEANER ASSY, AIR

main17700-37251i2ZRFXE..ZVW4#..CBU201104-201107

main17700-37252i2ZRFXE..ZVW4#..CBU201107-201411

17701CASE SUB-ASSY, AIR CLEANER

main17701-37170i2ZRFXE..ZVW4#..CBU201104-201411

17705CAP SUB-ASSY, AIR CLEANER

main17705-37121i2ZRFXE..ZVW4#..CBU201104-201411

17750AINLET ASSY, AIR CLEANER

main17750-37010i2ZRFXE..ZVW4#..CBU201104-201212

main17750-37070i2ZRFXE..ZVW4#..CBU201212-201411

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-37020i2ZRFXE..ZVW4#..CBU201104-201107

main17801-37021i2ZRFXE..ZVW4#..CBU201107-201411

17880ACLAMP, HOSE

main96111-10750×2i2ZRFXE..ZVW4#..CBU201104-201411

17881HOSE, AIR CLEANER, NO.1

main17881-37120i2ZRFXE..ZVW4#..CBU201104-201411

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10650i2ZRFXE..ZVW4#..CBU201104-201411

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main90904-06008i2ZRFXE..ZVW4#..CBU201104-201411

17882HOSE, AIR CLEANER, NO.2

main17882-37040i2ZRFXE..ZVW4#..CBU201104-201411

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i2ZRFXE..ZVW4#..CBU201104-201411

17894ARESONATOR, INTAKE AIR, NO.2

main17894-37010i2ZRFXE..ZVW4#..CBU201104-201411

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i2ZRFXE..ZVW4#..CBU201104-201411

main22204-0V010i2ZRFXE..ZVW4#..CBU201411-202103

main22204-0V020i2ZRFXE..ZVW4#..CBU201104-201411

main22204-28010i2ZRFXE..ZVW4#..CBU201104-201411

9009900289

main90099-00289

9011906900

main90119-06900

16 parts on this diagram · 1 diagram in section
