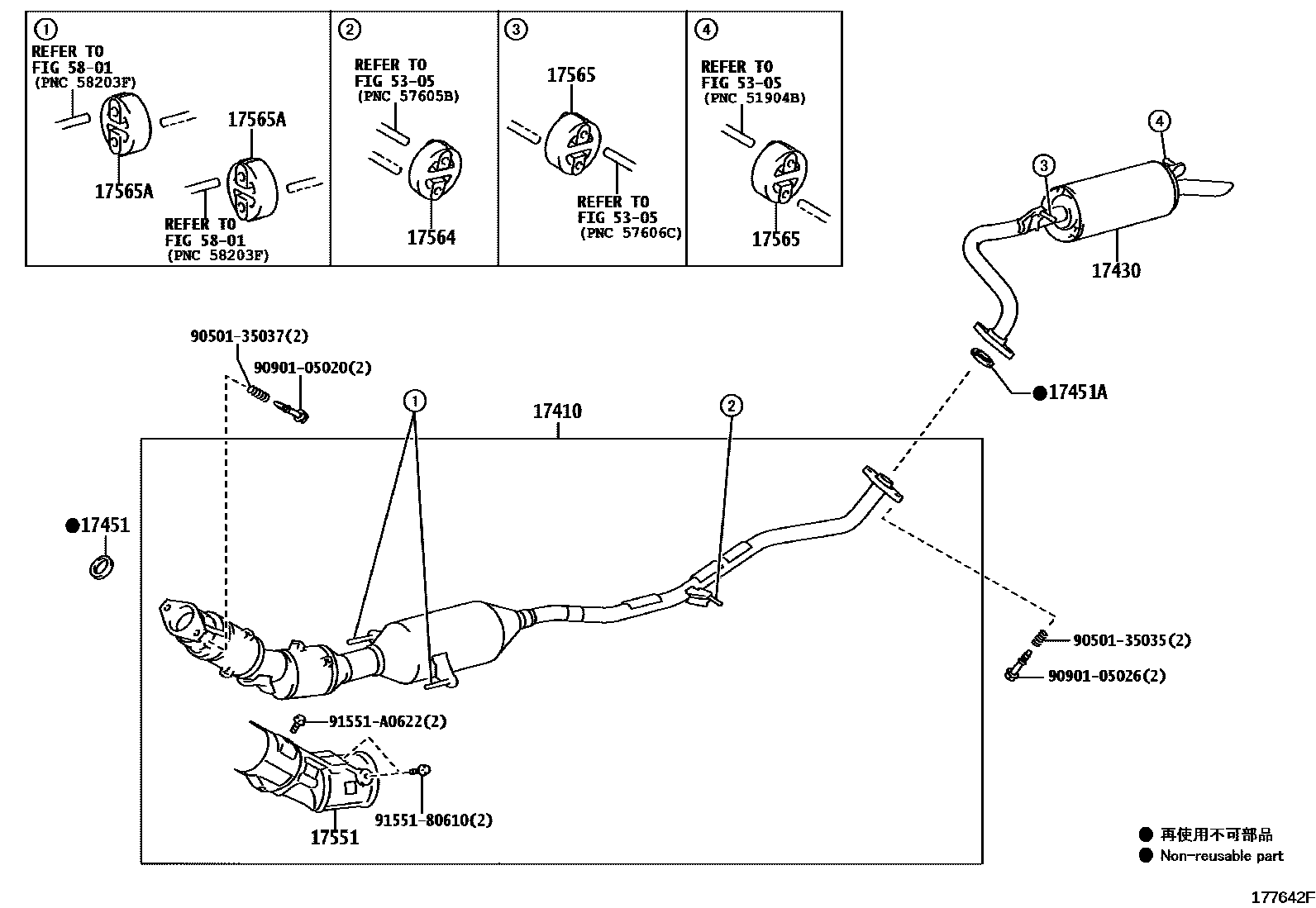

EXHAUST PIPE

0001 1 0002 1�������� 0003 1�������� 0004 1G'S

17410PIPE ASSY, EXHAUST, FRONT

main17410-37560i2ZRFXE..ZVW4#..CBU201104-201112

main17410-37561supersedes 17410-37582i2ZRFXE..ZVW4#..CBU201201-201303

main17410-37562supersedes 17410-37582i2ZRFXE..ZVW4#..CBU201304-201402

main17410-37640supersedes 17410-37582i2ZRFXE..ZVW4#..CBU201402-201409

main17410-37641supersedes 17410-37582i2ZRFXE..ZVW4#..CBU201410-201411

17430PIPE ASSY, EXHAUST, TAIL

main17430-37480i2ZRFXE..ZVW4#..CBU201104-201411

main17430-WY090i2ZRFXE..ZVW4#..S..CBU201502-202103

17451GASKET, EXHAUST PIPE

main17451-28040i2ZRFXE..ZVW4#..CBU201104-201411

17451AGASKET, EXHAUST PIPE, NO.2

main17451-23042i2ZRFXE..ZVW4#..CBU201104-201411

17551INSULATOR, EXHAUST PIPE HEAT, NO.1

main17055-37010supersedes 17551-37050i2ZRFXE..ZVW4#..CBU201104-201411

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-22030i2ZRFXE..ZVW4#..CBU201104-201411

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22040×2i2ZRFXE..ZVW4#..CBU201104-201411

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010×2i2ZRFXE..ZVW4#..CBU201104-201411

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9155180610

main91551-80610

91551A0622

main91551-A0622

16 parts on this diagram · 4 diagrams in section
