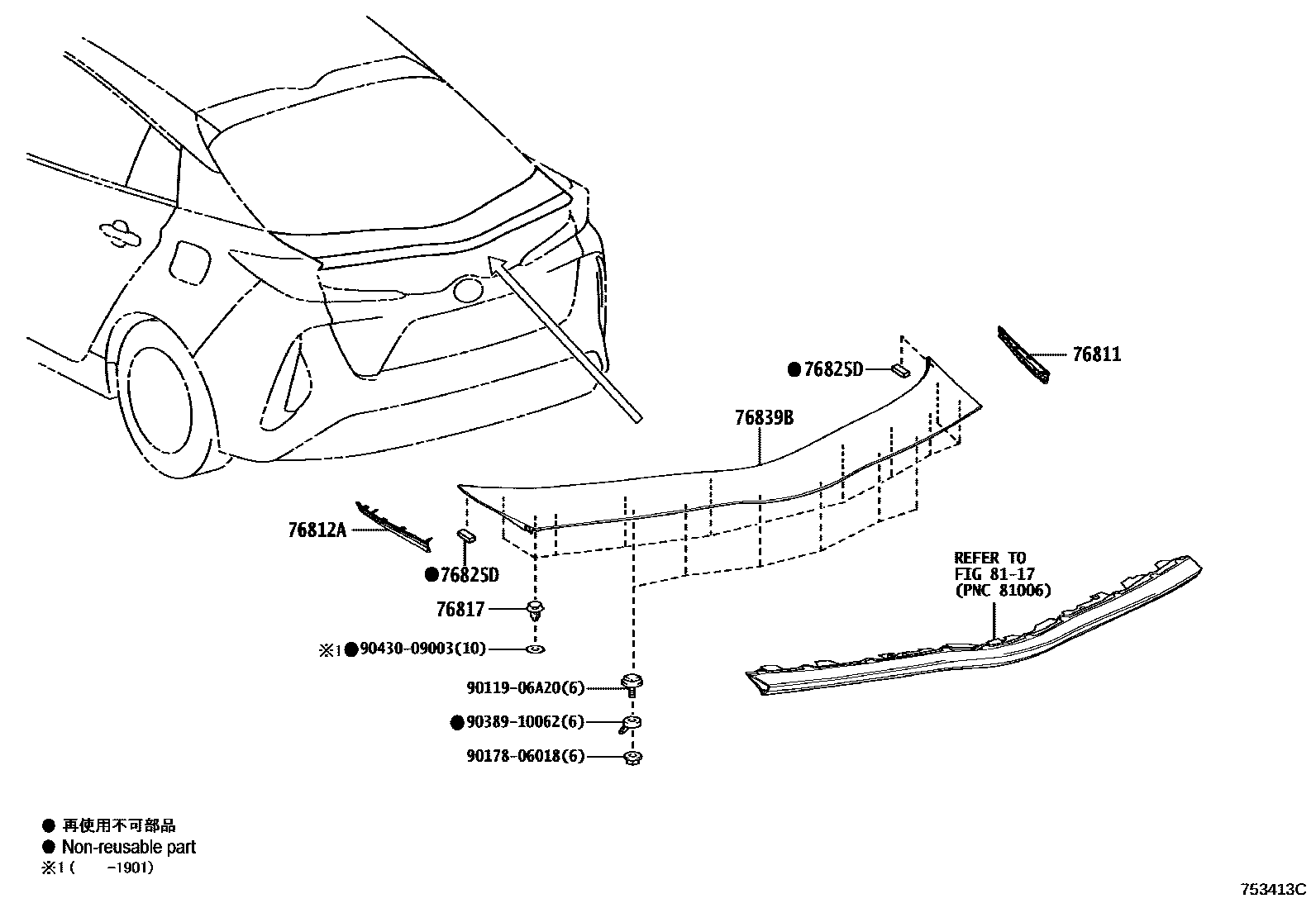

REAR MOULDING

76811GARNISH, BACK DOOR, OUTSIDE

main76811-47140iZVW52..CBU201609-201904

76812AGARNISH, BACK DOOR, OUTSIDE NO.2

main76812-47070iZVW52..CBU201609-201904

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90467-09240×10iZVW52..CBU201609-201901

main90467-09243×10iZVW52..CBU201902-201904

76825DPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1

main76825-47030×2iZVW52..CBU201609-201904

76839BCOVER, BACK DOOR GARNISH

main76839-47020-A0iZVW52..CBU201905

SUPER WHITE 2,040

main76839-47020-A1iZVW52..CBU201609-201904

WHITE PEARL CS.,070

main76839-47020-A2iZVW52..CBU202007

PLATINUM WHITE PEARL MC.,089

main76839-47020-B0iZVW52..CBU201905

SILVER ME.,1F7

main76839-47020-B1iZVW52..CBU201609-201904

GRAY ME.,1G3

main76839-47020-C0iZVW52..CBU201609-201904

ATTITUDE BLACK MC.,218

main76839-47020-D0iZVW52..CBU201609-201904

EMOTIONAL RED,3T7

main76839-47020-D1iZVW52..CBU201905

EMOTIONAL RED 2,3U5

main76839-47020-E0iZVW52..CBU201905-202208

STEEL BLONDE ME.,4X1

main76839-47020-G0iZVW52..CBU201609-201901

THERMO-TECT LIME GREEN,6W7

main76839-47020-H0iZVW52..CBU201609-201904

SPIRITED AQUA ME.,791

main76839-47020-J0iZVW52..CBU201905-202106

DK. BLUE MC.,8X8

8117CENTER STOP LAMP

→ Go to FIG 81-17

9011906A20

main90119-06A20

9017806018

main90178-06018

9038910062

main90389-10062

9043009003

main90430-09003

10 parts on this diagram · 1 diagram in section
