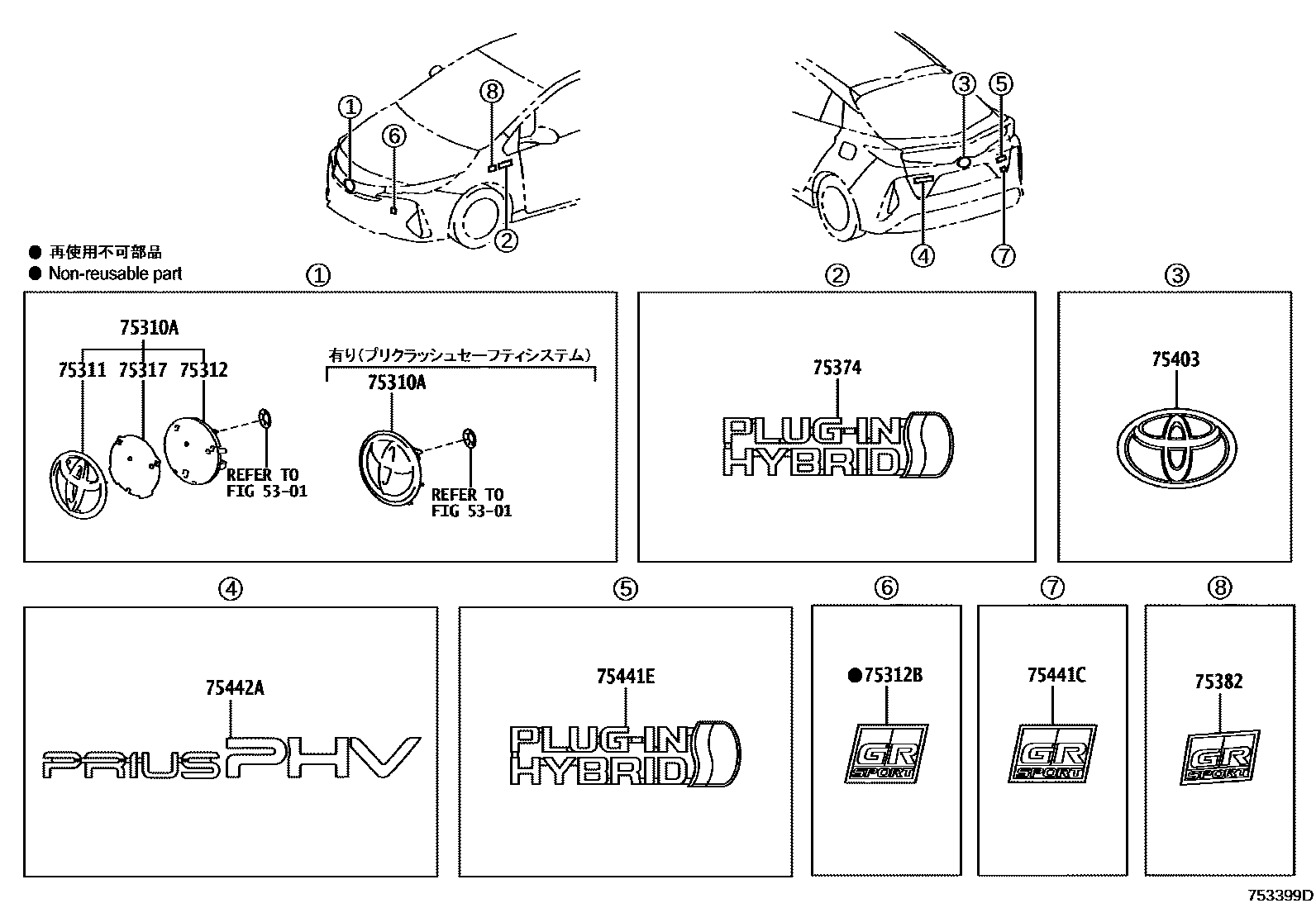

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

5301RADIATOR GRILLE

→ Go to FIG 53-01

75310AEMBLEM ASSY, RADIATOR GRILLE

main53141-47030iZVW52..CBU201905-202103

main53141-47031iZVW52..CBU202104

main53141-33130iZVW52..S..CBU202106

main75310-47060iZVW52..S..CBU201609-201904

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main90975-02174iZVW52..S..CBU201609-201904

75312BASE, RADIATOR GRILLE EMBLEM

main75311-47020iZVW52..S..CBU201609-201801

75312BEMBLEM, RADIATOR GRILLE, NO.2

main75310-47100iZVW52..S..CBU201710-201904

75317PLATE, RADIATOR GRILLE ORNAMENT

main75317-47010iZVW52..S..CBU201609-201801

75374EMBLEM, SIDE PANEL

main75374-47130iZVW52..CBU201609-201904

main75374-47190iZVW52..CBU201609-201904

75382EMBLEM, QUARTER PANEL OR SIDE PANEL

main75374-47210iZVW52..S..CBU201710-201904

main75374-47220iZVW52..S..CBU201905-202106

75403ORNAMENT SUB-ASSY, BACK DOOR

main75403-12040iZVW52..CBU201609-201904

main90975-02148iZVW52..S..CBU201905-202106

75441CPLATE, BACK DOOR NAME

main75441-47180iZVW52..S..CBU201710-201904

75441EPLATE, BACK DOOR NAME, NO.1

main75441-47140iZVW52..CBU201609-201904

75442APLATE, BACK DOOR NAME, NO.2

main75442-47170iZVW52..CBU201609-201904

12 parts on this diagram · 1 diagram in section
