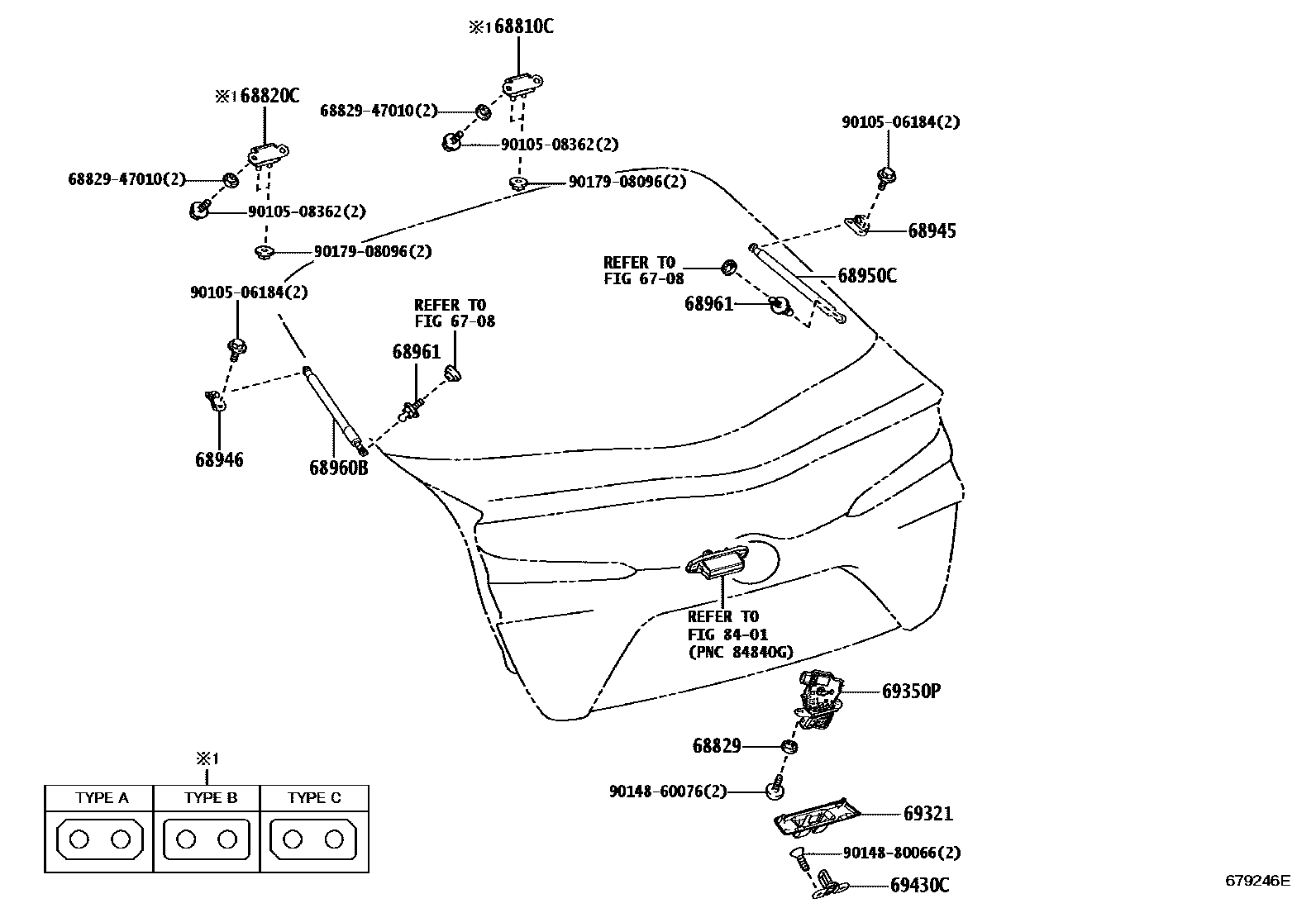

BACK DOOR LOCK & HANDLE

6708BACK DOOR PANEL & GLASS

→ Go to FIG 67-08

68810CHINGE ASSY, BACK DOOR, RH

main68810-47090iZVW52..CBU201905

main68810-47100iZVW52..CBU201609-201904

main68810-47110iZVW52..CBU201905

68820CHINGE ASSY, BACK DOOR, LH

main68810-47090iZVW52..CBU201905

main68810-47100iZVW52..CBU201609-201904

main68810-47110iZVW52..CBU201905

68829COLLAR, BACK DOOR HINGE

main68829-47020×2iZVW52..CBU201905

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-52110iZVW52..CBU201905

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-52110iZVW52..CBU201609-201904

68950CSTAY ASSY, BACK DOOR, RH

main68950-0WB10iZVW52..CBU201609-201904

68960BSTAY ASSY, BACK DOOR, LH

main68960-0WB10iZVW52..CBU201609-201904

68961BOLT, BACK DOOR STAY

main68961-13030×2iZVW52..CBU201609-201904

69321COVER, BACK DOOR LOCK

main69321-47020iZVW52..CBU201609-201904

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-47060iZVW52..CBU201609-201904

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-52050iZVW52..CBU201609-201904

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

6882947010COLLAR, BACK DOOR HINGE

main68829-47010

9010506184

main90105-06184

9010508362

main90105-08362

9014860076

main90148-60076

9014880066

main90148-80066

9017908096

main90179-08096

19 parts on this diagram · 1 diagram in section
