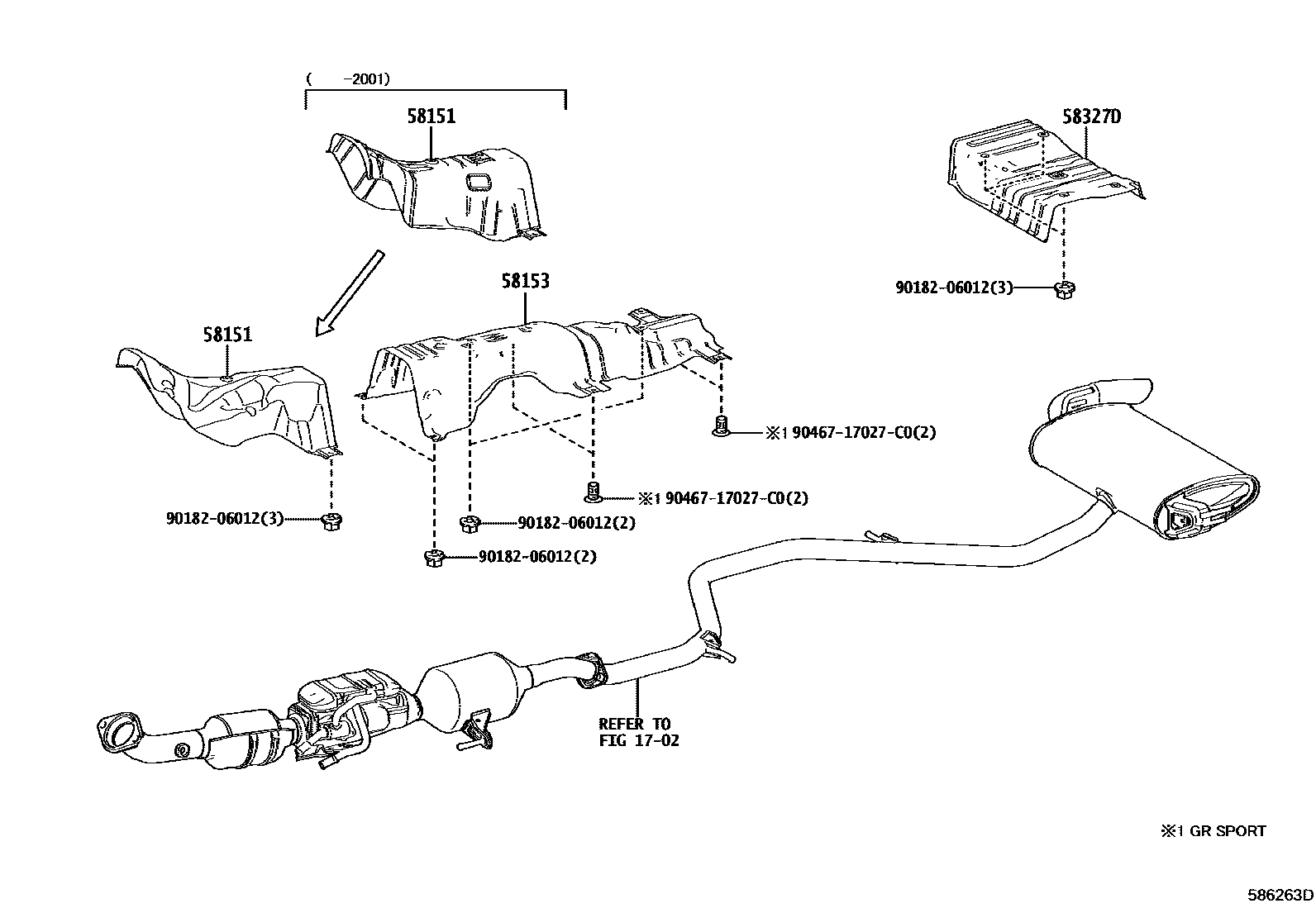

FLOOR INSULATOR

1702EXHAUST PIPE

→ Go to FIG 17-02

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-47060iZVW52..CBU201609-201904

main58151-47070iZVW52..CBU202002

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-47050iZVW52..CBU201609-201904

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-47040iZVW52..CBU201609-201904

9018206012

main90182-06012

9046717027C0

main90467-17027C0

6 parts on this diagram · 1 diagram in section
