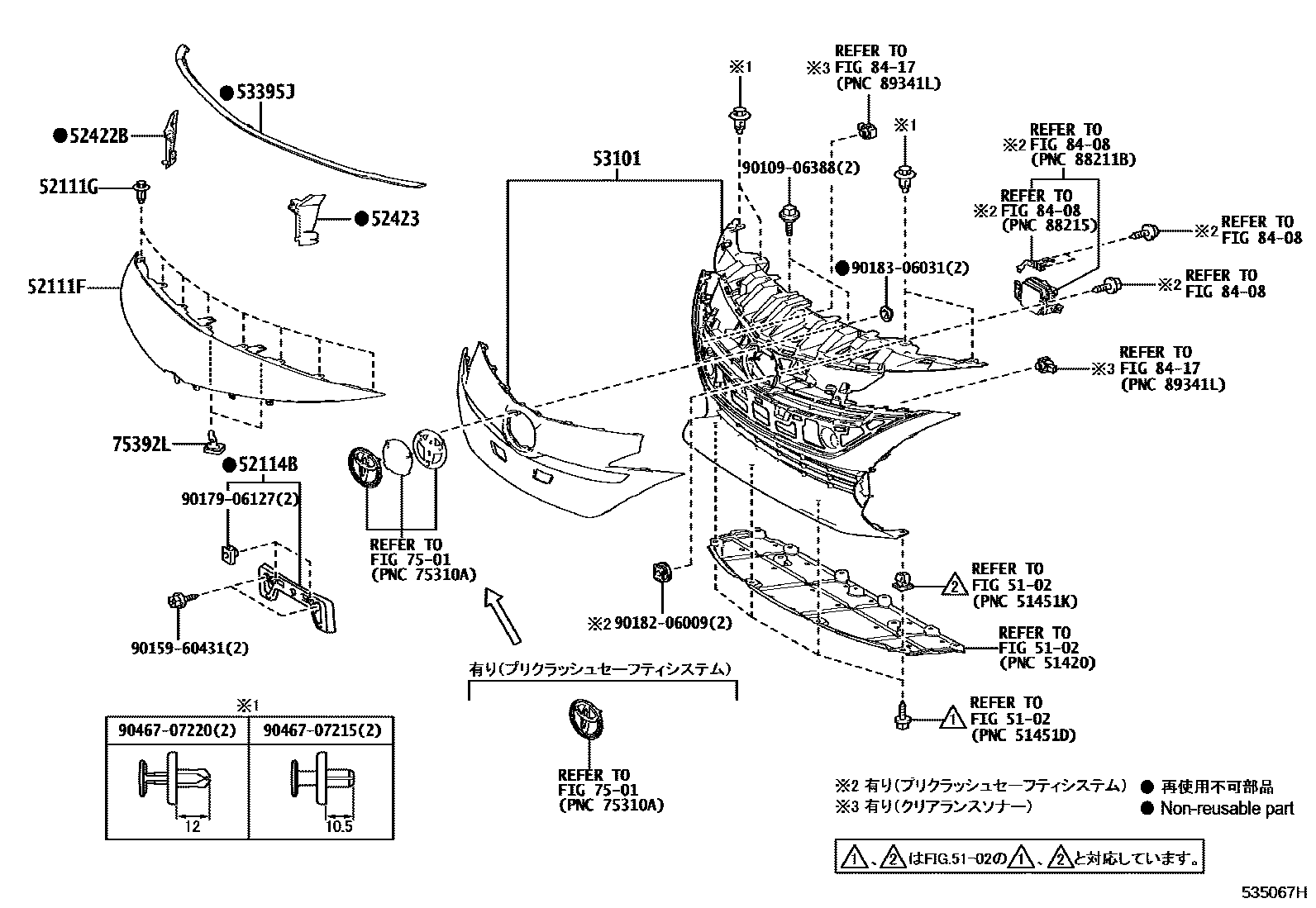

RADIATOR GRILLE

0001 1 0002 1 0003 1 0004 1GR SPORT

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52111FBAR, FRONT BUMPER, CENTER

main52111-47010-A0iZVW52..CBU201609-201904

SUPER WHITE 2,040

main52111-47010-A1iZVW52..CBU201609-201904

WHITE PEARL CS.,070

main52111-47010-A2iZVW52..CBU202007

PLATINUM WHITE PEARL MC.,089

main52111-47010-B0iZVW52..CBU201609-201904

SILVER ME.,1F7

main52111-47010-B1iZVW52..CBU201609-201904

GRAY ME.,1G3

main52111-47010-C0iZVW52..CBU201905

ATTITUDE BLACK MC.,218

main52111-47010-D0iZVW52..CBU201609-201904

EMOTIONAL RED,3T7

main52111-47010-D1iZVW52..CBU201905

EMOTIONAL RED 2,3U5

main52111-47010-E0iZVW52..CBU201609-201904

STEEL BLONDE,4X1

main52111-47010-G0iZVW52..CBU201609-201901

THERMO-TECT LIME GREEN,6W7

main52111-47010-H0iZVW52..CBU201905

SPIRITED AQUA ME.,791

main52111-47010-J0iZVW52..CBU201905-202106

DK. BLUE MC.,8X8

main00000-00000iZVW52..S..CBU202007-202106

52111GCLIP, FRONT BUMPER BAR

main90467-05063-C0×8iZVW52..CBU201905

BLACK

main00000-00000iZVW52..S..CBU201905-202007

52114BBRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-47200iZVW52..CBU201609-201904

main00000-00000iZVW52..S..CBU201905-202007

52422BPAD, FRONT BUMPER, RH

main52422-47010iZVW52..CBU201609-201904

main52422-47020iZVW52..S..CBU201905-202007

52423PAD, FRONT BUMPER, LH

main52423-47010iZVW52..CBU201905

main52423-47020iZVW52..S..CBU201905-202007

53101GRILLE SUB-ASSY, RADIATOR

main53101-47050iZVW52..S..CBU201801-201807

main53101-47051supersedes 53101-47041iZVW52..A,PREM; ZVW52..S..CBU201905-201908

main53101-47052supersedes 53101-47041iZVW52..A,PREM; ZVW52..S..CBU201908-202007

main53101-47060supersedes 53101-47041iZVW52..S..CBU201905-202007

main53101-47070supersedes 53101-47051iZVW52..A,PREM; ZVW52..S..CBU201905-201908

main53101-47071supersedes 53101-47041iZVW52..A,PREM; ZVW52..S..CBU201908-202007

main53101-47090iZVW52..S..CBU201801-201904

main53101-47140iZVW52..S..CBU202007-202106

main53101-47180iZVW52..A,PREM; ZVW52..CBU; ZVW52..S..CBU202007

53395JSEAL, HOOD TO FRONT END PANEL

main53395-47050iZVW52..CBU201609-201904

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

75392LRETAINER, OUTSIDE MOULDING

main75392-35220×2iZVW52..CBU201905

main00000-00000iZVW52..S..CBU201801-201904

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

9010906388

main90109-06388

9015960431

main90159-60431

9017906127

main90179-06127

9018206009

main90182-06009

9018306031

main90183-06031

9046707215

main90467-07215

9046707220

main90467-07220

19 parts on this diagram · 4 diagrams in section
